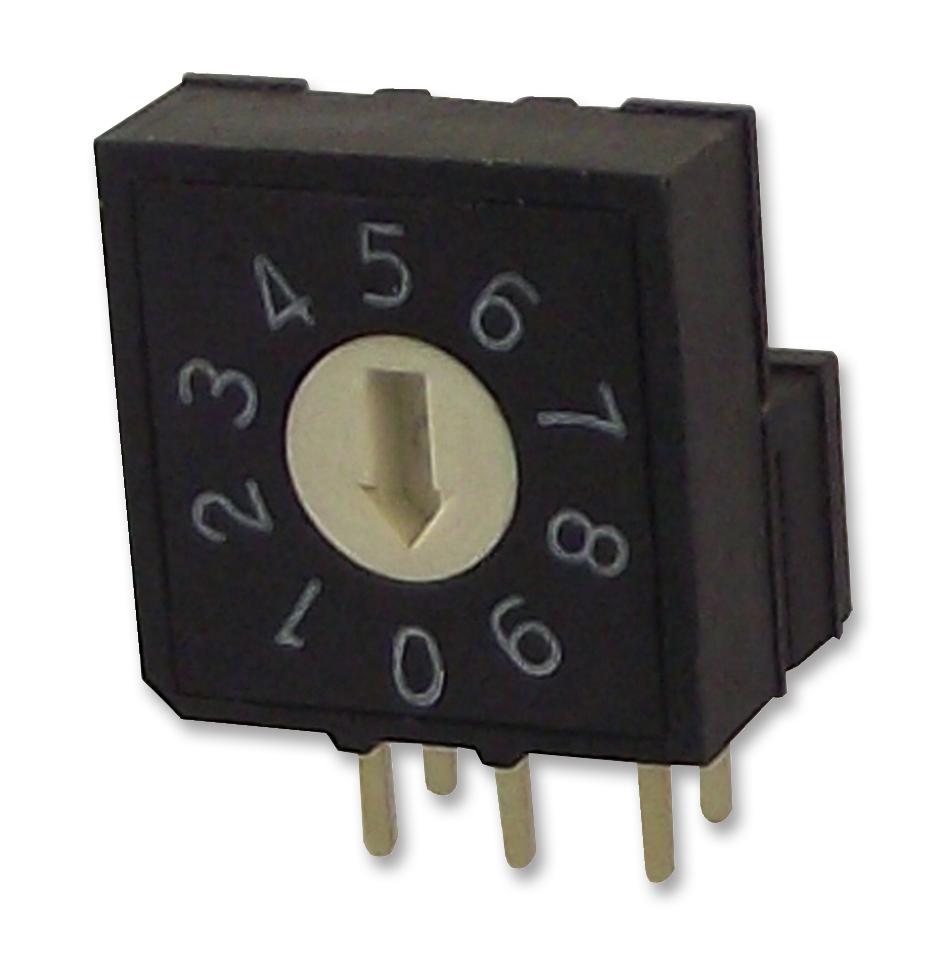

MULTICOMP-PRO MCRV3AF10RVB Rotary Switch
The MCRV3AF10RVB is a rotary switch designed for precise control applications with 10 positions in a compact 10x10 mm size. It features a robust construction with a high-temperature thermoplastic base and cover, gold-plated contacts with nickel over alloy copper, and is RoHS compliant. The switch supports up to 20,000 mechanical cycles, operating within -25°C to +80°C, and meets specific electrical ratings including 100mA at 50V DC. It is suitable for various industrial control and electronic projects requiring reliable switching performance.
MULTICOMP-PRO MCRV3AF10RVB Rotary Switch Specifications:
- Mechanical Base & Cover: UL94V-0 High-temp Thermoplastic
- Mechanical Life: 20,000 steps
- Color: Black base, White actuator
- Operating Temperature: -25°C to +80°C
- Contact Material: Alloy Copper with Gold Plated over Nickel
- Terminal Material: Brass with Gold Plated
- Electrical Life: 20,000 cycles
- Non-Switching Rating: 100mA, 50V DC
- Switching Rating: 24V DC, 25mA
- Contact Resistance: <100mQ initial, <200mQ final
- Insulation Resistance: >100MQ at 250V DC
- Voltage Proof: 250V AC for 1min
- Dimensions: 10x10mm, general tolerance 0.2mm
Buy the Buy Elementt4 Rotary Switch Part Number MCRV3AF10RVB Online
Order the Elementt4 MCRV3AF10RVB rotary switch today for your control panel or electronic project. With 10 positions, durable high-temperature thermoplastic construction, and gold-plated contacts, this switch offers reliable performance over 20,000 cycles. Its operating temperature range from -25°C to +80°C ensures versatility across various environments. The switch’s compact 10x10 mm size makes it ideal for space-constrained applications. Experience durability, precise control, and quality with this high-performance rotary switch—order now online for fast delivery and excellent support.
Get Elementt4 MCRV3AF10RVB today—robust rotary switch designed for reliable control and long-lasting durability.
