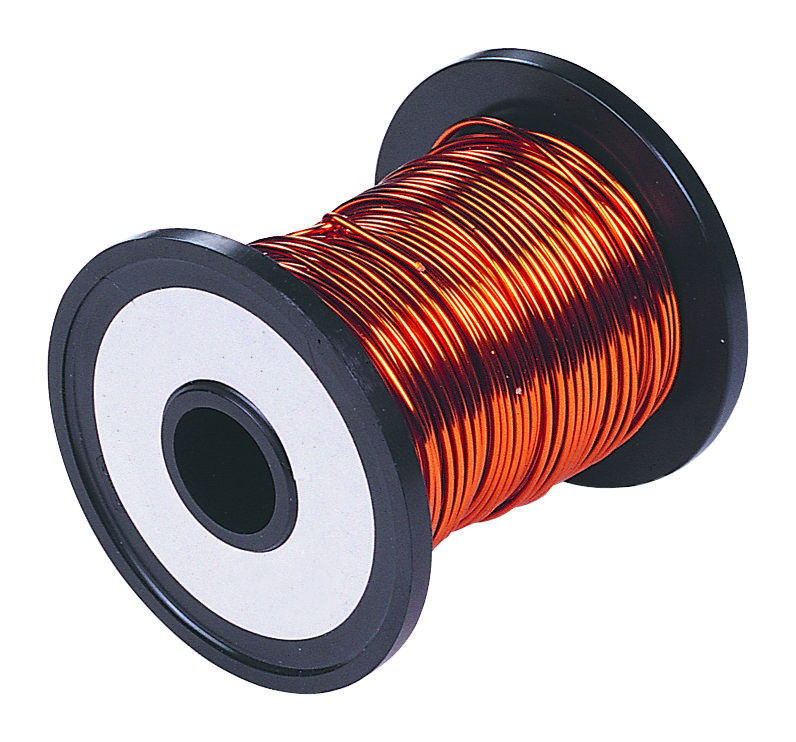

MULTICOMP PRO ECW056 Enamelled Copper Wire
Enamelled Copper Wire is ideal for small motor, transformer, relay, and magnet coil manufacturing. It features polyurethane insulation with a 0.07mm to 1.6mm diameter range, suitable for automated soldering. Compliant with IEC 60317-0-1:2014, IEC 60317-51, and NEMA MW 82-C standards, its mechanical properties include 30% elongation, excellent adhesion, flexibility, and resistance to abrasion. Electrical breakdown voltage is 7kV with thermal tolerance up to 2180°C. Made of annealed copper, it offers high electrical resistivity and low temperature coefficient, ensuring reliable performance in electrical applications.
MULTICOMP PRO ECW056 Enamelled Copper Wire Specifications:
- Insulation Coatings: Polyurethane 180
- Diameter Range: 0.07mm to 1.6mm
- Mechanical Properties: >30% elongation, excellent adherence, flexibility, abrasion resistance
- Electrical Properties: 7kV breakdown voltage, electrical resistivity @ 20°C: 0.0172410mm7/m
- Thermal Properties: Temperature Index 2180°C, heat shock 2 min at 230°C, cut through 21d at 200°C
- Chemical Properties: Pass solvent test, solderable, resistant to refrigerants
- Bare Conductor: Copper in annealed condition
- Specific Weight: 8.89 g/cm³
- Ultimate Tensile Strength: 22-30 kg/mm²
- Primary Insulation Colour: Transparent / Natural
- CSA AWG: 20 to 16 AWG
- Reel Weight: 1,850 to 47 grams depending on gauge
Buy the Buy multicomp Series ECW056 Part Number ECW056 Online
Enhance your electrical projects by ordering multicomp enamelled copper wire online. Perfect for small motors, transformers, and relays, it offers excellent insulation, mechanical durability, and complies with international IEC standards. With a variety of gauges, high electrical resistivity, and thermal stability, this wire guarantees dependable operation. Available with a 12-month warranty, it ensures quality and reliability. Purchase now from trusted online distributors for fast delivery and competitive pricing, and elevate your production with proven electrical wiring solutions.
Order your multicomp ECW056 enamelled copper wire today and ensure reliable performance for your small motor and transformer projects.
