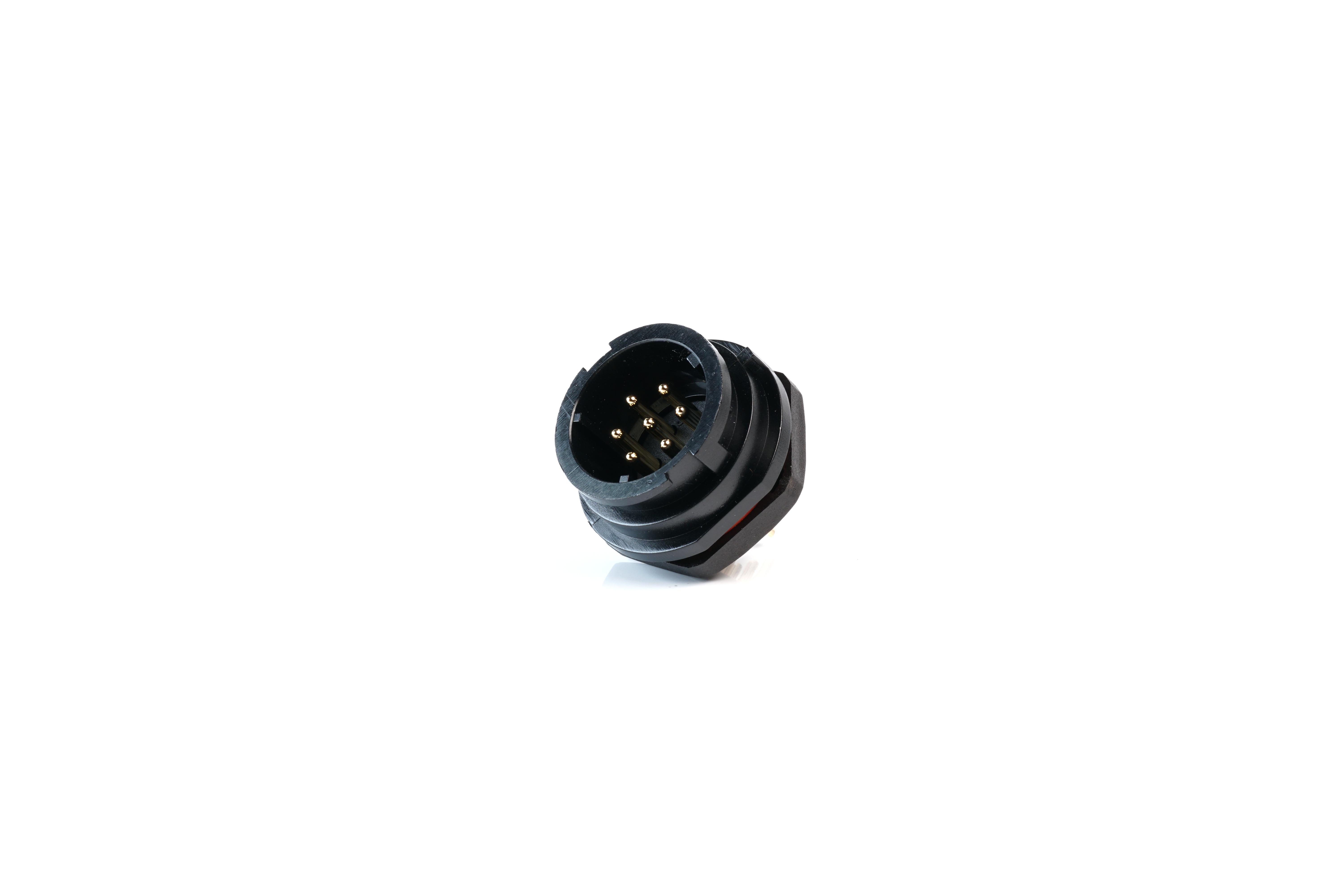

MULTICOMP-PRO MP002716 Industrial Circular Connector
The MP-T21 IP67 series connectors provide rugged, weatherproof solutions with quick bayonet coupling for secure, easy connections in industrial, automation, and outdoor environments. Designed to accommodate multiple pole configurations ranging from 2 to 12 poles, these connectors feature both solder and screw termination options, making them versatile for various wiring needs. Constructed with durable Nylon66 shells, gold-plated brass contacts, and PPS inserts rated up to 260°C, they ensure excellent performance and resistance against harsh conditions. Suitable for process control, automation, medical, security, and measurement applications, offering reliable, IP67-rated connectivity.
MULTICOMP-PRO MP002716 Industrial Circular Connector Specifications:
- Shell Material: Nylon66 with fire resistance V-0
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Coupling: Bayonet
- Termination: Solder and Screw
- Rated Current: Up to 30A
- Rated Voltage: Up to 500V
- Mating Cycle: 500
- Temperature Range: -40°C to +80°C
- Insulation Resistance: 2000 MΩ
- Contact Resistance: 1-5 mΩ depending on contact
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Cable Outer Diameter Range: up to 12 mm
- Suitable for outdoor and industrial environments
- Compliance: RoHS
- Additional features: Rubber rings, panel, and cable mount options.
Buy the Buy multicomp IP67 Connectors Part Number MP002716 Online
Enhance your automation and control systems with the durable IP67 circular connectors from multicomp. Featuring quick bayonet coupling, versatile configurations from 2 to 12 poles, and both solder and screw terminations, these connectors ensure reliable, waterproof connections in harsh outdoor and industrial conditions. Constructed with high-quality Nylon66 shells, gold-plated brass contacts, and rated for temperatures up to 260°C, they offer excellent durability and resistance. Ideal for medical, security, measurement, and industrial automation fields, providing secure, weatherproof connectivity for demanding applications.
Buy multicomp IP67 connectors MP002716 now and experience unmatched reliability and weatherproof performance for your industrial and outdoor applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002716?
You can click on the BUY or RFQ button to purchase MP002716 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002716?
You can download the MP002716 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002716?
MULTICOMP-PRO
