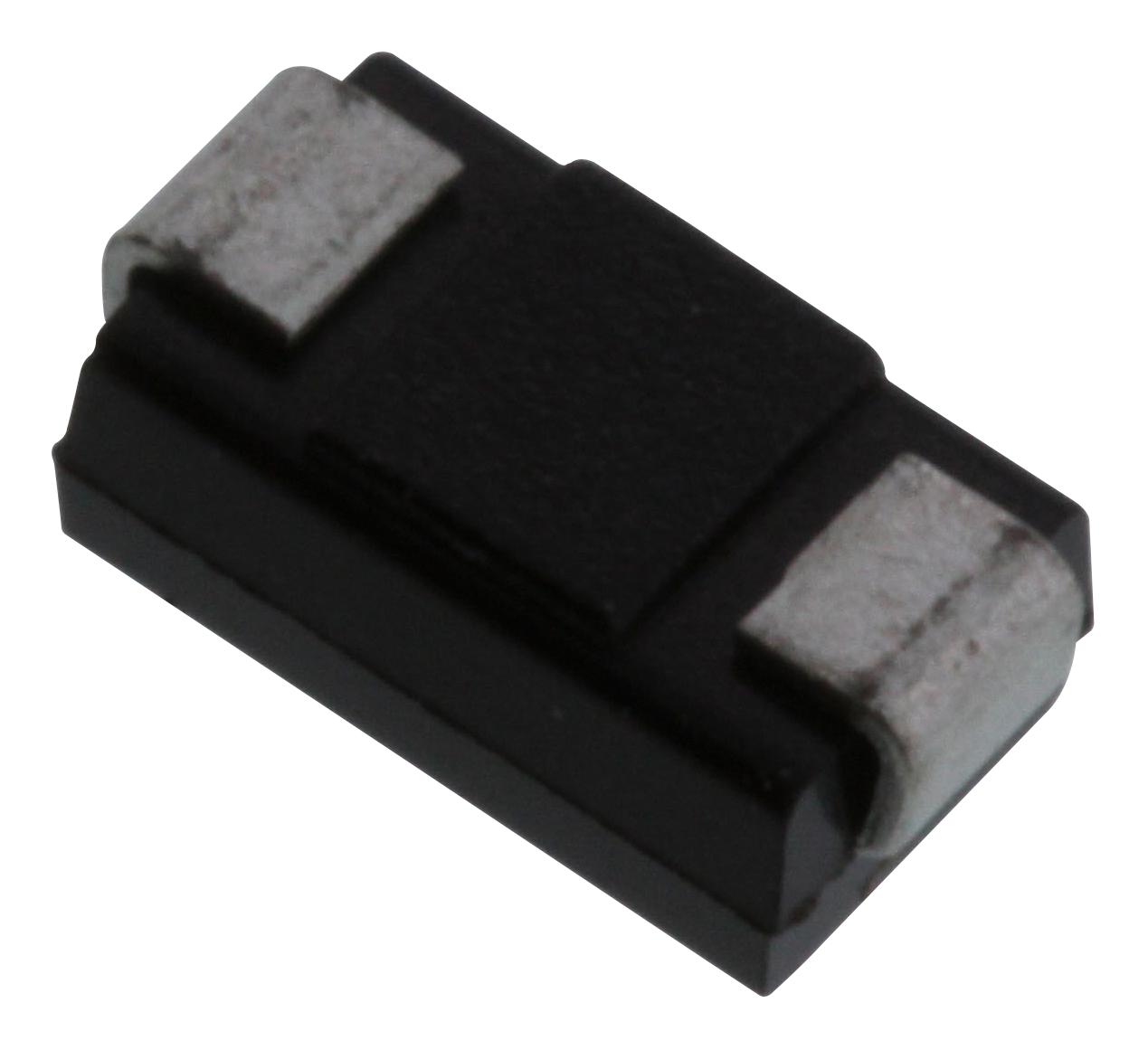

MULTICOMP PRO ES1A Ultra-Fast Diode
The ultra-fast diodes with a glass passivated junction are suitable for surface mounted applications, offering low profile design, built-in strain relief, and high efficiency due to super fast recovery times. They feature pure tin plated, lead-free terminals, operate within a temperature range of -55°C to +150°C, and are compliant with RoHS standards. The diodes, available in 50V, 400V, and 600V ratings, provide high current capacity of 1A, low forward voltage, and low reverse current, ideal for automated manufacturing and high-speed circuits.
MULTICOMP PRO ES1A Ultra-Fast Diode Specifications:
- Maximum Recurrent Peak Reverse Voltage VRRM: 50V / 400V / 600V
- Maximum RMS Voltage Vrms: 35V / 280V / 420V
- Maximum DC Blocking Voltage Voc: 50V / 400V / 600V
- Maximum Average Forward Rectified Current Iav: 1A
- Peak Forward Surge Current (8.3ms): 30A
- Maximum Instantaneous Forward Voltage at 1A Ve: 0.95V / 1.3V / 1.7V
- Maximum Reverse Current @ 25°C Ir: 5μA
- Maximum Reverse Recovery Time TRR: 35ns
- Typical Junction Capacitance Cy: 10pF / 8pF
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Case: Moulded plastic, SMA/DO-214AC
- Terminal Material: Pure tin plated, lead free
- Dimensions: 0.062 in (1.58 mm) height, 0.181 in (4.6 mm) length
- Polarity: Indicated by cathode band
- RoHS Compliant, Glass passivated junction chip
- Built-in strain relief for surface mounting
- Soldering: High temperature soldering at 260°C for 10 seconds
Buy the Nexperia ES1A – Reliable Ultra-Fast Diode for Industrial Applications
Acquire the Nexperia ultra-fast diode online today for your high-speed electronic circuits. Engineered for reliability, it features rapid recovery time, high current capacity, and excellent thermal stability. Perfect for automated surface mount assembly, these diodes ensure efficient performance in power supply, switching applications, and high-frequency circuits. Enjoy fast delivery and competitive prices by purchasing online now, and guarantee the success of your electronic projects with top-quality components designed for durability and precision.
Get Nexperia ES1A ultra-fast diode today—built for precision, high-speed switching, and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ES1A?
You can click on the BUY or RFQ button to purchase ES1A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ES1A?
You can download the ES1A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ES1A?
MULTICOMP PRO
