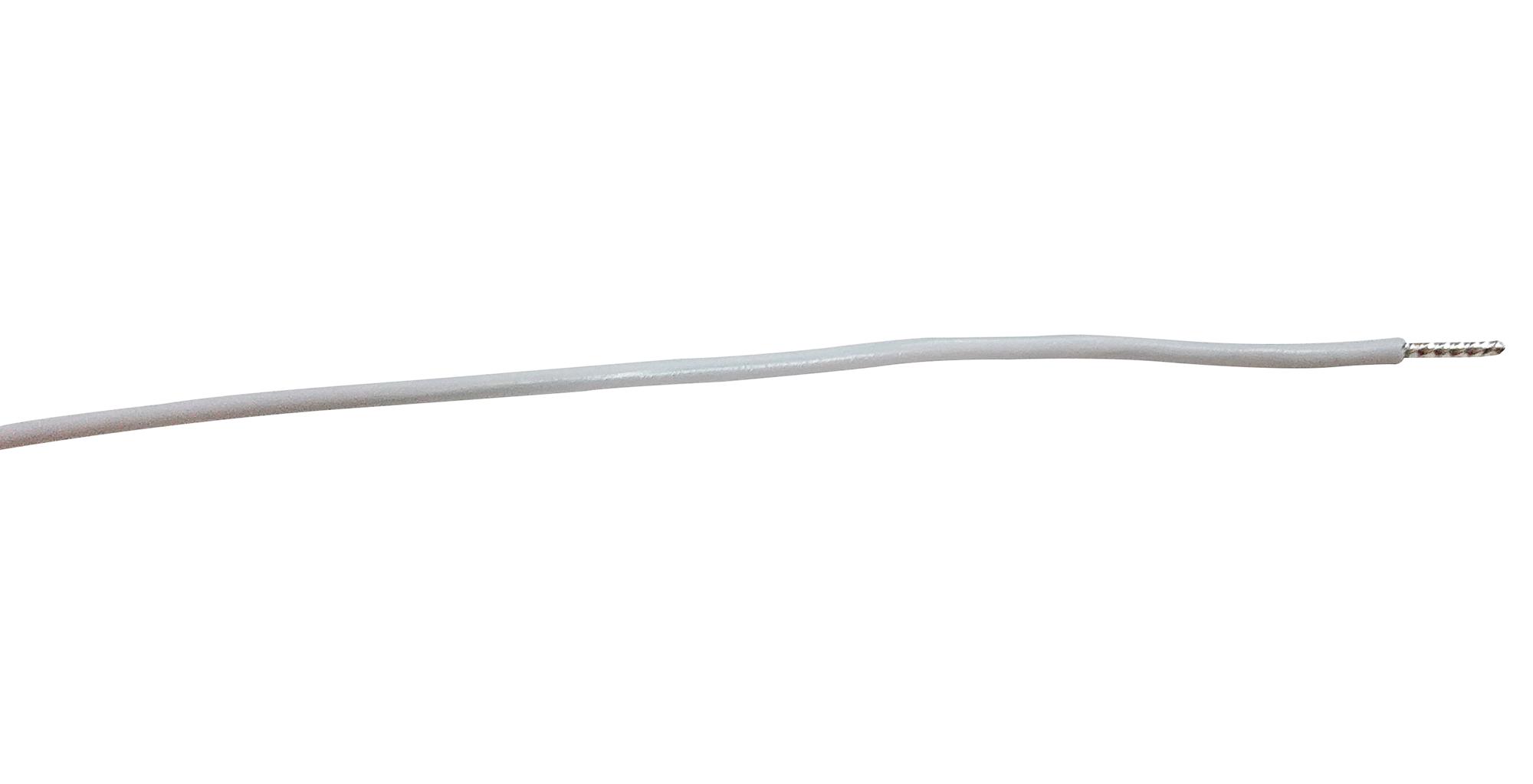

MULTICOMP-PRO PP002563 Hook-Up Wire
This UL1569 style stranded hook-up wire is suitable for various electrical applications, rated at 105°C and 300V. Constructed with stranded tinned copper conductors and insulated with durable PVC, it offers flexibility and reliable performance in industrial and electronic wiring. Available in multiple gauges including 16, 18, 20, 22, 24, 26, 28, and 30 AWG, this wire features color-coded insulation for easy identification. It is supplied on reels of 305 meters or per meter, meeting specific UL standards for safety and quality across different electrical projects.
MULTICOMP-PRO PP002563 Hook-Up Wire Specifications:
- Conductor Material: Stranded Tinned Copper
- Insulator Material: PVC
- Rated Temperature: 105°C
- Rated Voltage: 300V
- Cable Length: 305m reel or per meter
- Gauge Range: 16, 18, 20, 22, 24, 26, 28, 30 AWG
- Conductor Diameter: 1.49 mm (16 AWG), 1.21 mm (18 AWG), 0.95 mm (20 AWG), 0.76 mm (22 AWG), 0.61 mm (24 AWG), 0.49 mm (26 AWG), 0.39 mm (28 AWG), 0.31 mm (30 AWG)
- Number of Strands: 65/0.16, 34/0.18, 21/0.18, 17/0.16, 11/0.16, 7/0.16, 7/0.127, 7/0.10
- Insulation Diameter: Ranges from 0.31 mm to 2.0 mm depending on gauge
- Color Coding: Black, Brown, Red, Yellow, Green/Yellow, Blue, White, Orange, Grey
- Compliance: UL Recognized
Buy the Buy Premier UL1569 Stranded Hook-Up Wire Part Number PP002563 Online
Order Premier UL1569 stranded hook-up wire now to ensure high-quality, flexible wiring for your projects. Made with tinned copper conductors and robust PVC insulation, this wire is rated for 105°C and 300V, available in multiple gauges for diverse applications. Delivered on reels of 305 meters or per meter, it guarantees easy handling and precise installation. Ideal for electronic, industrial, and electrical wiring, this UL-listed wire is your go-to supply for safe and efficient performance. Purchase online now for fast delivery and trusted quality.
Get Premier UL1569 stranded hook-up wire today—crafted with tinned copper conductors and durable PVC insulation for reliable electrical connections.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002563?
You can click on the BUY or RFQ button to purchase PP002563 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002563?
You can download the PP002563 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002563?
MULTICOMP-PRO
