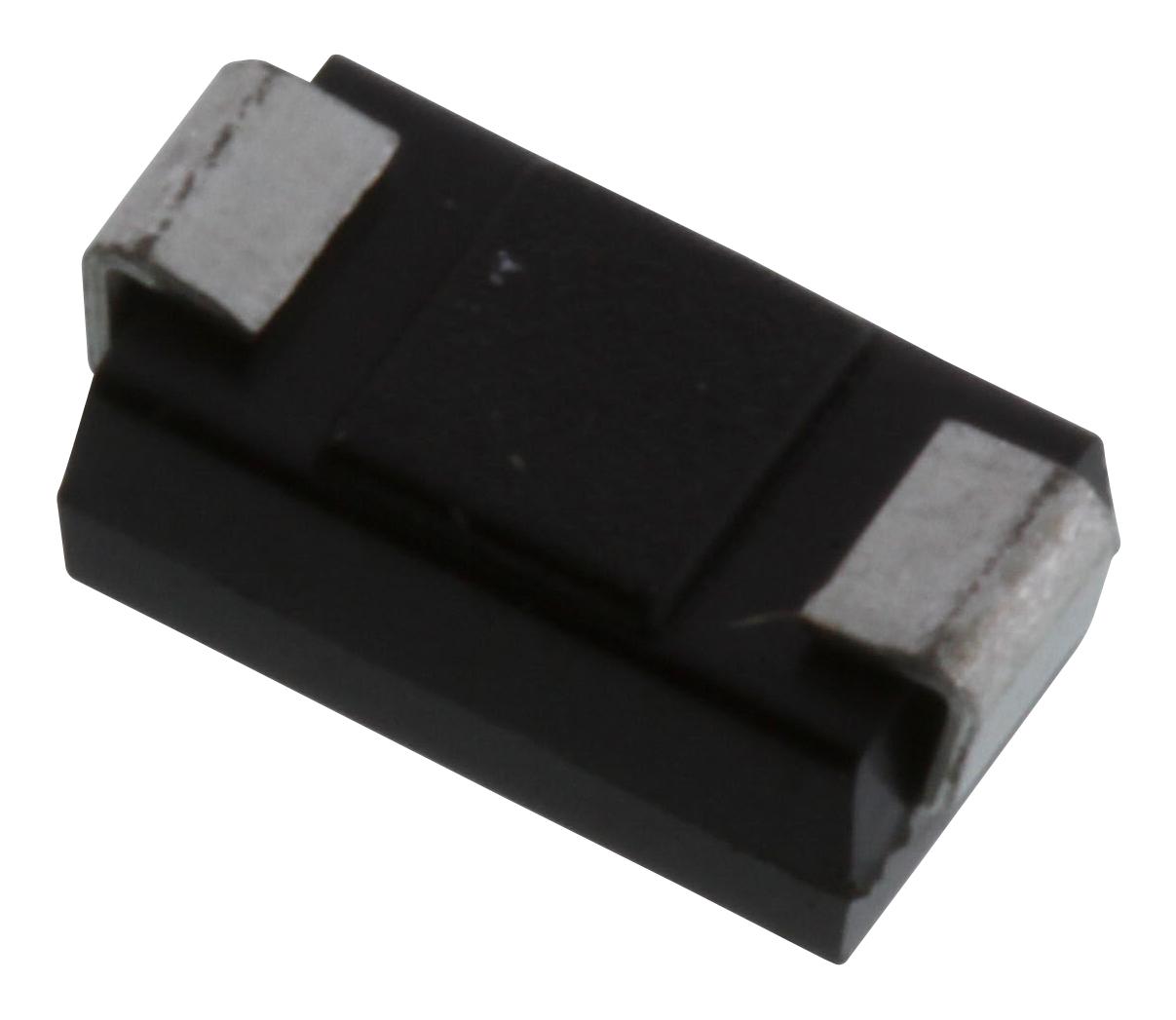

MULTICOMP PRO ES1D Fast Recovery Diode
This ultra-fast recovery power diode offers high efficiency and reliable switching performance, suitable for surface-mounted applications with a low profile package. Featuring a glass passivated junction chip, built-in strain relief, and easy pick-and-place for automated manufacturing, it operates at high temperatures up to 150°C. With a maximum repetitive peak reverse voltage of 100V and a recovery time of 35 ns, it is ideal for high-speed rectification in power supplies, inverters, and motor control circuits, ensuring durability and robust electrical performance.
MULTICOMP PRO ES1D Fast Recovery Diode Specifications:
- Maximum Recurrent Peak Reverse Voltage VRRM: 100V (ES1B+), 200V (ES1D+)
- Maximum RMS Voltage VRMS: 70V (ES1B+), 140V (ES1D+)
- Maximum DC Blocking Voltage Voc: 100V (ES1B+), 200V (ES1D+)
- Maximum Average Forward Rectified Current IF: 1A
- Peak Forward Surge Current: 30A
- Maximum Instantaneous Forward Voltage VF at 1A: 0.95V
- Maximum Reverse Recovery Time: 35 ns
- Maximum Reverse Current @ 25°C: 5 μA
- Operating Temperature Range: -55°C to +150°C
- Dimensions (L x W x D): 5.33 mm x 2.83 mm x 2.61 mm
- Package: DO-214AC (SMA)
- Glass passivated junction, built-in strain relief, low profile, suitable for automated placement
- High temperature soldering: 250°C / 10 seconds at terminals
- Terminals: Solder plated; Case: Moulded plastic; Polarity: indicated by cathode band
Buy the Multicomp Power Diode – Reliable Fast Recovery for Industrial Applications
Order the Multicomp Power Diode online—designed for high-speed switching in power supplies, motor control, and inverters. Featuring a 35 ns recovery time and reliable high-temperature performance, this diode provides excellent durability and electrical efficiency for industrial and electronic applications. Its compact, low profile package with built-in strain relief simplifies automated pick-and-place assembly, ensuring fast, secure installation. Whether for resistive, inductive, or capacitive loads, this diode offers trusted performance with RoHS compliance, making it an ideal choice for your power rectification needs.
Get Multicomp Power Diode ES1D+ today—built for high-speed switching and reliable efficiency in industrial power circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ES1D?
You can click on the BUY or RFQ button to purchase ES1D from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ES1D?
You can download the ES1D datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ES1D?
MULTICOMP PRO
