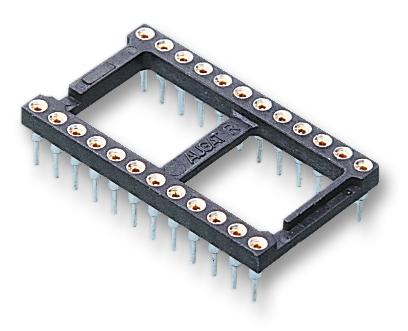

MULTICOMP PRO 2227MC200307F1 IC Socket Machine Pin
The MULTICOMP PRO 2227MC series IC sockets are precision-engineered components designed for secure and reliable connection of integrated circuits in automated assembly processes. Constructed with phosphor bronze contacts and a durable PBT insulator, these sockets offer excellent electrical conductivity and mechanical stability. The 2.54mm pitch ensures compatibility with standard IC footprints, while the machine pin design facilitates efficient automated insertion. These sockets are ideal for applications in industrial automation, consumer electronics, and telecommunications equipment where consistent performance and high-volume assembly are critical.
MULTICOMP PRO 2227MC200307F1 IC Socket Machine Pin Specifications:
- Current Rating: 1A AC/DC
- Maximum Contact Resistance: 20mΩ
- Minimum Insulator Resistance: 1,000MΩ
- Withstanding Voltage: 1000V AC for one minute
- Operating Temperature: -55°C to +125°C
- Insulator Material: PBT
- Contact Material: Phosphor Bronze
- Plating Material: Tin Plating
- Dimension A: 25.40 mm
- Dimension B: 22.86 mm
- Dimension C: N/A
- Dimension D: N/A
- Spacing: 03
Buy the 2227MC-20-03-07-F1 MULTICOMP PRO IC Socket Machine Pin | myMectronic
Purchase the MULTICOMP PRO 2227MC-20-03-07-F1 IC Socket with confidence and security.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2227MC200307F1?
You can click on the BUY or RFQ button to purchase 2227MC200307F1 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2227MC200307F1?
You can download the 2227MC200307F1 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2227MC200307F1?
MULTICOMP PRO
