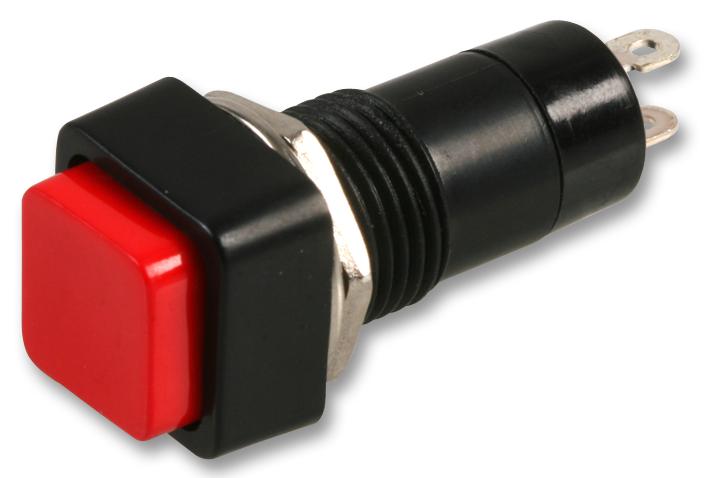

MULTICOMP PRO MCPS23B3 Pushbutton Switch
This non-illuminated square pushbutton switch features a SPST contact configuration, quick connect tabs, and a durable copper alloy contact material with silver or gold plating. Designed for panel mounting, it offers a rated 1A at 125V AC/250V AC, with a contact resistance of 30mΩ maximum, insulation resistance of at least 100MQ, and dielectric strength of 1000V AC for one minute. It supports a minimum of 5,000 electrical cycles and 10,000 mechanical cycles, with a push force exceeding 0.3kg. Available in multiple colours including black, red, yellow, and green, it is suitable for various on-off control applications.
MULTICOMP PRO MCPS23B3 Pushbutton Switch Specifications:
- Contact Configuration: SPST
- Actuator: Non-Illuminated, Square
- Terminal: Quick Connect Tab
- Rating: 1A, 125V AC/250V AC
- Contact Resistance: 30mΩ Max
- Insulation Resistance: 100MQ Min, 500V DC
- Dielectric Strength: 1000V AC/1 minute
- Electrical Life: 5,000 Cycles Min
- Mechanical Life: 10,000 Cycles Min
- Terminal Material: Copper Alloy, Silver or Gold Plated
- Push Force: > 0.3kg
- Dimensions: Not specified, fits panel mounting
- Color Options: Black, Red, Yellow, Green
Buy the Multicomp Series Pushbutton Switch: MCPS23B3
Purchase the Multicomp Series non-illuminated square pushbutton switch MCPS23B3 online today to ensure your electrical assemblies are equipped with high-quality, durable, and reliable control components. This SPST switch offers excellent electrical performance with a rated 1A at 125V AC/250V AC, and supports thousands of on-off cycles, making it suitable for a wide range of industrial, automation, and control applications. Its quick connect tabs enable easy installation, while multiple colour options allow for clear control indication. Secure your supply chain now and benefit from fast delivery and excellent customer support.
Order your Multicomp Series MCPS23B3 durable pushbutton switch today and enhance your control panels with reliable switching performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCPS23B3?
You can click on the BUY or RFQ button to purchase MCPS23B3 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCPS23B3?
You can download the MCPS23B3 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCPS23B3?
MULTICOMP PRO
