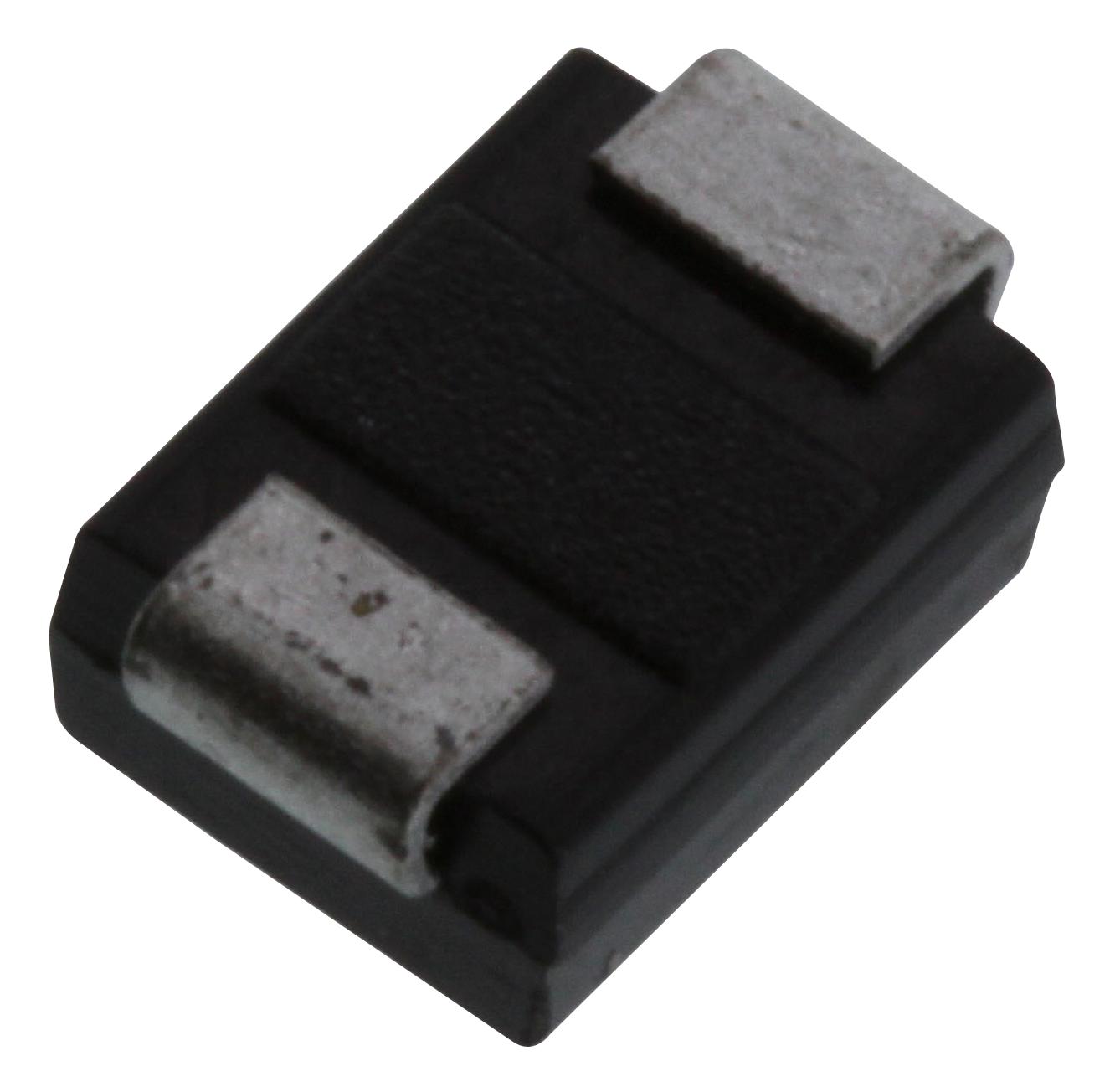

MULTICOMP PRO ES2A surface mount rectifier
The super fast glass passivated rectifier is designed for high-efficiency switching applications in electronic circuits. It features low forward voltage drop, high current capability, and low reverse leakage current. Encased in molded plastic with UL 94V-0 flammability rating, this surface-mount component supports various voltages from 50 to 600V and current up to 2A. Its low junction capacitance and fast recovery time make it ideal for high-frequency rectification in power supplies and industrial equipment.
MULTICOMP PRO ES2A surface mount rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage: 50 to 600 V
- Maximum RMS Voltage: 35 to 420 Vrms
- Maximum DC Blocking Voltage: 50 to 600 V
- Maximum Forward Surge Current: 50 A
- Peak Forward Voltage at 2A DC: 0.95 V to 1.7 V depending on model
- Maximum DC Reverse Current: 5 μA at 25°C
- Reverse Recovery Time: 35 ns
- Typical Junction Capacitance: 30 to 40 pF
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Dimensions: SMB package 0.083 x 0.155 inches
Buy the Multicomp Series Surface Mount Rectifier: ES2A
Purchase the Multicomp Series surface mount rectifier ES2A designed for high efficiency switching. It offers fast recovery, low forward voltage, and high current capacity up to 2A. Ideal for power supplies, industrial, and electronic applications, featuring durable plastic casing with UL 94V-0 flammability rating. Its compact SMB size supports a voltage range from 50V to 600V, making it suitable for demanding circuits requiring reliable rectification, low leakage, and quick switching times for high-frequency operations. Buy online now for trusted quality.
Get Multicomp ES2A today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ES2A?
You can click on the BUY or RFQ button to purchase ES2A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ES2A?
You can download the ES2A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ES2A?
MULTICOMP PRO
