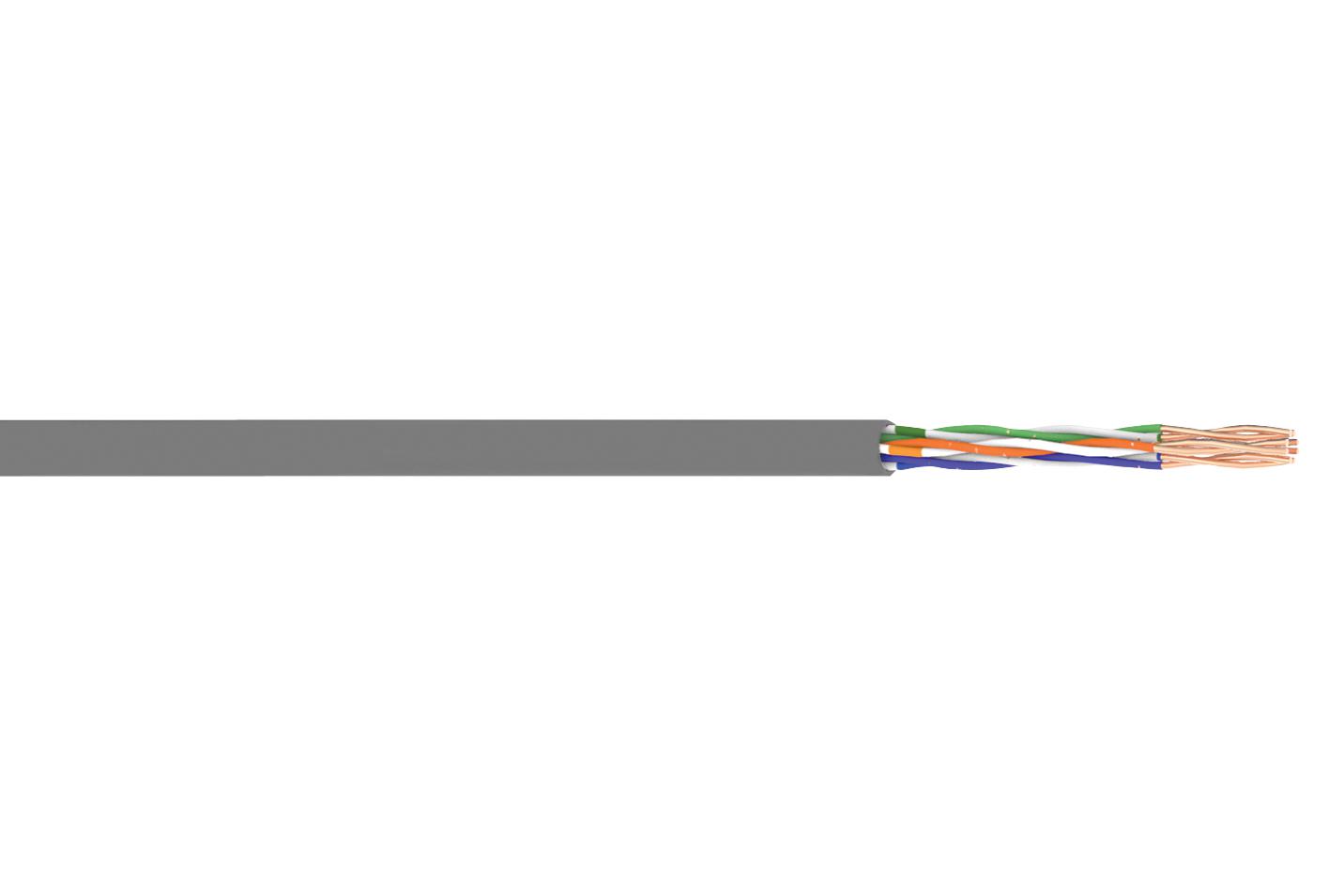

MULTICOMP-PRO PP002135 Ethernet Network Cable
This high-performance Cat 5e Ethernet cable supports data transmission speeds up to 1 gigabit per second (Gbps) and a frequency of up to 100MHz. Designed with solid copper conductors and HDPE insulation, it features a PVC sheath in grey, compliant with ISO/IEC 11801 and EIA/TIA standards. With a temperature rating of -20°C to +75°C, it has a minimum bending radius of 5 times the diameter when fixed. Ideal for networking in industrial and commercial environments, it is available on reels of 305 meters or by the meter for flexible deployment.
MULTICOMP-PRO PP002135 Ethernet Network Cable Specifications:
- Construction: Conductor - Class 1 solid copper, Insulation - HDPE, Sheath - PVC
- Color: Grey
- Number of Pairs: 4
- Nominal Diameter: 0.87 mm
- Overall Diameter: 49 mm
- Temperature Rating: -20°C to +75°C
- Minimum Bending Radius: 5 x overall diameter
- Standards: ISO/IEC 11801, EIA/TIA 568-C.2.
- Frequency Range: Up to 100 MHz
- Attenuation at 100 MHz: 22 dB
- Impedance: 100 ohms
- Maximum DC Resistance: 110 ohms
- Available Lengths: 305 meters reel or per meter
- Sheath Color: Grey
- Application: Data transmission, network cabling, industrial and commercial wiring
Buy the Multicomp Cat 5e U/UTP – Reliable Data Network Cable for Industrial Applications
Get your multicomp SeriesPP002135 Category 5e Ethernet cable online today for fast, reliable network connections. Made with solid copper conductors and HDPE insulation, this cable supports up to 1 Gbps speeds at 100MHz bandwidth. Its PVC sheath in grey enhances durability, perfect for industrial and commercial environments. Available in 305-meter reels or by the meter, this cable is suitable for various networking needs, ensuring high performance and dependable data transmission across multiple applications. Shop now and experience seamless connectivity.
Order your multicomp SeriesPP002135 Cat 5e Ethernet cable today and ensure your network is equipped with durable, high-speed data transmission capabilities.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002135?
You can click on the BUY or RFQ button to purchase PP002135 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002135?
You can download the PP002135 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002135?
MULTICOMP-PRO
