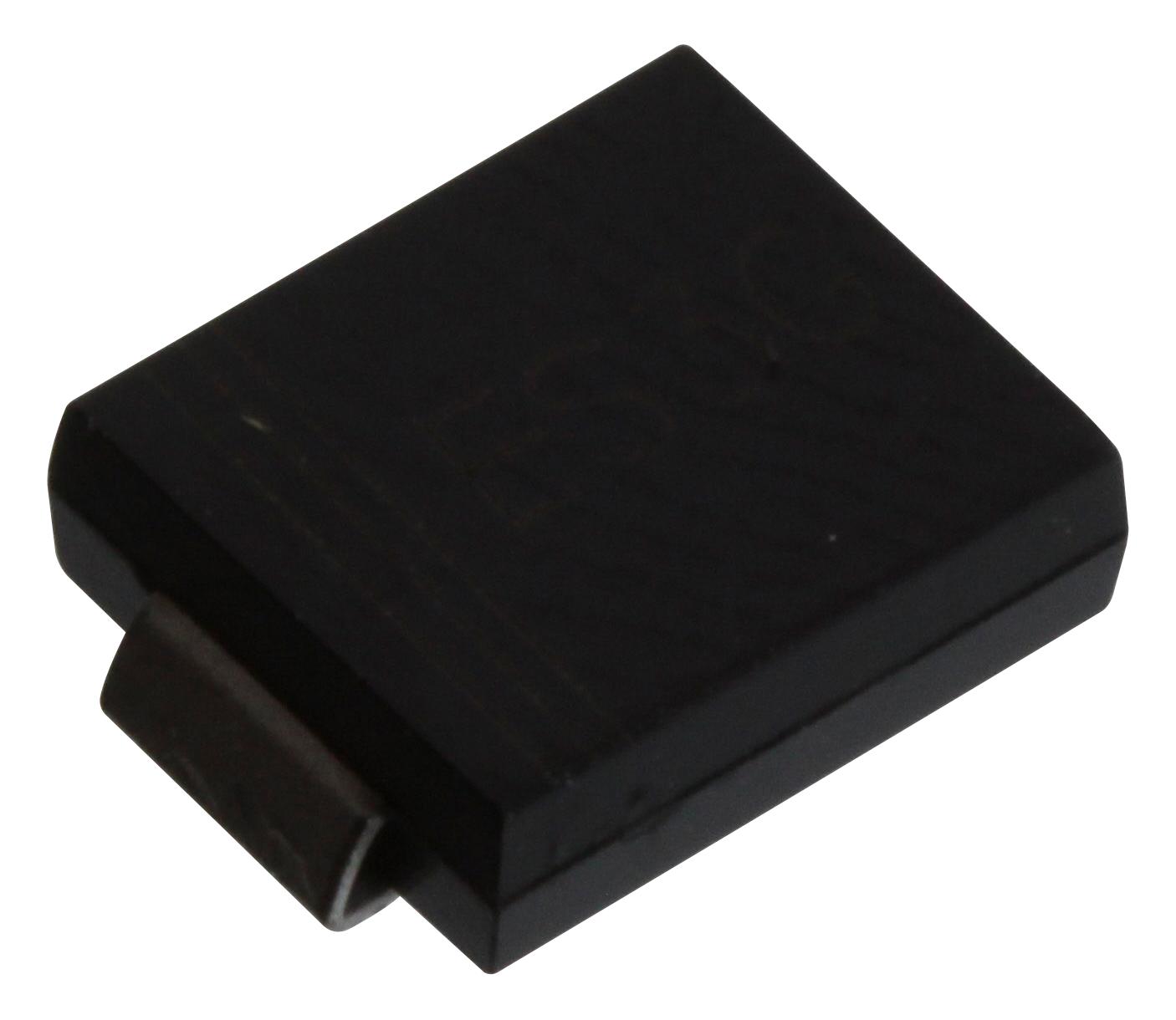

MULTICOMP PRO ES3G Surface Mount Rectifier
This surface mount, super fast switching rectifier with glass passivation offers high efficiency, low forward voltage drop, and high current capabilities. Ideal for high-speed switching applications, it features low reverse leakage current and UL 94V-0 flammability rated plastic. Suitable for resistive, inductive, and capacitive loads, it operates from -55°C to +150°C, with reverse voltages ranging from 50V to 600V and forward currents up to 3A. Its compact, molded plastic case ensures versatile mounting with polarity indicated by a color band.
MULTICOMP PRO ES3G Surface Mount Rectifier Specifications:
- Reverse Voltage: 50 to 600 Volts
- Forward Current: 3 Amperes
- Peak Forward Surge Current: 100 A for 8.3ms
- Maximum Recurrent Peak Reverse Voltage: 50 to 400 V
- Maximum RMS Voltage: 35 to 280 V
- Maximum DC Blocking Voltage: 50 to 400 V
- Maximum Reverse Recovery Time: 35 ns
- Typical Junction Capacitance: 45 to 70 pF
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Dimensions: 0.280 x 0.260 inches (7.11 x 6.60 mm)
- Case: Molded Plastic, surface mount
- Polarity: Color band denotes cathode
- UL Flammability: 94V-0
Buy the Buy Multicomp Surface Mount Rectifier Part Number ES3G Online
Enhance your electronic projects with the reliable, high-speed surface mount rectifier. Designed for efficient power conversion, it features low forward voltage, high current capacity, and robust construction. Easy to mount and suitable for resistive, inductive, and capacitive loads, it operates across a wide temperature range. Perfect for industrial, commercial, and DIY applications needing dependable, high-performance rectification. Order online now and optimize your power management with this durable, UL-rated component, ensuring long-term performance and efficiency.
Order your Multicomp Series ES3G high-speed surface mount rectifier today and ensure reliable power switching for your projects with excellent efficiency.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ES3G?
You can click on the BUY or RFQ button to purchase ES3G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ES3G?
You can download the ES3G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ES3G?
MULTICOMP PRO
