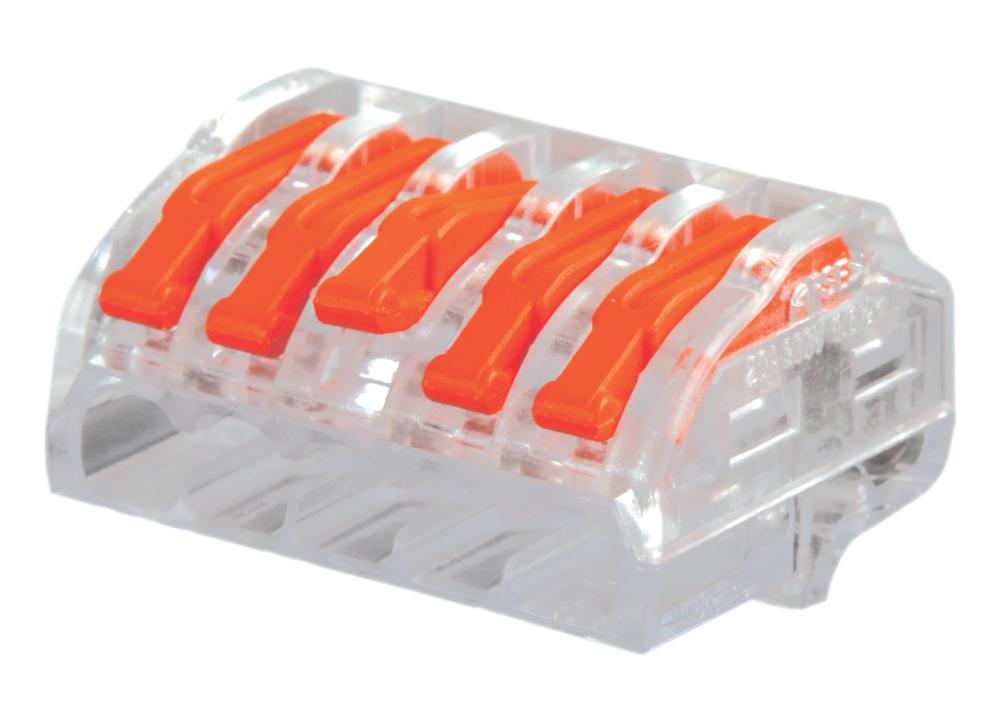

MULTICOMP PRO MP007141 Lever Wire Connector
This Multicomp Pro lever wire connector features a lever lock mechanism that allows quick, tool-free connection of solid, stranded, and fine stranded cables. Designed for versatility, it supports conductors with a size range of 0.2mm² to 4mm² and a conductor strip length of 10mm, making installation fast and reliable. The connector operates at a maximum voltage of 450V AC, rated for up to 32A current, with a maximum temperature rating of 85°C. It’s constructed from durable polycarbonate and polyamide 66 materials, meeting UL94V-0 flammability standards for safety in electrical applications.
MULTICOMP PRO MP007141 Lever Wire Connector Specifications:
- Body Material: Polycarbonate
- Levers Material: Polyamide 66
- Conductor Cable Size Range: 0.2mm² to 4mm²
- Conductor Strip Length: 10mm
- Current Rating: 32A
- Voltage (Max): 450V
- Temperature Rating: 85°C Max.
- Flammability Rating: UL94V-0
- Width: 26mm (for the 5-pole model)
- Height: 7.45mm
- Depth: 20.7mm
Buy the Multicomp Series Splicing Connectors: MP007141
Discover the ease of quick, tool-free cable connections with the Multicomp Pro lever wire connector. Ideal for solid, stranded, and fine stranded cables, this 32A connector supports 0.2mm² to 4mm² conductors and operates at 450V AC. Made from durable polycarbonate and polyamide 66, it ensures safety with UL94V-0 compliance. Whether for repair, maintenance, or new installations, buy online now and experience seamless, reliable electrical connections with excellent performance and safety standards.
Buy Multicomp Pro MP007141 lever wire connector now and enjoy reliable, tool-free cable connections with durable safety-rated materials.
