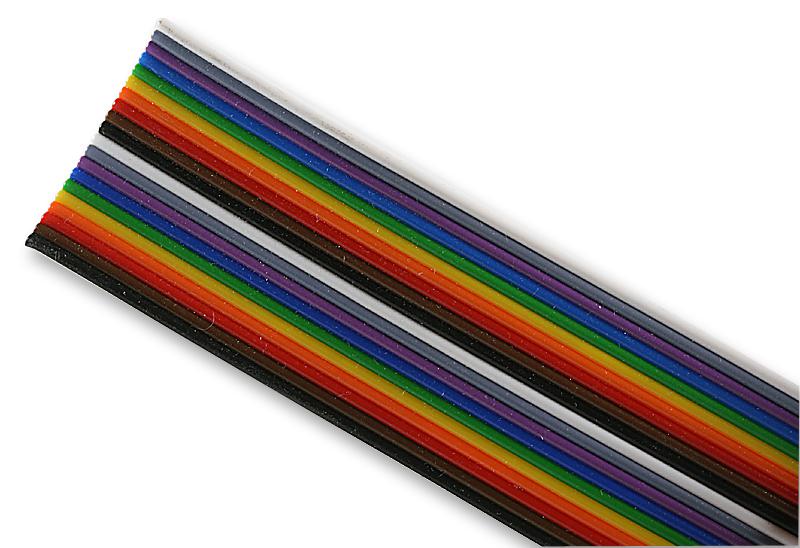

MULTICOMP PRO FBLA102425 Edge-Bonded Ribbon Cable
The Edge-Bonded Ribbon Cable series offers flexible, neat wiring solutions with colour-coded PVC insulation and stranded copper conductors. Available in 10, 20, or 30 way configurations, these cables feature bonding for easy separation, and are suitable for applications requiring a maximum voltage of 300V and operating temperature from -10°C to +80°C. They conform to flame retardant standards DIN VDE 0482 and IEC 60332-1-2, with test voltages exceeding 1.5kV, making them ideal for reliable internal wiring in devices and control panels.
MULTICOMP PRO FBLA102425 Edge-Bonded Ribbon Cable Specifications:
- Conductors: 7/0.2mm or 16/0.2mm stranded copper
- Insulation: PVC, colour-coded as per MIL681
- Conductor Resistance: Max 85Ω/km at 20°C
- Insulation Resistance: Min 20MQ·km at 20°C
- Test Voltage: >1.5kV at 50Hz for 1 minute
- Operating Voltage: Max 300V
- Temperature Range: Static -20°C to +80°C, Operating -10°C to +80°C
- Flame Retardant: DIN VDE 0482 part 332-1-2 / IEC 60332-1-2
- Bend Radius: 5 x diameter once, 10 x diameter repeatedly
- Dimensions: Insulation thickness approximately 1.8mm, conductor diameter 0.23mm or 0.52mm depending on version
Buy the Buy multicomp Edge-Bonded Ribbon Cable Part Number FBLA102425 Online
Enhance your wiring setup with our reliable Edge-Bonded Ribbon Cable. Designed for neat, flexible connections, this ribbon cable features colour-coded PVC insulation and stranded copper conductors for durability and easy separation. Suitable for various industrial and electronic applications, it supports up to 300V and operates efficiently from -10°C to +80°C. Flame retardant and conforming to safety standards, this cable ensures safety and reliability in your electrical projects. Order now online for fast delivery and expert support.
Buy multicomp FBLA102425 ribbon cable now and enjoy reliable, neat internal wiring for your electronic and control systems.
