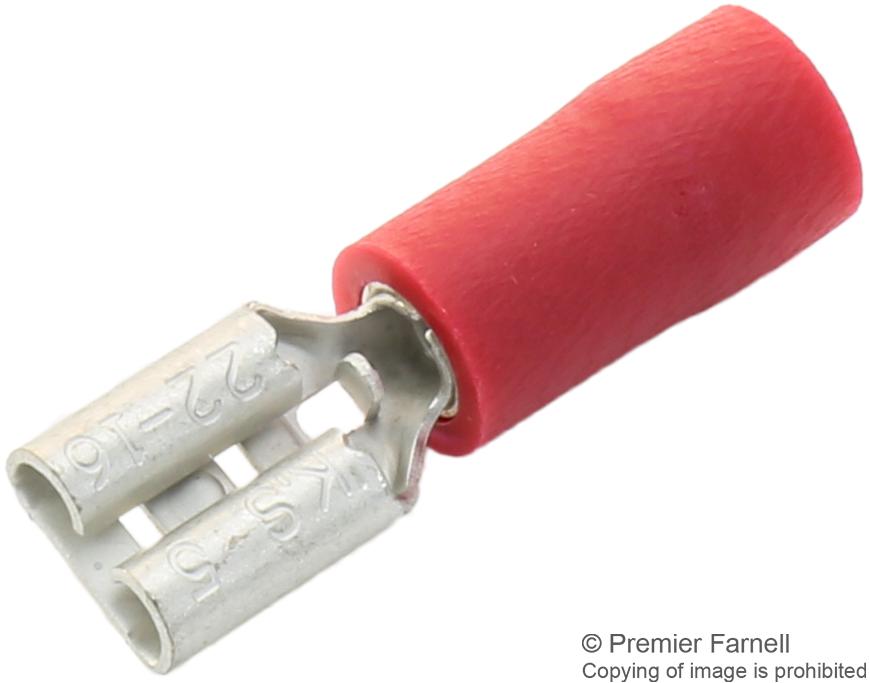

MULTICOMP PRO FDD11875 Female Quick Disconnect
The FDD1-187(5) is a red female push-on double crimp terminal made with vinyl insulation and brass/copper construction, meeting BS6017 standards. It features an easy cable entry to prevent frayed wires, with a bright electro-tinned surface resisting oxidation. The terminal supports wire gauges 22-16 AWG and includes a small indentation above the crimp for proper connection. Rated for 10A, 600V at 105°C, it is suitable for industrial, communication, and networking uses, compliant with BS4579, IEC 352-2, and ISO 1996 standards, functioning reliably between -20°C to +85°C.
MULTICOMP PRO FDD11875 Female Quick Disconnect Specifications:
- Insulation Material: Vinyl
- Terminal Material: Brass
- Wire Range: 22-16 AWG
- Max. Current: 10A
- Max. Voltage: 600V
- Temperature Range: -20°C to +85°C
- Standard Compliance: BS6017, BS4579, IEC 352-2, ISO 1996
- Finish: Electro-tin plated
- Support wire gauges: 22 to 16 AWG
- Dimensions: Length varies, crimp barrel diameter 2.3mm (16-14 AWG), 3.4mm (12-10 AWG), with a small indentation above the crimp for proper connection.
- Color: Red
- Type: Female quick disconnect, double crimp
Buy the Multicomp Series Female Quick Disconnects: FDD11875
Order the Multicomp Female Quick Disconnect terminal FDD11875 online now for reliable, high-quality connection solutions. Designed with vinyl insulation and a double crimp barrel, this terminal supports wire gauges from 22 to 16 AWG, rated for 10A and 600V with temperature tolerance from -20°C to +85°C. Its electro-tin finish ensures resistance to oxidation, making it perfect for industrial, communication, and networking projects. Easy to install with a secure and efficient connection, buy online today and enhance your wiring reliability.
Get Multicomp FDD11875 today—built for precision and long-lasting durability in industrial and electronic wiring applications.
