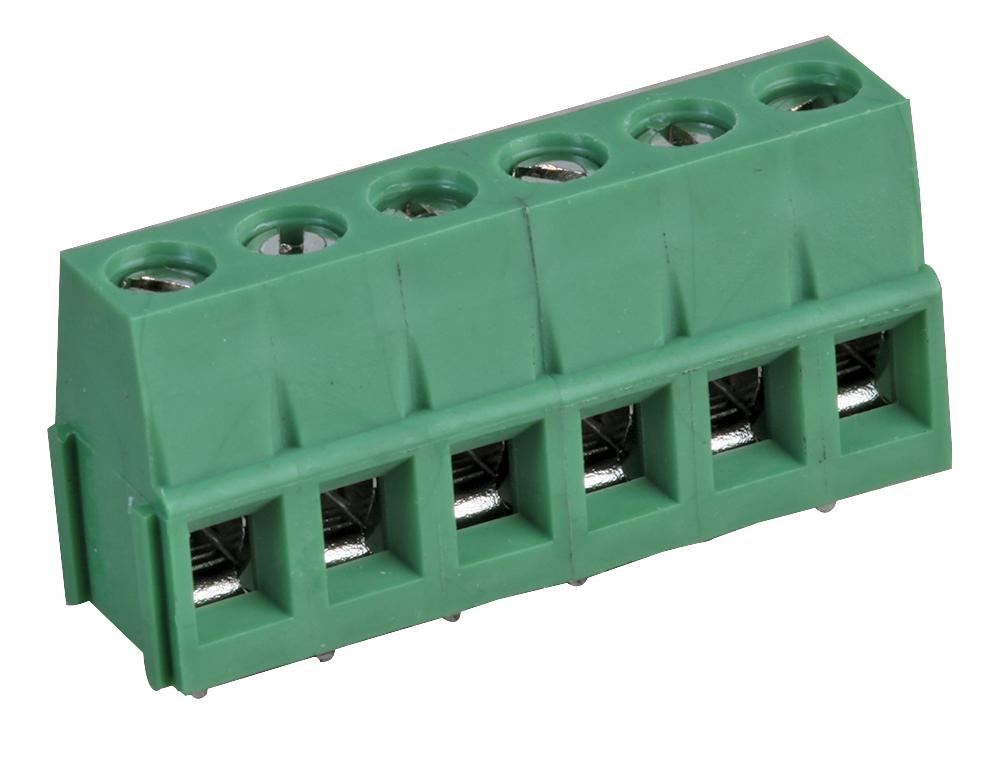

MULTICOMP PRO MC000038 6-Position Terminal Block
The MC000038 terminal block features a compact design with a 5.08mm pitch, six connection points, and a through-hole layout. Made from durable polyamide 66, it includes a nickel-plated steel cage clamp and a tin-plated brass terminal for reliable wire connections. The terminal uses an M2.6 steel screw, sepcifically rated for a torque of 7 inch-pounds, and accepts wire sizes from 12 to 26 AWG with a conductor area of 4mm². Suitable for PCB mounting with a 1.5mm hole diameter, it operates safely within -40°C to +105°C temperature range. Ideal for industrial automation, control panels, and electrical wiring projects, offering a robust and safe connection solution.
MULTICOMP PRO MC000038 6-Position Terminal Block Specifications:
- Rated Voltage: AC 300V
- Rated Current: 16A
- Wire Size: 26 AWG to 12 AWG
- Housing Material: Polyamide 66
- Clamping Method: Cage clamp
- Terminal Material: Tin-plated brass
- Screw Size: M2.6 steel, Ni plated
- Operating Temperature: -40°C to +105°C
- Torque: 7 inch-pounds
- PCB Hole Diameter: 1.5 mm
- Standards: UL, VDE compliant
- Dimensions: 30.5 mm length, 1.2 inches, 6-way configuration, suitable for PCB mounting
- Application: Industrial control, wiring, automation systems, reliable electrical connections
Buy the Buy Multicomp Terminal Block Part Number MC000038 Online
Enhance your electrical panel wiring with the versatile 6-position terminal block. Designed with a 5.08mm pitch, it offers secure screw clamp connections, operates safely from -40°C to +105°C, and supports wire sizes from 26 AWG to 12 AWG. Made from durable polyamide 66, the terminal block features a nickel-plated steel cage clamp, a tin-plated brass terminal, and an M2.6 steel screw, providing optimal reliability and safety for automation, control, and industrial applications. Buy this high-quality terminal block online today for professional wiring solutions.
Order your Multicomp SeriesMC000038 terminal block today and ensure a reliable and safe wiring connection for your industrial projects.
