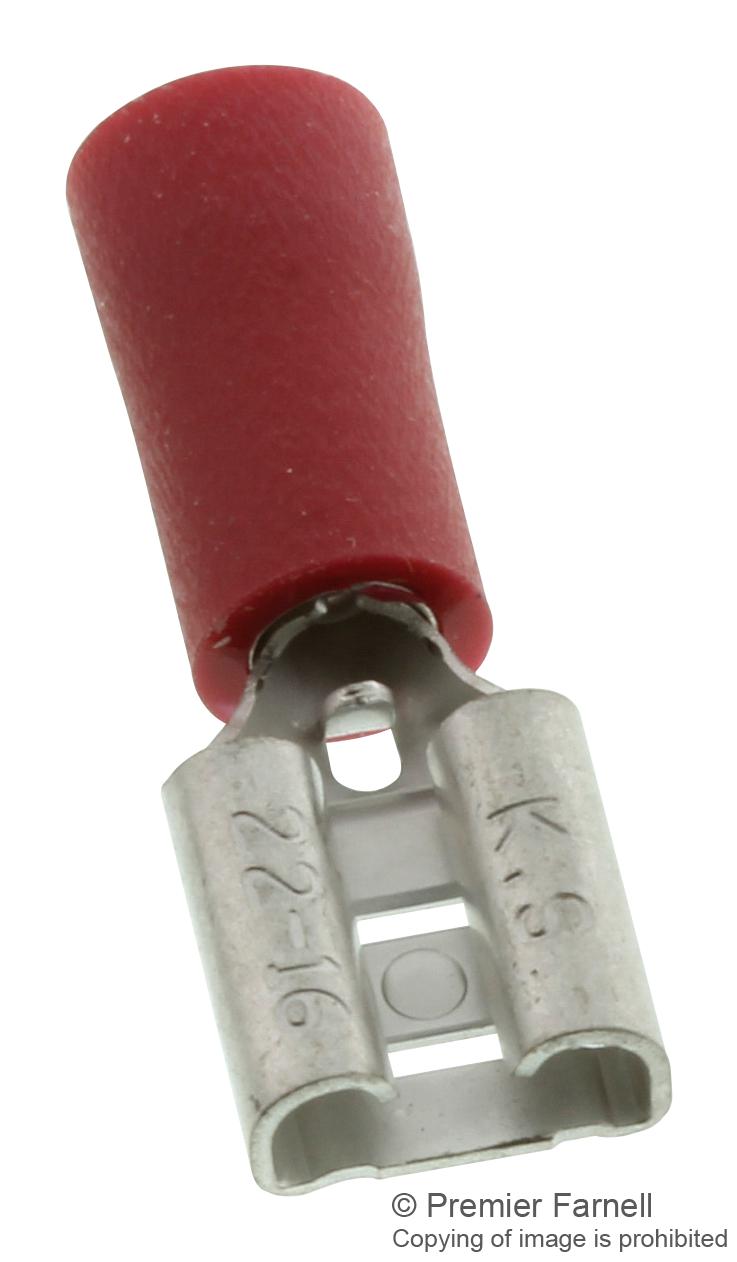

MULTICOMP PRO FDD1250 Female Quick Disconnect Terminal
The FDD1-250 is a female quick disconnect crimp terminal with a red vinyl insulator, brass terminal, and copper sleeve on the barrel, suitable for 22-16 AWG wires. It is rated for up to 600V and designed for industrial electrical systems, offering secure and reliable connections. This terminal features double crimping on the barrel, ensuring excellent conductor contact. Its compact design includes specific dimensions for wire range, insulation, and terminal barrel size, making it ideal for automation and control panel wiring, providing durability and safety in electrical assembly.
MULTICOMP PRO FDD1250 Female Quick Disconnect Terminal Specifications:
- Material: Brass terminal with copper sleeve on barrel
- Insulation Material: Vinyl, Red color for 22-16 AWG, Blue for 16-14 AWG, Yellow for 12-10 AWG
- Voltage Rating: 600 Volts Max.
- Temperature Rating: 105°C
- Wire Range: 22-16 AWG (0.5-1.5 mm² conductor area)
- Terminal Barrel Inner Diameter: 2.3mm (16-14 AWG), 3.4mm (12-10 AWG)
- Double Crimp: Yes, with copper sleeve for secure connection
- Dimensions: F: 0.197 inch (5mm), L: 0.252 inch (6.4mm), B: 0.764 inch (19.4mm), D: 0.413 inch (10.5mm), T: 0.157 inch (4mm)
- Color Coding: Red for 22-16 AWG, Blue for 16-14 AWG, Yellow for 12-10 AWG
- Application: Electrical wiring, industrial control systems, secure terminal connections
- Certifications: Suitable for industrial use, compliant with relevant standards
Buy the Buy Multicomp Female Quick Disconnects Part Number FDD1250 Online
Purchase the Multicomp Female Quick Disconnect Terminal FDD1250 online for secure, reliable electrical connections. Designed for use with 22-16 AWG wires, this terminal features vinyl insulation and a double crimp design with a copper sleeve, ensuring long-lasting durability in industrial environments. Rated up to 600V, it is suitable for various control and automation applications. Ordering online guarantees fast delivery and competitive prices, making it easy to enhance your electrical assembly with high-quality, certified components for professional results.
Buy Multicomp FDD1250 now and experience unmatched reliability and performance for industrial electrical connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO FDD1250?
You can click on the BUY or RFQ button to purchase FDD1250 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part FDD1250?
You can download the FDD1250 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of FDD1250?
MULTICOMP PRO
