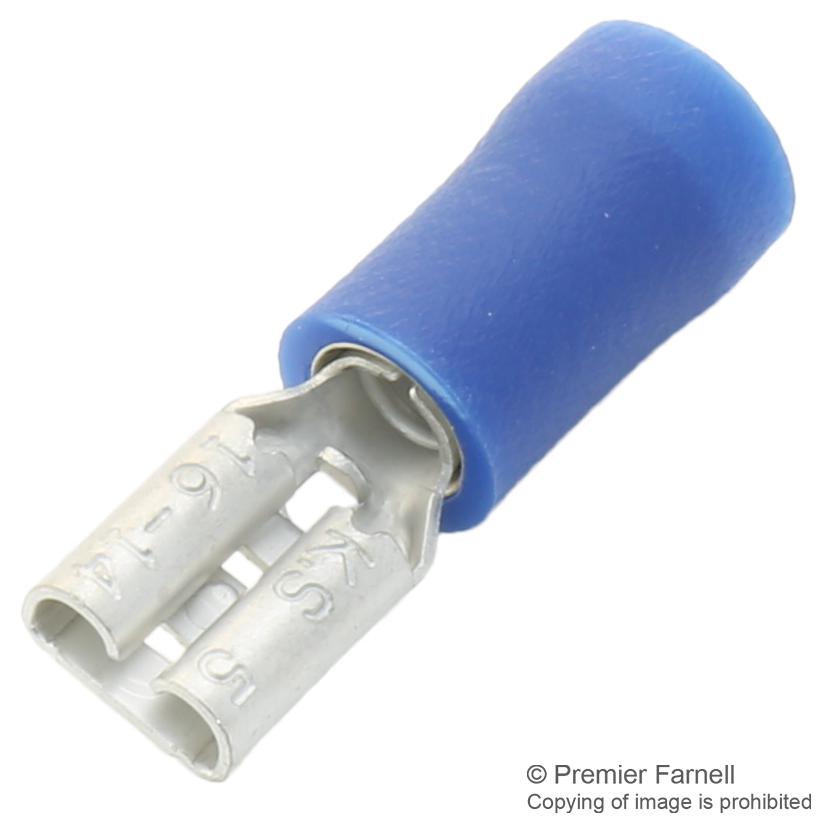

MULTICOMP PRO FDD2250 Female Quick Disconnect
The FDD2-250 is a female quick disconnect crimp terminal featuring a blue vinyl insulator, brass terminal, and copper sleeve on the barrel. Suitable for wire sizes 16 to 14 AWG and conductor areas of 1.5 to 2.5 mm², rated for a maximum of 600 volts at 105°C. This industrial-grade terminal ensures reliable electrical connections, easy crimping, and durable operation in various electrical and automation applications. Its vinyl insulation offers color-coded identification, making installation and maintenance straightforward, while its double crimp design enhances connection security and longevity.
MULTICOMP PRO FDD2250 Female Quick Disconnect Specifications:
- Insulation Material: Vinyl (Blue)
- Terminal Material: Brass
- Wire Range: 16-14 AWG (1.5-2.5 mm²)
- Rated Voltage: 600 V
- Temperature Rating: 105°C
- Double Crimp: Yes, with copper sleeve on barrel
- Insulation Color: Blue
- Terminal Barrel I.D: 2.3mm (16-14 AWG)
- Conductor Area: 1.5 - 2.5 mm²
- Maximum Electric Current: 7A (20-18 AWG), 4A (22 AWG)
- Physical Dimensions: W: 0.197 inch (5mm), F: 0.252 inch (6.4mm), L: 0.764 inch (19.4mm), B: 0.413 inch (10.5mm), D: 0.185 inch (4.7mm), T: 0.014 inch (0.36mm)
Buy the Multicomp FDD2250 – Reliable Female Quick Disconnect for Industrial Applications
Enhance your electrical connections with the durable and reliable female quick disconnect terminal from Multicomp. Designed with blue vinyl insulation, brass contacts, and a copper sleeve, it ensures secure, easy crimping for wire sizes 16-14 AWG. Ideal for industrial use, this terminal supports up to 600 volts at 105°C, providing excellent safety and longevity. Its double crimp design guarantees stable, long-lasting electrical contact, making installation, maintenance, and repairs quicker and more efficient. Perfect for automation systems, control panels, and other industrial electrical applications.
Get Multicomp FDD2250 today—built for precision and long-lasting durability in electrical connections and automation systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO FDD2250?
You can click on the BUY or RFQ button to purchase FDD2250 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part FDD2250?
You can download the FDD2250 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of FDD2250?
MULTICOMP PRO
