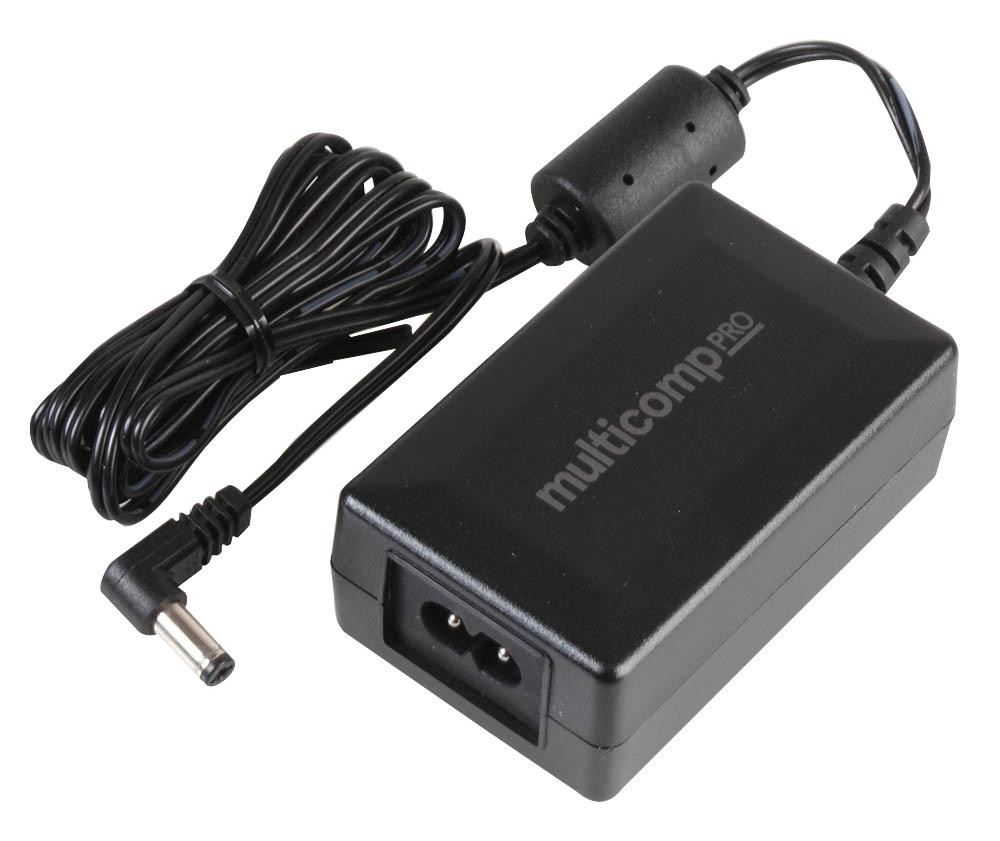

MULTICOMP PRO MP001994 Power Adapter
This 18-watt external plug-in power adapter provides a reliable 12V DC output at 1.5A, designed for general power applications. It complies with RoHS standards and features an IEC-320-C14 input connector, efficiency Level VI, and safety certifications including UL, CUL, FCC, GS, CE, and RCM. Its compact, high-quality enclosure offers stable performance with line and load regulation within 5%. The power supply includes protections such as over-voltage, over-load, and short circuit, making it suitable for diverse industrial and commercial electronic devices.
MULTICOMP PRO MP001994 Power Adapter Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 47Hz to 63Hz
- Input Connector: IEC 320 to C14
- Input Current Rated: 500mA Rms Max
- Inrush Current: 50A Max. at 115V AC Cold Start, 100A Max. at 230V AC Cold Start
- Leakage Current: <3.5mA
- Efficiency: 85% Min
- Input Power (No Load): <0.1W (CEC & DOE Level VI)
- Output Voltage Rating: 12V DC
- Output Current Range: 1.5A
- Output Connection: 2.1mm x 5.5mm x 12mm Centre Positive - Right Angle
- Line and Load Regulation: 5%
- Over Voltage Protection: Zener Protection
- Over Load Protection: <2.5A Output Load
- Short Circuit Protection: Output Shut Down Auto Recover
- Ripple Voltage: 150mV (p-p) (100V to 240V AC Input)
- Hi-Pot: 1500V AC or 2121V DC 10mA 1 min
- Safety Approvals: UL, CUL, FCC, GS, RCM, CE
- EMI Standard: FCC Class B, CE
- Operating Temperature Range: 0°C to +40°C
- Storage Temperature: -10°C to +70°C
- Operating Humidity: 20% to 80%
- Storage Humidity: 10% to 90%
- Dimensions: 80.6mm (L) x 50mm (W) x 31mm (H)
- Product Weight: 130g
Buy the Multicomp 001994 – Reliable Power Supply for Industrial Applications
Enhance your projects with the reliable 18W 12V DC power adapter from Multicomp. Designed for diverse industrial and electronic applications, this compact, efficient, and RoHS-compliant power supply offers excellent safety features including UL, CUL, FCC, GS, CE, and RCM approvals. Its stable output of 12V DC at 1.5A, combined with protections like over-voltage, over-load, and short circuit shutdown, guarantees safety and performance. Ideal for powering computers, security systems, and automation equipment, order online now for quick delivery.
Order your Multicomp Series MP001994 18W External Plug-In Adapter today and ensure stable, safe power for your electronic devices.
