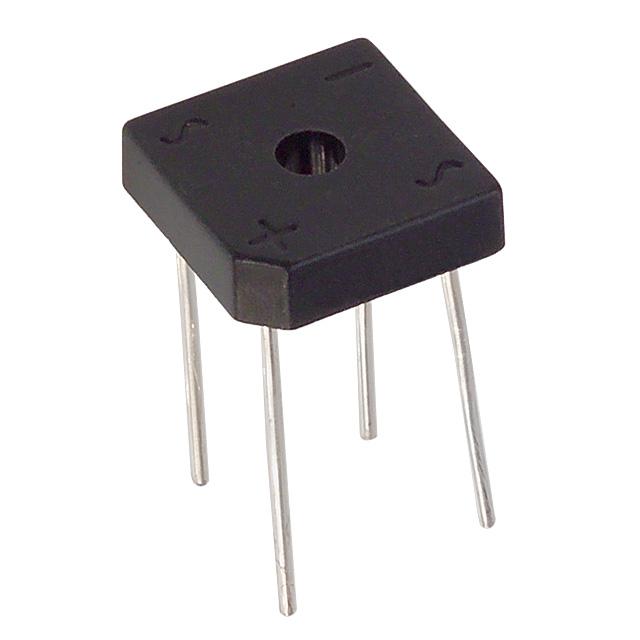

MULTICOMP PRO GBPC1502W Bridge Rectifier
The GBPC Series multicomp bridge rectifier is a high-current, single-phase component designed for efficient power conversion in electrical circuits. Featuring an integrally molded heatsink, it provides excellent heat dissipation and low thermal resistance, suitable for resistive and inductive loads. With surge overload ratings from 300 to 400A and isolation voltages over 2,500V from case to lead, it ensures safety and durability. Its stable operation at temperatures from -50°C to +150°C and robust construction make it ideal for industrial applications and high-current rectification tasks.
MULTICOMP PRO GBPC1502W Bridge Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage VRRM: 100V to 1,000V
- Maximum RMS Voltage Vrms: 70V to 700V
- Maximum DC Blocking Voltage Voc: 100V to 1,000V
- Maximum Average Forward Rectified Current: 15A to 35A
- Peak Forward Surge Current: 300A to 400A
- Forward Voltage Drop: approximately 1.4V at rated current
- Maximum Instantaneous Forward Current: 15.75A across models
- Maximum DC Reverse Current: 5mA at rated voltage
- Thermal Resistance: 1.5°C/W
- Operating and Storage Temperature Range: -50°C to +150°C
- Physical Dimensions: Hole for #10 screw, diameter 0.762 inches (19.1mm), various lengths and widths provided
Buy the Multicomp Series Bridge Rectifier: GBPC1502W
Purchase the Multicomp Series GBPC1502W bridge rectifier online today to enhance your power supply systems. This high-current rectifier features excellent thermal dissipation, surge overload capabilities up to 400A, and wide operating temperature range from -50°C to +150°C. Its robust construction ensures durability under demanding conditions, making it ideal for industrial rectification, motor drives, and power supplies. With easy solder terminals, it offers quick installation and reliable performance. Secure your supply chain with this dependable high-current rectifier now and ensure your project's success with top-grade electrical components.
Order your Multicomp Series GBPC1502W bridge rectifier today and ensure efficient, reliable power conversion for your industrial and electronic projects.
