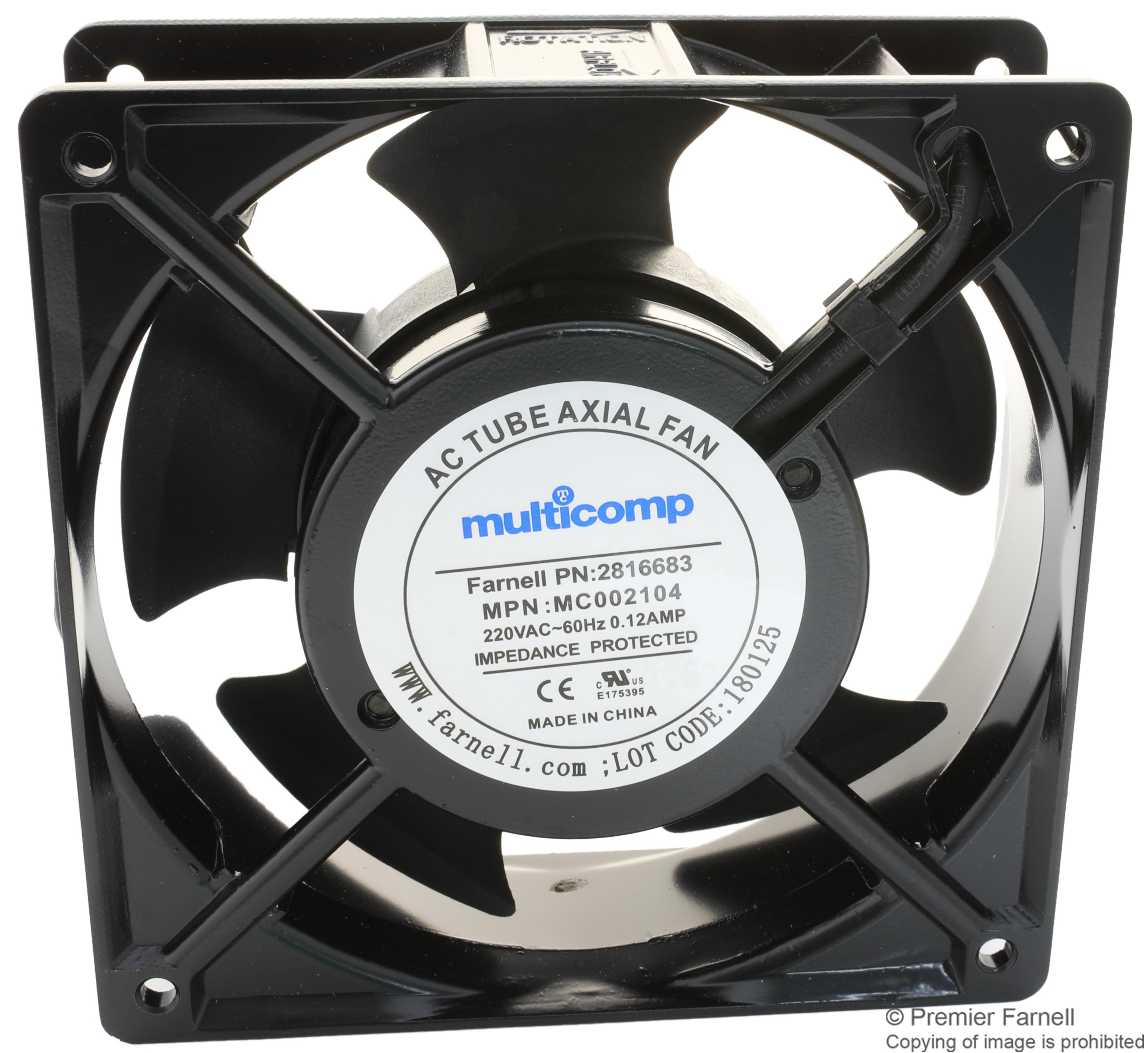

MULTICOMP PRO MC002104 Cooling Fan
The AC Cooling Fan multicomp RO is a high-efficiency, reliable cooling solution designed for industrial applications. Featuring a 120mm x 120mm x 38mm aluminium housing and PBT 85% + Fiber 15% fan blades, it offers optimized airflow of 92 CFM at speeds up to 2650 RPM. Powered at 220V / 50Hz with a rated power of 18W, this fan incorporates durable ball bearings for long-lasting performance with an MTBF of 30,000 hours. Suitable for environments with operating temperatures from -10°C to +70°C, it ensures stable operation and minimal noise at 40 dBA.
MULTICOMP PRO MC002104 Cooling Fan Specifications:
- External Dimensions: 120mm x 120mm x 38mm
- Weight: 480g
- Bearing: Double ball bearing for durability
- Rated Voltage: 220V / 50Hz
- Rated Current: 0.12A
- Rated Power: 18W +10%
- Rated Speed: 2650 RPM +10%
- Air Flow: 92 CFM
- Max. Static Air Pressure: 0.29 Inch-H2O
- Operating Voltage Range: 175V to 240V
- Staring Voltage: 175V
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -30°C to +85°C
- Insulation Resistance: At least 10MQ at 500V DC
- Dielectric Strength: 1800V AC, 1 minute
- Fan Material: Aluminium housing, PBT fan blades
- Bearing Type: Ball bearing
- Sound Level: 40 dBA
- MTBF: 30,000 hours
- Life Expectancy (bearing): 50,000 hours
Buy the Multicomp RO – Reliable Cooling Fan for Industrial Applications
Enhance your industrial cooling solutions with the reliable multicomp RO cooling fan. Featuring a robust aluminium housing and ball bearings, it offers 92 CFM airflow at 2650 RPM, ensuring efficient heat dissipation. Operating from 175V to 240V, it delivers consistent performance under demanding conditions. The fan's durable design includes a lifespan of 30,000 hours and minimal noise at 40 dBA, making it an ideal choice for machinery, electronics cooling, and other industrial applications. Buy online today for dependable performance.
Order your Multicomp series MC002104 cooling fan today and ensure your cooling systems operate reliably at 220V with optimal airflow and long-lasting performance.
