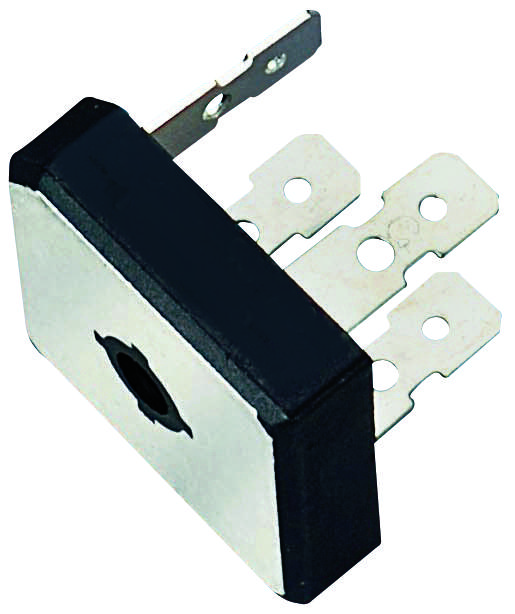

MULTICOMP PRO GBPC25005 Bridge Rectifier
The GBPC25005 is a glass passivated bridge rectifier with a molded plastic body and pure tin-plated terminals. The plastic material complies with UL 94V-0 flammability standard. An integral molded heatsink provides very low thermal resistance for efficient heat dissipation. It offers an isolation voltage of over 2500V from case to lead, with a maximum RMS voltage of 35V and a maximum DC blocking voltage of 50V. The typical thermal resistance is 1.5°C/W. Suitable for mains rectification applications, it is a reliable component rated for high performance. Note that market demand has extended lead times, and the product is exempt from discounts.
MULTICOMP PRO GBPC25005 Bridge Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage: 50 V
- Maximum RMS Voltage: 35 V
- Maximum DC Blocking Voltage: 50 V
- Rectified Current: 25 A
- Typical Thermal Resistance: 1.5°C/W
- Operating Temperature Range: -50 to +150°C
- Case: Moulded plastic body
- Terminals: Pure tin-plated, lead-free, solderable per MIL-STD-202, Method 208
- Mounting torque: 20 inches-lbs. maximum
- Isolation voltage: over 2500 V from case to lead
- Flammability standard: UL 94V-0
- Surge overload ratings: 300–400 amperes
- Maximum Reverse Surge Current: 5A
- Dimensions: varied with design, typical size approximately 29.0 mm x 28.5 mm
- Lead diameter: 6.59 mm
Buy the Multicomp GBPC25005 – Reliable Bridge Rectifier for Industrial Applications
Order the high-performance bridge rectifier now to ensure efficient power conversion in your industrial systems. The GBPC25005 offers a robust 25A current rating, 50V voltage capacity, and outstanding thermal management. Made with UL 94V-0 flame-retardant plastic and pure tin-plated leads, it guarantees durability, safety, and reliable operation under demanding conditions. Whether for manufacturing, automation, or power supply units, this rectifier provides dependable rectification with low thermal resistance, quick soldering compatibility, and excellent isolation. Secure your stock today for seamless project integration and optimal performance.
Buy Multicomp GBPC25005 now and experience unmatched reliability and high current performance for industrial rectification needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO GBPC25005?
You can click on the BUY or RFQ button to purchase GBPC25005 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part GBPC25005?
You can download the GBPC25005 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of GBPC25005?
MULTICOMP PRO
