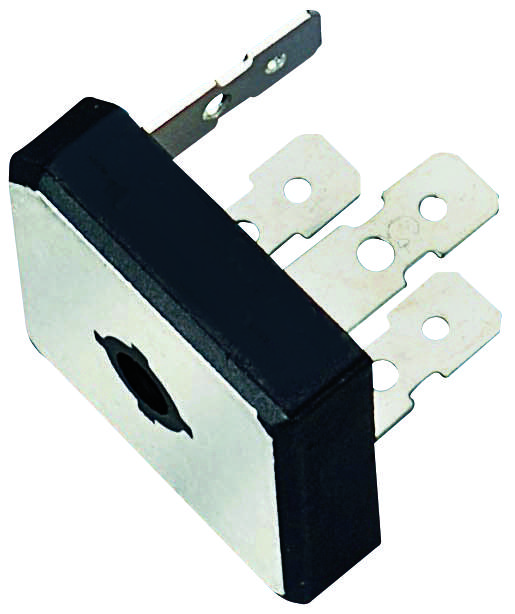

MULTICOMP PRO GBPC35005 Bridge Rectifier
The GBPC35005 is a 35A, 50V bridge rectifier designed for applications requiring reliable high-current rectification. It features low forward voltage drop, high surge overload capability up to 450A, and can be mounted in any position. With an electrically isolated base rated at 2,000V and solderable FASTON terminals, it provides efficient performance in various power supply circuits. Suitable for resistive, inductive, and capacitive loads, its operational temperature range spans from -50°C to +150°C, ensuring durability in demanding environments.
MULTICOMP PRO GBPC35005 Bridge Rectifier Specifications:
- Maximum Repetitive Peak Reverse Voltage VRRM: 50V
- Maximum RMS Bridge Input Voltage Vrms: 30V
- Maximum Average Forward Rectified Output Current: 35A
- Peak Forward Surge Current (8.3ms): 450A
- Maximum Forward Voltage Drop at Ve: 5/7.5/12.5/17.5/25A at 44V
- Maximum Reverse Current at Rated DC Blocking at 25°C: 10A
- Operating and Storage Temperature Range: -50°C to +150°C
- Mounting Position: Any
- Base Isolation Voltage: 2,000V
- Terminals: Solderable 0.25 inch FASTON
- Dimensions: Hole diameter 1.130 inch (28.7mm), metal heat sink design, compact size for easy installation
Buy the Buy Multicomp Bridge Rectifier Part Number GBPC35005 Online
Enhance your power systems with the high-quality GBPC35005 bridge rectifier from Multicomp. This 35A, 50V component ensures efficient rectification with low forward voltage and robust surge overload capacity up to 450A. Its versatile mounting and excellent thermal range from -50°C to +150°C make it perfect for industrial, resistive, inductive, and capacitive loads. Trusted by professionals, purchase online today for fast delivery and reliable operation in your electrical applications.
Buy Multicomp GBPC35005 now and experience unmatched reliability and high-current performance in your power supply designs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO GBPC35005?
You can click on the BUY or RFQ button to purchase GBPC35005 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part GBPC35005?
You can download the GBPC35005 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of GBPC35005?
MULTICOMP PRO
