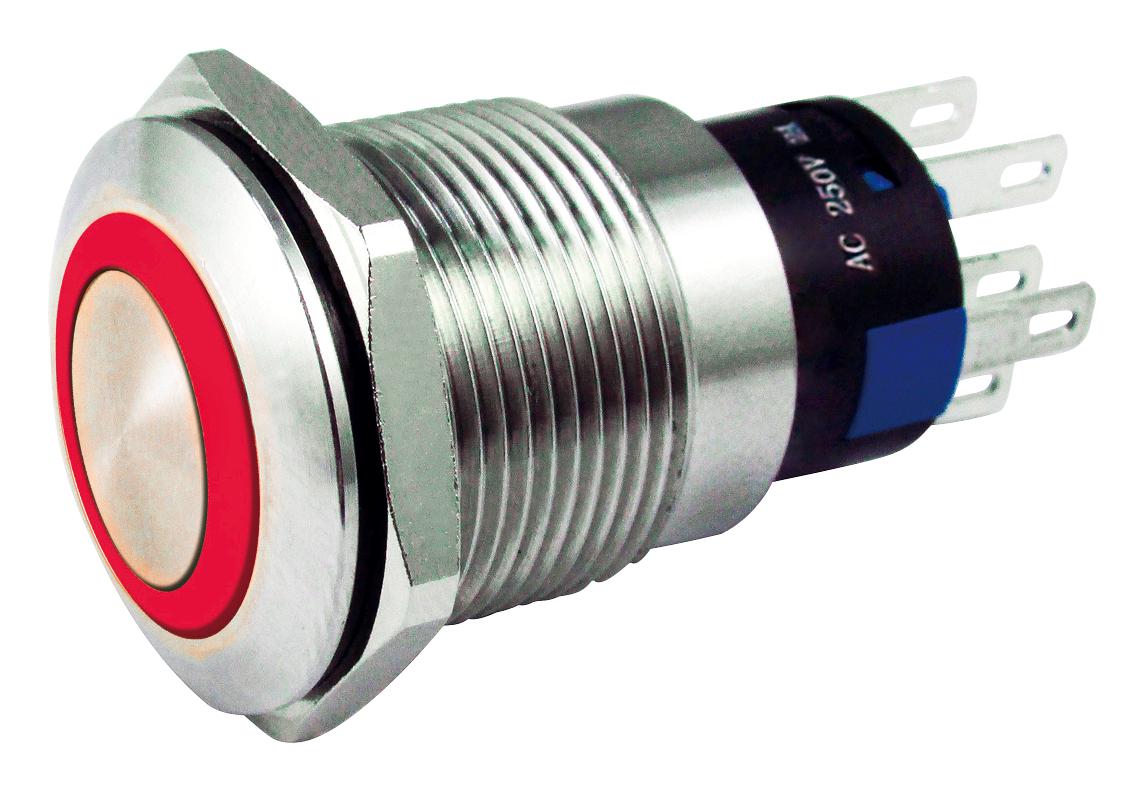

MULTICOMP PRO MC010925 Vandal Resistant Switch
The illuminated vandal resistant switch offers robust protection with options for flush or domed mount tops, suitable for harsh environments. Features include silver contact blocks, rated at 250V and 5A, with LED options in red, green, or blue. It is designed with stainless steel material, durable dielectric strength, high resistance to vibration and shock, and a degree of protection IP67, ensuring reliable operation. The switch supports multiple contact configurations like 4NO + 1NC or 2NO + 2NC, making it versatile for industrial and safety applications, with a lifespan of 1 million mechanical and 250,000 electrical cycles.
MULTICOMP PRO MC010925 Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colour: Red, Green, Blue
- Switch Operation: Maintained, Momentary
- Contact Configuration: 1NO + 1NC, 2NO + 2NC, 4NO + 1NC
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; between terminals: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, amplitude 0.5mm
- Shock Resistance: 200 m/S² Operating, 500 m/S² Damage
- Mechanical Life: 1,000,000 cycles
- Electrical Life: 250,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 122g
Buy the Multicomp Series Vandal Resistant Switch: MC010925
Enhance your security and control systems with the durable vandal resistant switch, featuring IP67 protection, LED illumination, and various contact configurations. Suitable for harsh environments, its stainless steel construction and high dielectric strength ensure longevity and reliable performance. Ideal for industrial applications, safety controls, and access panels, this switch supports both maintained and momentary operation with a lifespan of over one million cycles. Easily install this versatile switch to improve safety, control, and durability in demanding settings.
Order your multicomp series vandal resistant switch MC010925 today and give your industrial projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010925?
You can click on the BUY or RFQ button to purchase MC010925 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010925?
You can download the MC010925 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010925?
MULTICOMP PRO
