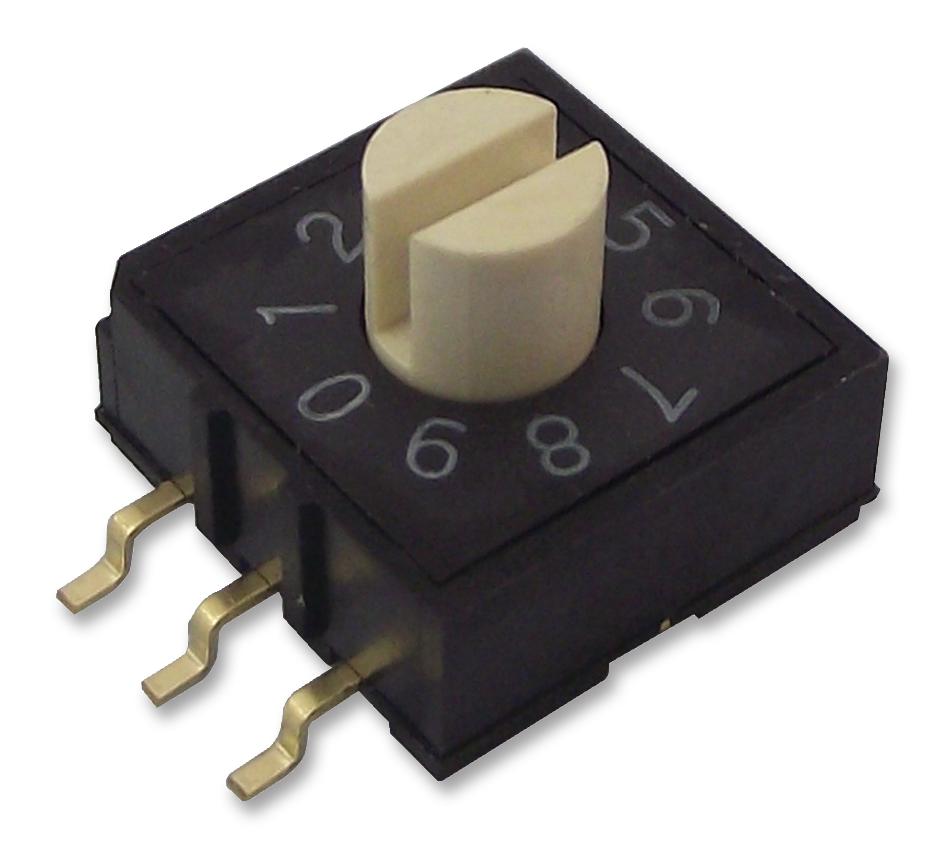

MULTICOMP PRO MCRM3MAF10RVB Rotary Switch
The Rotary Series is a versatile collection of mechanical rotary switches designed for reliable operation in diverse electronic systems. Made with UL94V-0 high-temperature thermoplastic for the base and cover, these switches support mechanical life of 20,000 steps. They feature gold-plated contacts over alloy copper, suitable for applications requiring high durability and stable electrical performance. Available in various configurations including through hole, right angle, and surface-mount, they offer multiple positions (10 or 16) and multiple circuit options, ensuring flexible integration into complex circuits. Operating temperature ranges from -25°C to +80°C, with a detailed specification for electrical ratings, dimensions, and soldering processes, making them suitable for professional electronics projects and manufacturing.
MULTICOMP PRO MCRM3MAF10RVB Rotary Switch Specifications:
- Mechanical life: 20,000 steps
- Base & Cover Material: UL94V-0 High-temp thermoplastic
- Operating Temperature: -25°C to +80°C
- Contact Material: Alloy Copper with Gold Plated over Nickel
- Electrical Life: 20,000 steps at 100mA, 50V DC
- Switching Rating: 24V DC, 25mA
- Contact Resistance: 100mΩ max. initial, 200mΩ final
- Insulation Resistance: 100MΩ at 250V DC
- Voltage Proof: 250V AC for 1 minute
- Max Operating Temperature: 255°C
- Dimensions varies depending on model, general tolerance ±0.2mm
- Soldering: Hand (max 350°C, 5 sec), Wave (max 260°C, 5 sec), Reflow (max 260°C)
Buy the Multicomp Series Rotary Switch: MCRM3MAF10RVB
Discover the quality and reliability of the Multicomp Series Rotary Switch MCRM3MAF10RVB. Perfect for industrial control, electronics development, and project automation, this switch offers 10 positions with robust gold-plated contacts. Its high-temperature thermoplastic body ensures durability in harsh environments. Easy to solder with detailed specifications for electrical ratings and mechanical life. Buy online now to get fast shipping and competitive prices on this essential component for your electronic circuits. Trust Multicomp for dependable quality.
Order your Multicomp Series rotary switch MCRM3MAF10RVB today and enhance your project with reliable, high-quality switching solutions.
