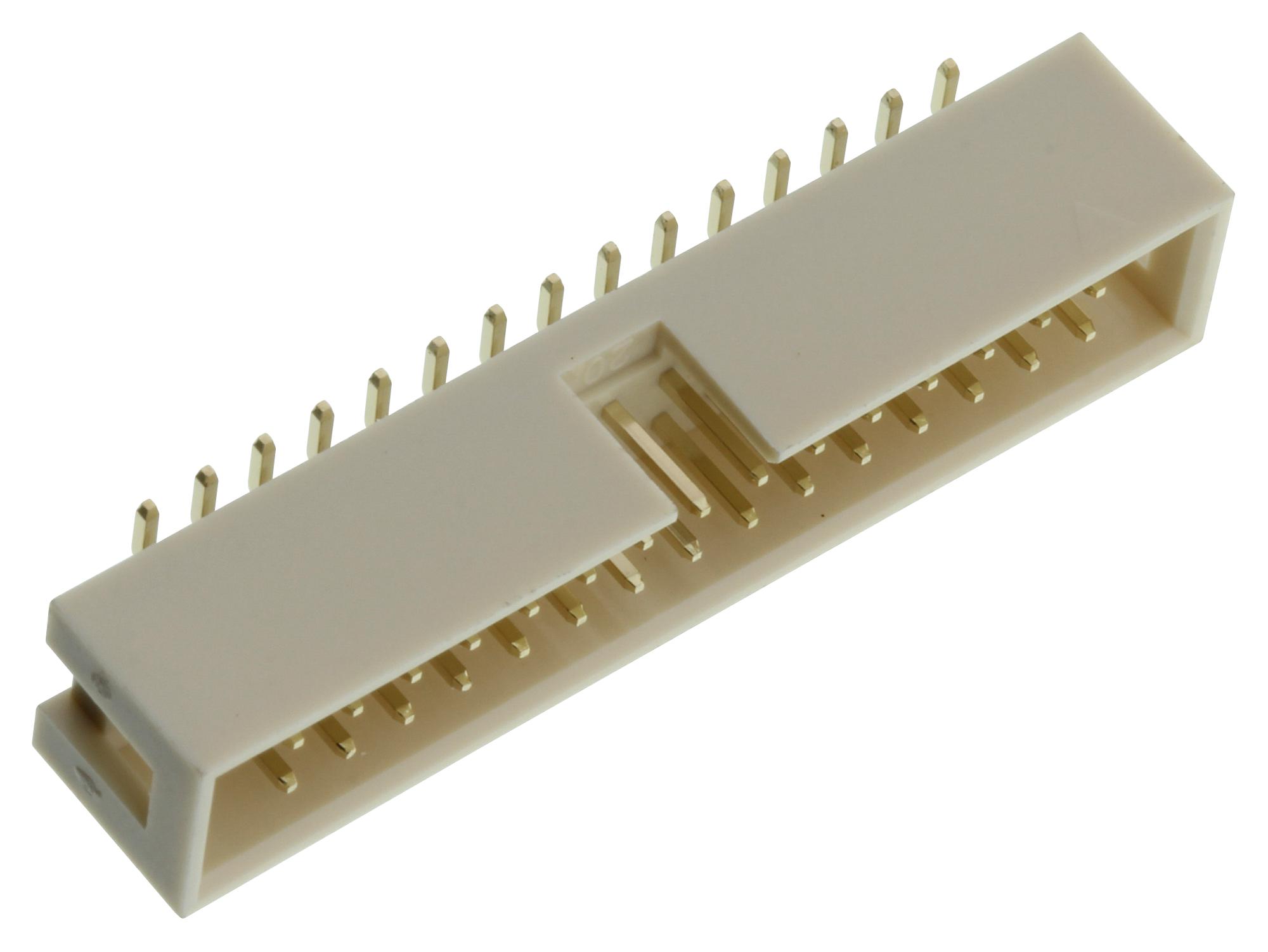

MULTICOMP PRO MC2543000STSMD Vertical Box Header
This high-quality vertical 2.54mm box header from multicomp pro is designed for surface-mount applications and features a 2-row, 6 to 34 position configuration suitable for compact electronic assemblies. Made from high temp plastic (Nylon 6T UL94V-0) and copper alloy with gold plating, it supports operation from -40°C to +105°C. Rated for 600V AC for one minute with a maximum current of 22A, it ensures durability, reliable connectivity, and RoHS compliance. Ideal for cross-connection modules and detailed PCB integration in compact, high-performance electronic projects.
MULTICOMP PRO MC2543000STSMD Vertical Box Header Specifications:
- Current Rating: 22A
- Voltage Rating: 600V AC for one minute
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Materials: High Temp Plastic (Nylon 6T UL94V-0), Copper Alloy, Gold Plated
- Operating Temperature Range: -40°C to +105°C
- Flammability: UL 94V-0
- Finish: Gold plated contacts
- Temperature Rating: -40°C to +105°C
- Dimensions: Varies by number of positions, e.g., 15.28mm to 50.84mm in length, 5.08mm to 40.64mm in width
- RoHS Compliant: Yes
- Certifications: RoHS
Buy the Multicomp Series Vertical 2.54mm Box Header: MC2543000STSMD
Purchase the Multicomp Series 2.54mm Vertical Box Header MC2543000STSMD online today and experience exceptional electrical performance and durability. Designed for surface-mount applications, this 2-row, 6 to 34 position connector features high temp plastic and gold-plated contacts for reliable connections. Withstanding voltages up to 600V, it ensures safety and efficiency in compact electronic assemblies. This RoHS-compliant component supports operating temperatures from -40°C to +105°C, making it ideal for demanding industrial and consumer electronic projects. Order now for quick delivery and top-quality performance.
Get Multicomp Series MC2543000STSMD today—built for reliable PCB connectivity with high current and temperature ratings designed for demanding electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC2543000STSMD?
You can click on the BUY or RFQ button to purchase MC2543000STSMD from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC2543000STSMD?
You can download the MC2543000STSMD datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC2543000STSMD?
MULTICOMP PRO
