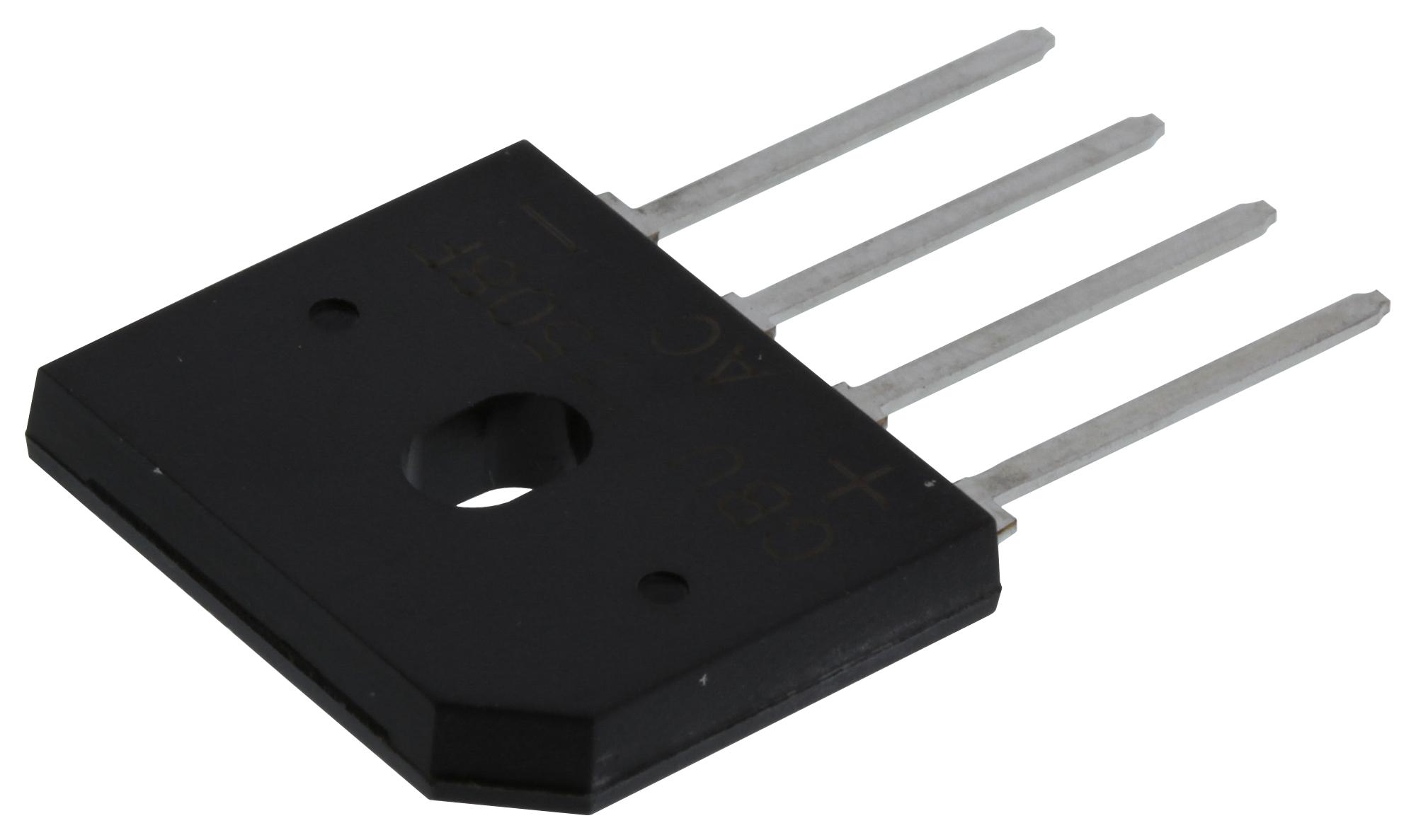

MULTICOMP PRO GBU1508F Bridge Rectifier
The GBU1508F is a low forward voltage (VF) glass passivated bridge rectifier designed for efficient rectification in electronic circuits. It features a surge overload rating of 240 amperes peak and is ideal for printed circuit board mounting. Its reliable construction uses molded plastic with UL 94V-0 flammability classification, ensuring safety and durability. Rated for maximum recurrent reverse voltage of 800V and RMS voltage of 560V, it supports currents up to 3.2A at 100°C without heatsinks, making it suitable for power conversion and high-current applications. Operating temperature ranges from -55°C to +150°C.
MULTICOMP PRO GBU1508F Bridge Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage: 800V
- Maximum RMS Voltage: 560V
- Maximum DC Blocking Voltage: 800V
- Maximum Average Forward Current: 3.2A at 100°C (without heatsink)
- Peak Forward Surge Current: 240A for 8.3ms single half sine-wave
- Maximum Forward Voltage at 7.5A DC: 0.95V
- Maximum DC Reverse Current at 25°C: 10A
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: Not specified
- Junction Capacitance: 70pF
- Mounting Type: Any
- Flammability: UL 94V-0
- Material: Molded plastic
- Dimensions: See detailed diagram with specific measurements
Buy the Buy Multicomp Pro GBU1508F Part Number GBU1508F Online
Purchase the Multicomp Pro GBU1508F bridge rectifier online now to secure high current capacity and reliable rectification for your power supply systems. This low VF, glass passivated device supports a maximum recurrent reverse voltage of 800V and a surge current of 240A, making it ideal for applications requiring durable, high-performance components. Its compact design and UL flammability classification enable versatile PCB mounting in demanding environments. Buy now and experience seamless delivery for your power electronics and industrial projects.
Order your Multicomp Pro GBU1508F bridge rectifier today and ensure reliable power conversion for your electronic projects.
