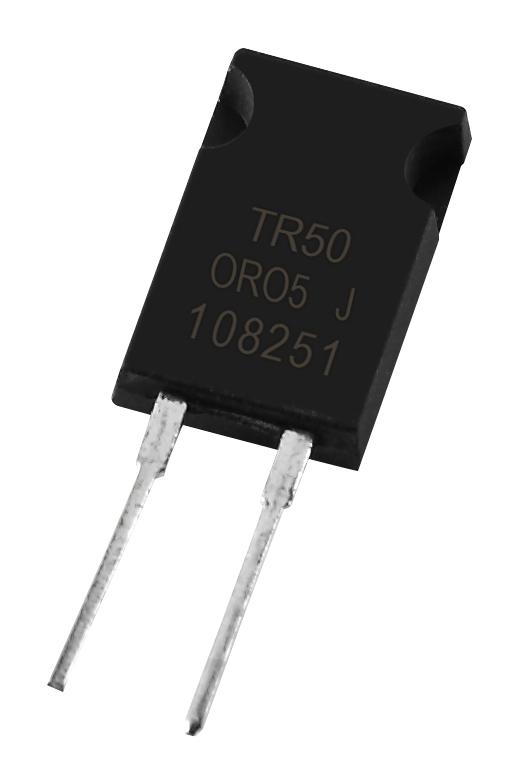

MULTICOMP-PRO MCTR50FDE4R70H Power Resistor
The MCTR50FDE4R70H is a high-power, 50-watt fixed resistor designed for efficient heat dissipation and reliable performance in power supplies and pulsing applications. Crafted with alumina substrate construction, it features a ceramic exposure design and TO-220 style package for optimal heat sink mounting. Suitable for high-frequency non-inductive circuits, this resistor offers excellent dielectric strength, insulation resistance, and thermal stability. Its robust construction ensures long-term durability in demanding environments, making it an ideal choice for industrial, electronics, and power management applications.
MULTICOMP-PRO MCTR50FDE4R70H Power Resistor Specifications:
- Power Rating: 50 Watts at 25°C case temperature, without heat sink rated for 2.25W in free air at 25°C
- Resistance Range: 10Ω to 10kΩ
- Temperature Coefficient of Resistance (TCR): ±50 ppm/°C
- Operating Voltage: Max 420V DC
- Dielectric Strength: 1,800V AC
- Insulation Resistance: ≥10 GΩ
- Resistance Tolerance: ±0.5%, ±1%, ±5%, ±10%
- Solderability: ≥90% coverage at 245±5°C for 3 seconds
- Thermal Shock: 100 cycles from -65°C to 150°C, AR ±0.3%
- Load Life: ±1.0% change after 2,000 hours at rated power, 40±2°C, 90-95% RH
- Vibration: 20g peak, AR ±40.2%
- Lead Material: Tinned Copper
- Maximum Torque: 0.9 N-m
Buy the Buy Multicomp Power Resistor Part Number MCTR50FDE4R70H Online
Purchase the Multicomp Power Resistor designed for high-power applications online today. With a 50-watt rating, alumina substrate construction, and TO-220 package, this resistor ensures excellent heat dissipation and dependable operation in demanding environments. Ideal for power supplies, pulsing applications, and high-frequency circuits, it features robust dielectric strength, insulation resistance, and thermal stability. Order now to benefit from quick delivery, competitive pricing, and the confidence of using industrial-grade resistors built for longevity and efficiency.
Order your Multicomp Series50 Watts Power Resistor today and enhance your power supply projects with reliable thermal performance and durability.
