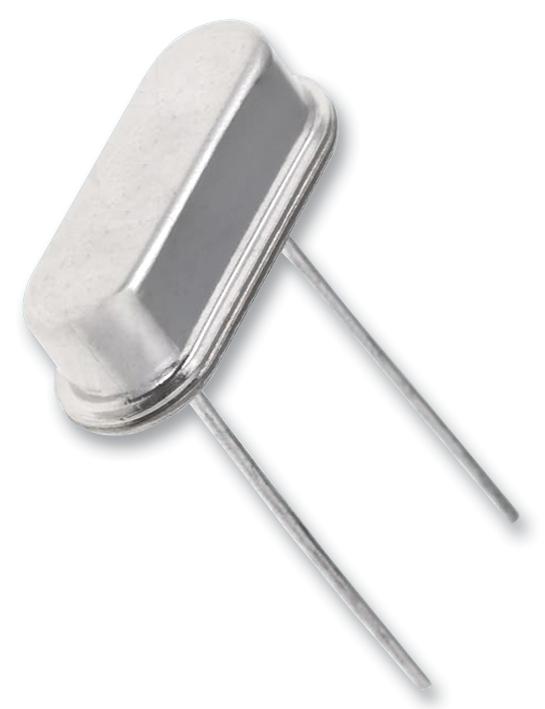

MULTICOMP PRO HC49S2030507012ATF Clock Crystal
This product from multicomp:ro is a reliable crystal suitable for clock and timing applications, offering excellent frequency stability and low load capacitance. It features a ceramic package with a low profile design ideal for space-constrained boards in industrial and microcontroller projects. The crystal operates within a frequency range of 10 to 30 MHz, with a stable temperature tolerance of +20, +30, or +50 ppm. It includes fundamental and overtone vibration modes, operating at temperatures from -20°C to +70°C, making it suitable for various industrial environments requiring accurate timing components.
MULTICOMP PRO HC49S2030507012ATF Clock Crystal Specifications:
- Nominal Frequency Range: 10 to 30 MHz
- Vibration Mode: Fundamental (AT), 3rd Overtone (AT)
- Frequency Tolerance at 25°C: +20, +30, or +50 ppm
- Temperature Stability: +30 or +50 ppm
- Operating Temperature Range: -20°C to +70°C
- Storage Temperature Range: -30°C to +80°C
- Load Capacitance: 8 pF to 33 pF or series
- Equivalent Series Resistance: See ESR table below
- Shunt Capacitance: 7 pF maximum
- Drive Level: 100 µW maximum (>5 MHz), 200 µW maximum (<5 MHz)
- Insulation Resistance: 500 MΩ minimum at 100 V DC
- Aging: +5 ppm per year
Buy the multipicomp:ro 2030507012 – Reliable Clock Crystal for Industrial Applications
Purchase your multicomp:ro 2030507012 crystal online today and ensure your timing circuits are accurate and dependable. This low-profile surface-mount device is perfect for space-constrained industrial and microcontroller applications. Operating within a frequency range of 10 to 30 MHz with stability options of +20, +30, or +50 ppm, it offers excellent temperature range performance from -20°C to +70°C. The crystal features fundamental and overtone vibration modes, low equivalent series resistance, and a maximum drive level of 100 µW, making it a cost-effective, high-quality timing solution for advanced electronics projects.
Order your multicomp:ro 2030507012 crystal today and enhance your projects with precise timing and space-saving design suitable for microcontrollers and industrial devices.
