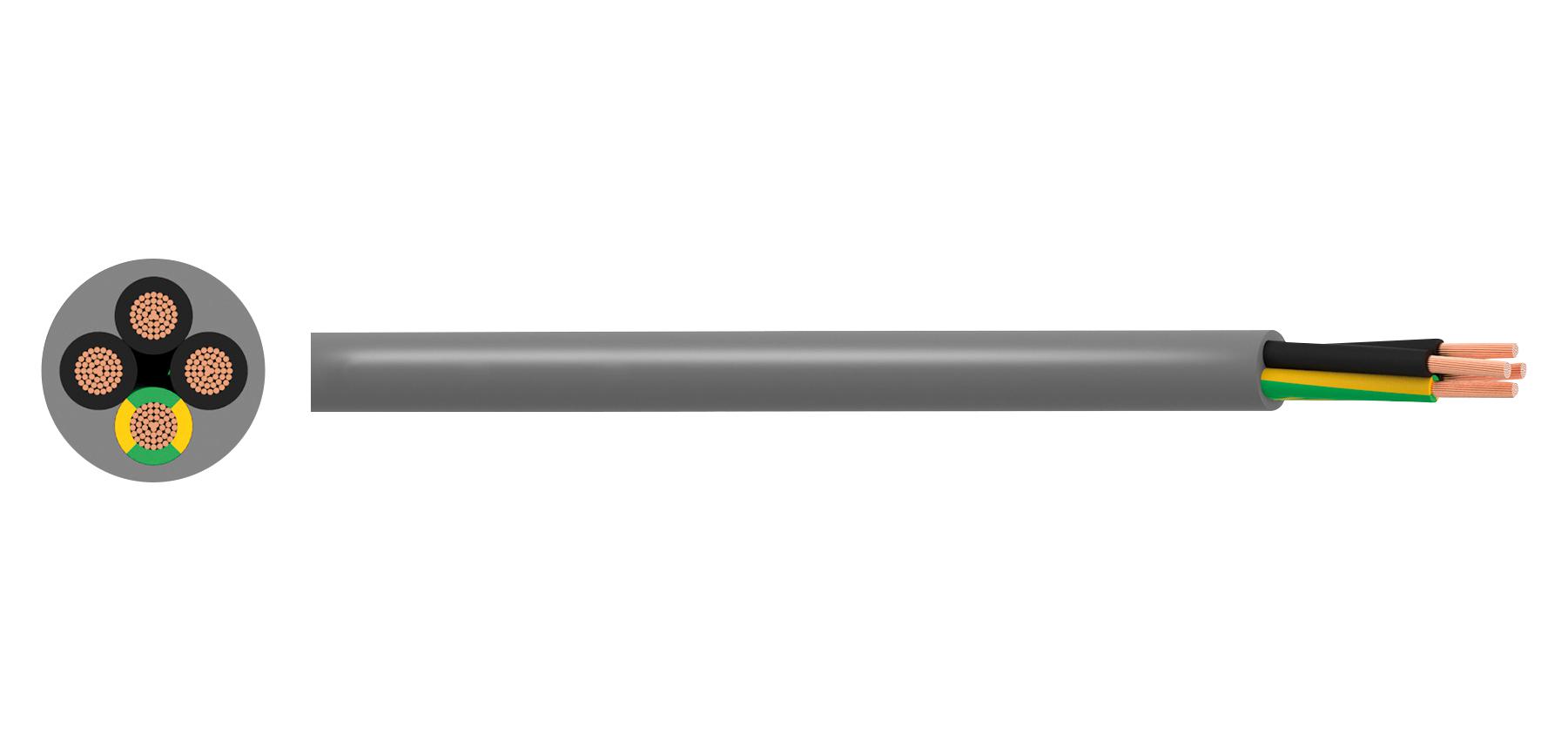

MULTICOMP-PRO PP001636 Multicore Control Cable Series
This flexible multicore control cable features PVC insulation and sheath for reliable indoor use in instrumentation, control panels, and machinery. It supports voltages up to 500V with a test voltage of 2.4kV. Suitable for dry and humid environments, it is RoHS compliant and conforms to multiple VDE standards. Its flexible design and various core sizes (from 2 to 7 cores, cross-sectional areas ranging from 0.5 to 25 mm²) ensure versatility for industrial control and automation applications. It is fire-retardant per IEC 60332-1-2, making it safe for indoor wiring.
MULTICOMP-PRO PP001636 Multicore Control Cable Series Specifications:
- Voltage Rating: 300/500V
- Test Voltage: 2.4kV
- Temperature Rating: Fixed -40°C to +80°C, Flexed -5°C to +70°C
- Minimum Bending Radius: Fixed 4 x overall diameter, Flexed 12.5 x overall diameter
- Construction: Conductor Class 5 flexible plain copper wires, Insulation PVC, Sheath PVC
- Core Identification: Black with white number, Green/Yellow for Earth
- RoHS and IEC flame retardant compliant
- Standards: VDE 0207-363-3, VDE 0285-525-2-51, IEC 60332-1-2
- Colors: Sheath Grey, core identification as per number of cores
- Core Sizes: From 2 cores (0.5 mm²) up to 8 cores (1.5 mm²), various lengths available
Buy the MultiCore Control Cable Series YY PVC: PP001636
Order the versatile Multicore Control Cable Series PP001636 online today for your indoor instrumentation and control needs. Designed with PVC insulation and sheath for durability and safety, it supports voltages up to 500V, with RoHS compliance and fire-retardant properties. Available in various core sizes from 2 to 8 cores, each cable ensures excellent flexibility, easy installation, and reliable performance in dry and humid environments. Perfect for automation, machinery, and control systems requiring durable wiring solutions.
Buy MultiCore Control Cable series PP001636 now and experience reliable indoor control wiring with flexible PVC insulation and excellent fire-retardant features.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP001636?
You can click on the BUY or RFQ button to purchase PP001636 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001636?
You can download the PP001636 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP001636?
MULTICOMP-PRO
