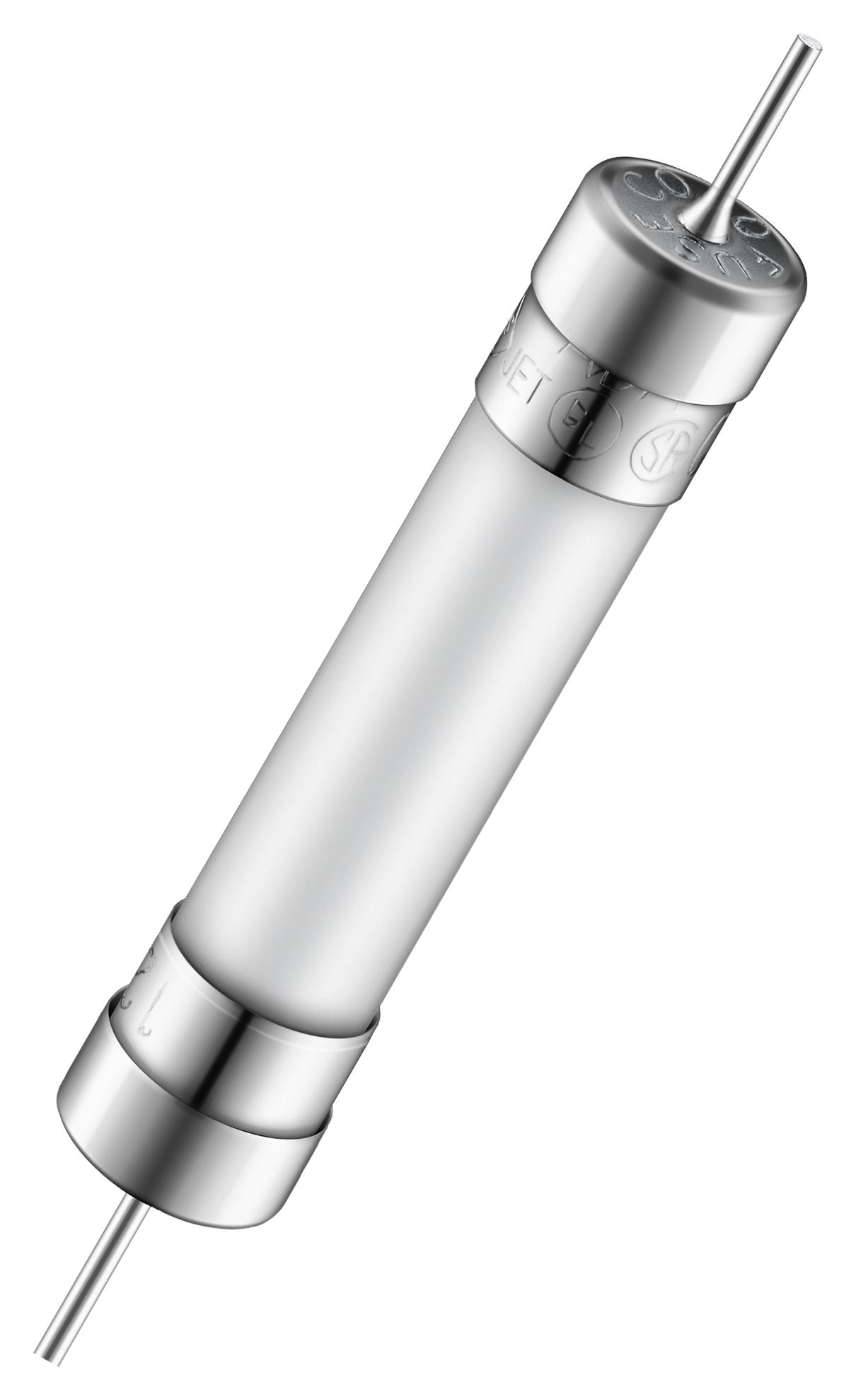

MULTICOMP PRO MP004332 Ceramic Cartridge Fuse
The Time-Lag Ceramic Cartridge Fuse is a reliable axial lead fuse designed for circuit protection. Measuring 6.3mm by 32mm, it handles ratings from 0.8A to 30A at 125V AC, with an interrupting capacity up to 10,000A. Made from ceramic with nickel-plated brass caps, it features diverse ratings and voltage compatibility for various electrical applications. Suitable for protecting sensitive electronic and electrical systems, this fuse offers quick response times and RoHS compliance, ensuring safety, durability, and high current interruption capacity in industrial and consumer electronics.
MULTICOMP PRO MP004332 Ceramic Cartridge Fuse Specifications:
- Body Material: Ceramic
- Cap Material: Nickel Plated Brass
- Lead Diameter: 0.8 mm for 12A and less, 1.0 mm for above 13A to 19A, 1.2 mm for above 20A
- Dimensions: Diameter 6.3 mm, Length 32 mm
- Operating Temperature Range: -55°C to 125°C
- Rated Current: 0.8A to 30A
- Rated Voltage: Up to 125V AC
- Interrupting Capacity: 10,000 amperes at 125V AC
- Time-Lag (Delay) Characteristic: 4 hours at rated current, with overload response at 2 seconds to 120 seconds
- RoHS Compliant
- Agency Approvals: UL Listed, CSA Certified, PSE
Buy the Buy multicomp Ceramic Cartridge Fuse Part Number MP004332 Online
Secure your electronic projects with the multicomp ceramic cartridge fuse, measuring 6.3mm by 32mm and rated from 0.8A to 30A. This high-quality fuse features ceramic body construction with nickel plated brass caps, providing excellent electrical insulation and durability. It supports voltages up to 125V AC and boasts a high interrupting capacity of 10,000A, making it suitable for protecting sensitive electronic systems and industrial circuits. Easy to install and RoHS compliant, it guarantees safety and reliable performance in various electrical applications.
Buy multicomp MP004332 ceramic cartridge fuse now and experience unmatched reliability and quick circuit protection with high interrupting capacity.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004332?
You can click on the BUY or RFQ button to purchase MP004332 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004332?
You can download the MP004332 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004332?
MULTICOMP PRO
