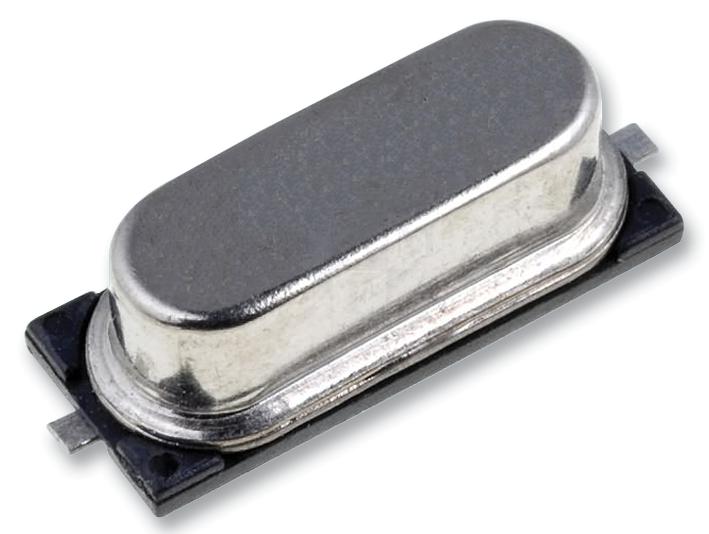

MULTICOMP PRO HC49SM1230506016ATF Surface Mount Crystal
The HC49SM-12-30-50-60-16-ATF is a low-profile surface-mount crystal measuring 11.4 x 4.65mm, ideal for space-constrained applications. It features a robust ceramic package with superior resistance weld construction for durability. Suitable for industrial, clock, timing, and automation systems, it offers a load capacitance of 16pF, frequency tolerance of ±30ppm at 25°C, and an aging rate of ±5ppm per year. Operating in fundamental mode with an ESR of 50Ω, it ensures stable, reliable performance in critical electronic circuits.
MULTICOMP PRO HC49SM1230506016ATF Surface Mount Crystal Specifications:
- Dimensions: 11.4 x 4.65 mm
- Load Capacitance: 16pF
- Frequency Tolerance: ±30ppm at 25°C
- Aging Rate: ±5ppm per year
- Operating Temperature Range: -10°C to +60°C
- Storage Temperature Range: -20°C to +70°C
- Insulation Resistance: 500MΩ at 100V DC
- ESR: 50Ω
- Mode: Fundamental
- Material: Ceramic case
- Mounting Type: Surface-mount
- Vibration Mode: Fundamental
Buy the Buy Multicomp Surface Mount Crystal Part Number HC49SM1230506016ATF Online
Purchase the Multicomp surface mount crystal HC49SM1230506016ATF online for precise, durable timing solutions. Its compact size and robust ceramic case make it ideal for applications with limited board height. With a load capacitance of 16pF, a frequency tolerance of ±30ppm, and excellent stability, this crystal ensures accurate clock signals for industrial automation, microcontrollers, and communication devices. Taped and ready for quick deployment, it offers reliable performance and easy integration in high-density electronic designs. Order now and benefit from fast delivery and quality assurance.
Get Multicomp HC49SM1230506016ATF today—built for space-efficient, reliable timing and clock applications in industrial electronics.
Frequently Asked Questions
Where can I buy MULTICOMP PRO HC49SM1230506016ATF?
You can click on the BUY or RFQ button to purchase HC49SM1230506016ATF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part HC49SM1230506016ATF?
You can download the HC49SM1230506016ATF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of HC49SM1230506016ATF?
MULTICOMP PRO
