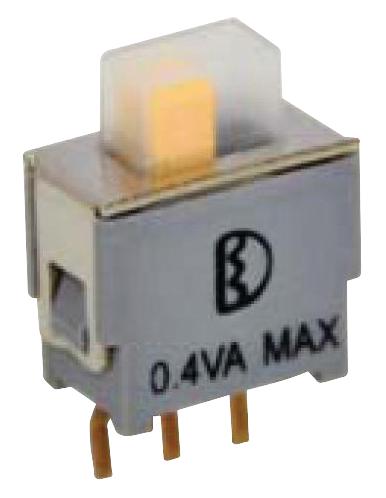

MULTICOMP PRO MC5SES3S105M2RES Miniature Waterproof Slide Switch
Miniature slide switches designed for PCB mounting with IP67 protection, offering SPDT and DPDT configurations. These switches feature a durable, epoxy-sealed terminal seal, and are suitable for applications requiring reliable ON-NON-ON or ON-OFF-ON switching. With a contact resistance of 50mQ and dielectric strength of 500 V, they operate efficiently within a temperature range of -20°C to 80°C. Made using PBT and brass materials, they are ideal for industrial environments demanding waterproof and vibration-resistant switch solutions.
MULTICOMP PRO MC5SES3S105M2RES Miniature Waterproof Slide Switch Specifications:
- Max. Contact Rating: 0.4V Aat 48 V AC/DC
- Mechanical Life: 40,000 operations
- Max. Contact Resistance: 50mQ
- Insulation Resistance: 500MQ at 250V DC
- Dielectric Strength: 500 V, 50 Hz for 1 minute
- Operating Temperature: -20°C to 80°C
- Degree of Protection: IP67
- Housing Material: PBT, yellow standard
- Terminal Seal: Epoxy
- Contact Material: Brass, tin plated; Phosphor bronze, gold-plated
- Mounting Type: PCB
- Configurations: SPDT, DPDT, ON-NON-ON, ON-OFF-ON
- Soldering Process: Wave or vapour phase, maximum 260°C for 5 seconds
- Dimensions: Vary by model, typical mounting length approx. 28mm
Buy the Buy Multicomp Miniature Slide Switch Part Number MC5SES3S105M2RES Online
Secure your project by purchasing the Multicomp waterproof miniature slide switch online today. Designed with IP67 protection, epoxy-sealed terminals, and robust metal contacts, this switch offers durability and dependable performance. Ideal for industrial, automation, and control applications, it withstands harsh environments with operating temperatures from -20°C to 80°C. Easy to install on PCB with wave or vapour phase soldering, the switch supports multiple configurations including SPDT and DPDT. Get yours now for a reliable, long-lasting switching solution.
Order your Multicomp SeriesMC5SES3S105M2RES waterproof miniature slide switch today and ensure reliable performance in harsh industrial environments.
