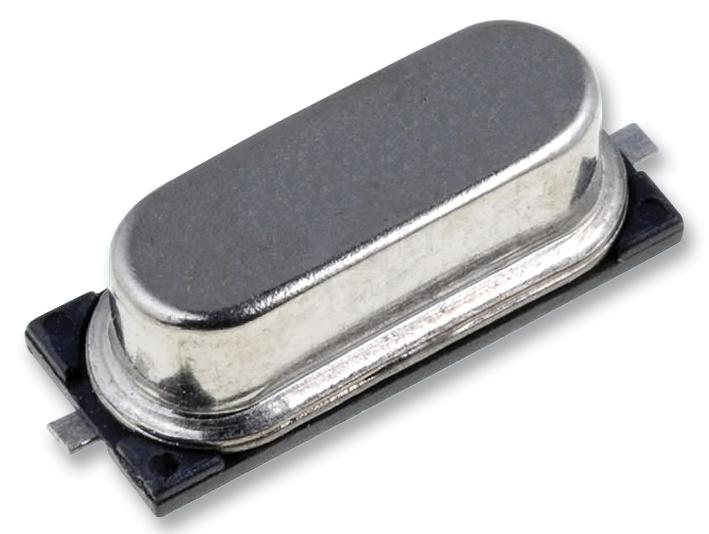

MULTICOMP PRO HC49SM830506016ATF Surface Mount Crystal
The HC49SM-8-30-50-60-16-ATF from Multicomp Pro is a compact, surface mount crystal designed for accurate timing in industrial and microcontroller applications. With a size of 11.4mm by 4.65mm, it operates at 8 MHz, offering a frequency tolerance of ±30 ppm and temperature stability of ±50 ppm. Its load capacitance of 16pF ensures stable oscillation within a -10°C to 60°C temperature range. This reliable, cost-effective crystal features a high Q factor, making it ideal for microcontroller clock circuits and frequency control, while the metal case provides superior resistance weld for durability and RoHS compliance.
MULTICOMP PRO HC49SM830506016ATF Surface Mount Crystal Specifications:
- Nominal Frequency Range: 8 MHz
- Size: 11.4mm x 4.65mm
- Frequency Tolerance: ±30 ppm at 25°C
- Temperature Stability: ±50 ppm
- Operating Temperature Range: -10°C to 60°C
- Storage Temperature Range: -20°C to 70°C
- Load Capacitance: 16pF
- Vibration Mode: Fundamental (AT)
- Quality Factor (Q): 3,000
- Insulation Resistance: 500 MΩ minimum at 100V DC
- Aging: +5 ppm per year
- RoHS Compliant
- Material: Metal case for resistance weld
- Drive Level: 200 μW maximum (<5 MHz), 100 μW maximum (>5 MHz)
Buy the Buy Multicomp Crystal Part Number HC49SM830506016ATF Online
Purchase the Multicomp SeriesHC49SM830506016ATF crystal online today to enhance your industrial, microcontroller, and oscillator circuits. This cost-effective, RoHS-compliant surface mount device offers a compact size of 11.4mm by 4.65mm, operating at 8 MHz with a tolerance of ±30 ppm and stability of ±50 ppm. Its high Q factor ensures reliable oscillation, making it ideal for clock and timing applications. Delivered in a metal case for durability, this crystal is a perfect choice for engineers seeking precise frequency control in demanding environments.
Order your Multicomp SeriesHC49SM830506016ATF surface mount crystal today and ensure your projects have precise, reliable timing components.
Frequently Asked Questions
Where can I buy MULTICOMP PRO HC49SM830506016ATF?
You can click on the BUY or RFQ button to purchase HC49SM830506016ATF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part HC49SM830506016ATF?
You can download the HC49SM830506016ATF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of HC49SM830506016ATF?
MULTICOMP PRO
