MULTICOMP PRO HC49U4915230507030ATF High-Precision Crystal Oscillator
This component is designed for clock and timing applications, providing precise frequency signals across a broad range of frequencies from 1.8 MHz to 200 MHz. It features a well-established, cost-effective design with superior resistance welds in a metal case, suitable for industrial, microcontroller, and general electronics use. Operates efficiently within temperature ranges of -10°C to +60°C, with options for wider ranges. The device offers low ESR, a maximum drive level of 200 µW, and is RoHS compliant, ensuring high-quality performance in various electronic timing and signal synchronization tasks.
MULTICOMP PRO HC49U4915230507030ATF High-Precision Crystal Oscillator Specifications:
- Nominal Frequency Range: 1.8 to 200 MHz
- Frequency Tolerance at 25°C: +20 or +30 ppm
- Temperature Stability: +30 or +50 ppm
- Operating Temperature Range: -10°C to +60°C (option: -20°C to +70°C)
- Storage Temperature Range: -20°C to +70°C (option: -30°C to +80°C)
- Load Capacitance: 8 pF to 32 pF or series
- Equivalent Series Resistance: See ESR table below
- Shunt Capacitance: Max 5pF at 18 MHz or 7pF above 18 MHz
- Drive Level: Max 200 µW (<5 MHz), 100 µW (>5 MHz)
- Insulation Resistance: ≥ 500 MΩ at 100V DC
- Aging: ±5 ppm/year
- Vibration Mode: Fundamental (AT), 3rd Overtone (AT), 5th Overtone (AT)
- Dimensions: Millimetres, case sizes vary with frequency and model

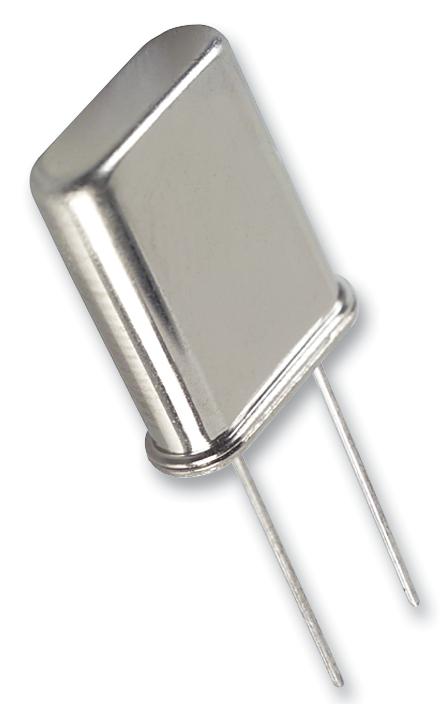

Buy the Multicomp HC49U – Reliable Crystal for Industrial Applications
Enhance your electronic timing systems with this high-precision crystal oscillator, suitable for industrial, microcontrollers, and general electronics. It covers a broad frequency range from 1.8 MHz to 200 MHz, ensuring accurate timing and synchronization. Featuring low ESR, RoHS compliance, and a durable metal case, this crystal is perfect for demanding applications. The device operates efficiently within specified temperature ranges, offering reliable, high-quality performance for critical timing applications in various electronic devices.
Order your multicomp HC49U series crystal today and ensure precise timing signals for your industrial or microcontroller projects.
