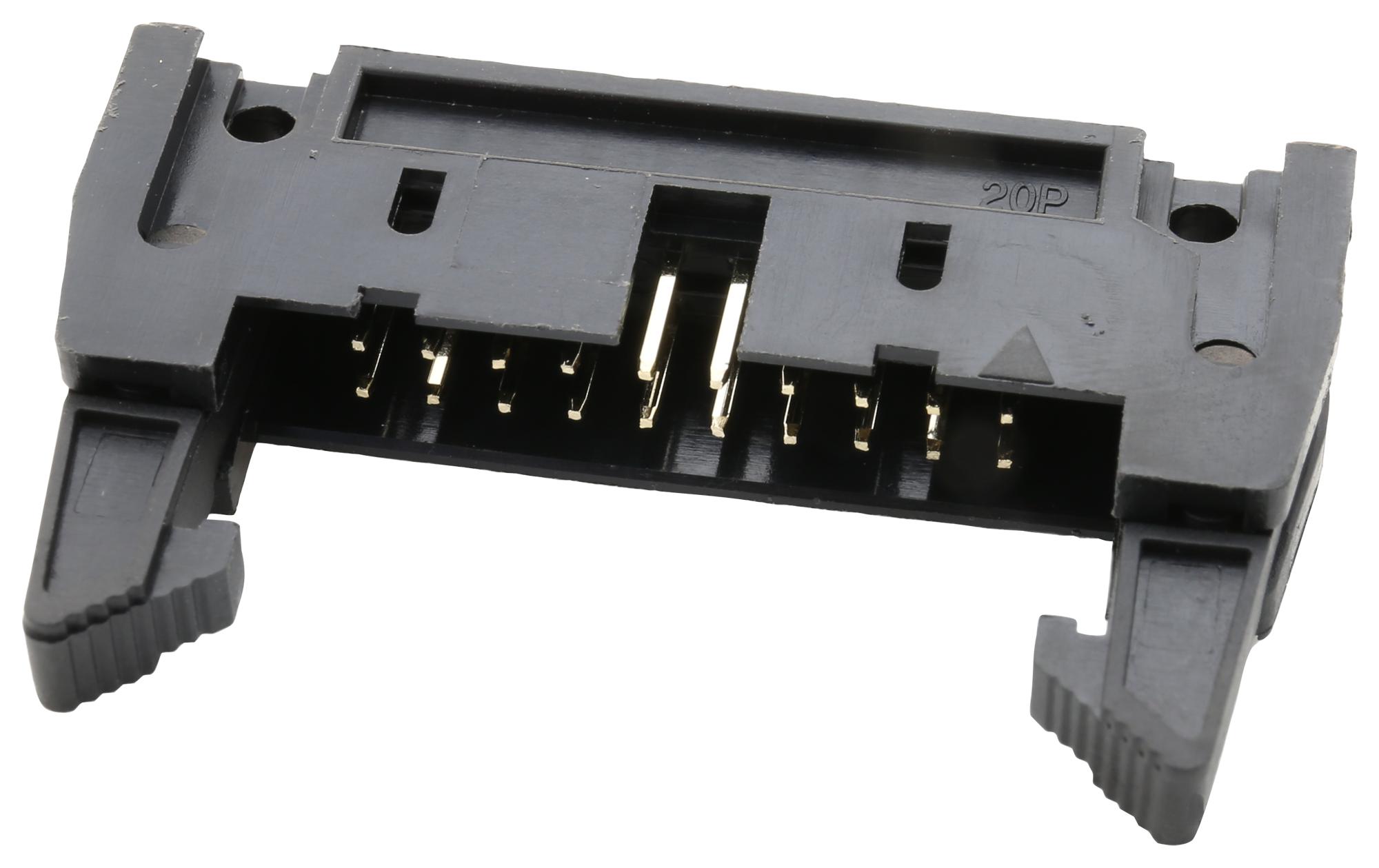

MULTICOMP PRO MC25420SLRADIP Double Row Shrouded Header
This double-row, 2.54mm shrouded header with ejector offers reliable connections for through-hole applications. Available in short and long ejector variants, it supports various pin counts from 10 to 64 positions. Made from UL94V-0 rated PBT plastic with gold-plated copper alloy contacts, it ensures durability and corrosion resistance. Operating within -40°C to +105°C temperature range, it withstands voltages up to 600V AC for one minute. Its dimensions vary by model, with pin spacing of 2.54mm, suitable for PCB mounting in industrial and electronic equipment.
MULTICOMP PRO MC25420SLRADIP Double Row Shrouded Header Specifications:
- Pin Spacing: 2.54mm
- Number of Positions: 10, 14, 16, 20, 26, 34, 40, 50, 60, 64
- Row: Double
- Ejector Type: Short or Long
- Type: Through Hole
- Material: PBT (UL94V-0)
- Contact Material: Copper Alloy
- Plating: Gold
- Operating Temperature Range: -40°C to +105°C
- Voltage Rating: 600V AC for one minute
- Current Rating: 8 AAC/DC
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 1000MΩ Min
Buy the Multicomp Series Double Row 2.54mm Shrouded Header: MC25420SLRADIP
Enhance your electronic assemblies with this high-reliability double-row 2.54mm shrouded header with ejector. Designed for through-hole PCB applications, it features gold-plated copper contacts for optimal conductivity and corrosion resistance. Available in multiple pin configurations, it supports voltage ratings up to 600V AC and operates from -40°C to +105°C. Made from UL94V-0 plastic with a compact design, this header ensures secure connections and long-lasting performance, making it an essential component for robust electronic projects.
Order your Multicomp SeriesMC25420SLRADIP today and give your electronics reliable, high-quality PCB connectivity with durable contact plating.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC25420SLRADIP?
You can click on the BUY or RFQ button to purchase MC25420SLRADIP from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC25420SLRADIP?
You can download the MC25420SLRADIP datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC25420SLRADIP?
MULTICOMP PRO
