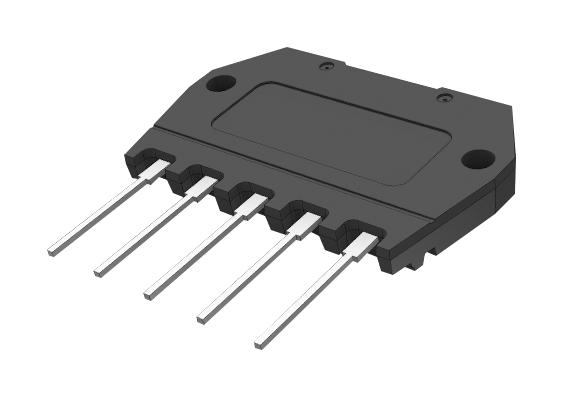

MULTICOMP PRO HGBJ2508 Three-Phase Bridge Rectifier
The HGBJ2508 is a glass passivated three-phase bridge rectifier designed for high reliability power conversion applications. Its features include low forward voltage drop, insulation voltage of 2,500V, compact size, and lightweight construction, ideal for power supplies of DC equipment, PWM converter input rectification, and DC motor drives. With a peak repetitive voltage of 800V and a maximum average forward rectified current of 25A at 110°C, this bridge rectifier delivers reliable performance in various industrial power systems. Its thermal resistance is 0.8°C/W, operating temperature ranges from -55°C to +150°C, and it is UL Listed and CSA Certified.
MULTICOMP PRO HGBJ2508 Three-Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 800V
- Peak Non-Repetitive Reverse Voltage VrsM: 900V
- Maximum Average Forward Rectified Current: 25A at 110°C
- Peak Forward Surge Current: 350A at 8.3ms
- Maximum Forward Voltage Drop: 14V at Vr
- Reverse Peak Current: 5pA at Vr = VrrM @ 25°C
- Reverse Peak Current: 3mA at VrsM @ 150°C
- Insulation Voltage from Case to Lead: 2,500V
- Thermal Resistance: 0.8°C/W
- Operating Temperature Range: -55°C to +150°C
- Mounting Torque: 0.8 N.m
- Weight: 10 g
Buy the Buy Multicomp 3 Phase Bridge Rectifier Part Number HGBJ2508 Online
Purchase the Multicomp three-phase bridge rectifier HGBJ2508 online to ensure high reliability and efficiency for power supply, PWM conversion, and motor control systems. This compact and lightweight device features a high insulation voltage of 2,500V, a peak repetitive voltage of 800V, and a continuous forward current of 25A at 110°C. Designed for robust industrial power applications, it offers excellent thermal conductivity, low temperature rise, and conforms to UL and CSA standards, making it ideal for demanding electrical environments.
Buy Multicomp HGBJ2508 now and experience unmatched reliability and performance with compact design and high thermal efficiency for power applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO HGBJ2508?
You can click on the BUY or RFQ button to purchase HGBJ2508 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part HGBJ2508?
You can download the HGBJ2508 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of HGBJ2508?
MULTICOMP PRO
