MULTICOMP-PRO MCCSM12FTDTR051 Current Sensing Resistor
High-reliability current sensing resistor designed for power electronic systems, featuring metal foil construction for low TCR and stable performance. Suitable for current detection in switching power supplies, VRMs, battery packs, and overcurrent protection applications, these resistors come in surface-mount types with various resistance ranges and sizes. Engineered for accuracy and thermal stability, the device supports multiple reflow soldering cycles and meets stringent environmental standards. Ideal for compact, high-power density applications requiring precise current measurement and durability under demanding conditions.
MULTICOMP-PRO MCCSM12FTDTR051 Current Sensing Resistor Specifications:
- Size: MCCSMO6 (3.05x1.55x0.58 mm), MCCSM12 (6.3x3.15x0.55 mm)
- Resistance Range: 10-29 mΩ, 30-100 mΩ
- Power Rating: 0.5W, 1W
- Temperature Coefficient of Resistance: ±50 PPM/°C
- Operating Temp: -55°C to +155°C
- Operating Voltage: Calculated based on Power and Resistance
- Maximum Overload Voltage: 2.5 times the operating voltage
- Soldering Conditions: IR reflow at 260°C for 10s, wave soldering at 260°C for 10s
- Environmental Testing: Includes thermal shock, damp heat, and resistance to soldering heat
- Packaging: Reels of 4,000 to 5,000 units with specified tape and carrier dimensions

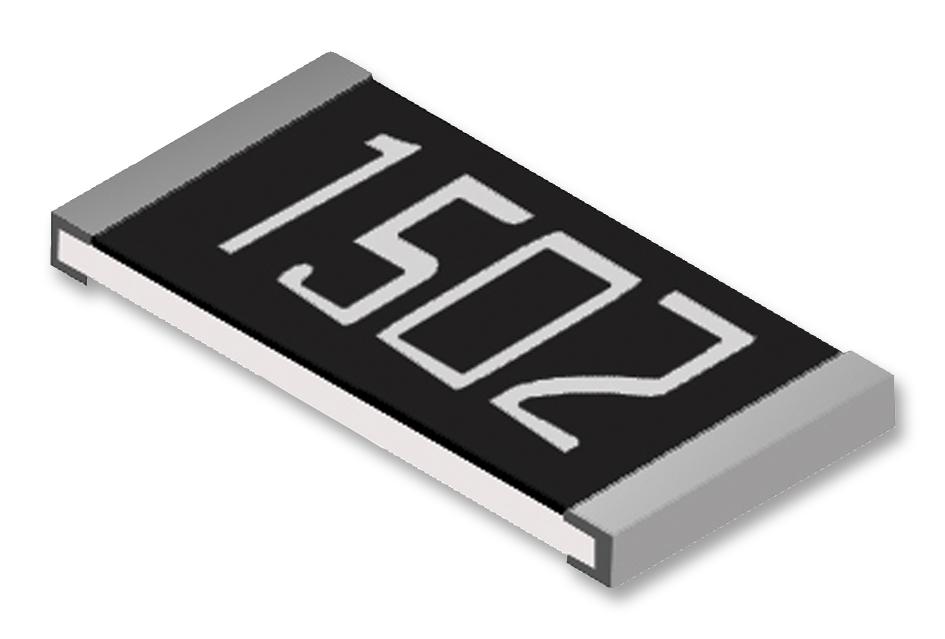

Buy the Buy multicomp Current Sensing Metal Chip Resistors Part Number MCCSM12FTDTR051 Online
Order the multicomp MCCSM12FTDTR051 current sensing resistor online to ensure high reliability, accurate current detection, and excellent thermal stability. Designed for power management applications, switching power supplies, voltage regulation modules, and overcurrent protection in compact electronic systems, this surface-mount component offers stable performance across a wide temperature range. Its robust construction and precise resistance values help optimize circuit functionality and longevity. Buy now to upgrade your power circuits with a high-quality, easy-to-install resistor tailored for demanding environments and long-term reliability.
Get multicomp MCCSM12FTDTR051 today—engineered for stable, accurate current measurement in power electronic systems.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCCSM12FTDTR051?
You can click on the BUY or RFQ button to purchase MCCSM12FTDTR051 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCCSM12FTDTR051?
You can download the MCCSM12FTDTR051 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCCSM12FTDTR051?
MULTICOMP-PRO
