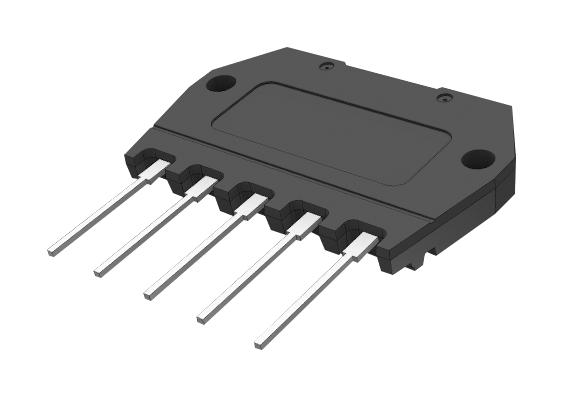

MULTICOMP PRO HGBJ3512 3 Phase Bridge Rectifier
The Glass Passivated 3 Phase Bridge Rectifier is ideal for converting AC to DC power in industrial and electronics applications. Featuring high reliability, low forward voltage drop, and insulation voltage of 2,500V, it offers small size, lightweight design, and excellent thermal performance for power supply and PWM converter input rectification. Rated for voltages up to 1,200V and currents of 38A, with high surge and peak repetitive voltages, it ensures efficient and durable operation under various load conditions, making it suitable for DC motors and power supplies.
MULTICOMP PRO HGBJ3512 3 Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 1200 V
- Peak Non-Repetitive Reverse Voltage VrsM: 1300 V
- Maximum Average Forward Rectified Current: 38 A
- Peak Forward Surge Current: 400 A
- Maximum Forward Voltage Drop: 14 V
- Reverse Peak Current: 5 pA at Vr = VrrM at 25°C
- RMS Isolation Voltage from Case to Lead: 2,500 V
- Thermal Resistance (junction to case): 0.8 °C/W
- Operating Temperature Range: -55°C to +150°C
- Weight: 10 g
- Insulation Voltage: 2,500 V
- Mounting Torque: 0.8 N·m
- Dimensions (approximate): 1.874 in x 0.689 in x 0.304 in (47.6 mm x 17.5 mm x 7.72 mm)
Buy the Buy Multicomp Pro Glass Passivated 3 Phase Bridge Rectifier Part Number HGBJ3512 Online
Order the Multicomp Pro 3 Phase Bridge Rectifier HGBJ3512 online today to ensure your power supply and motor control systems operate efficiently and reliably. Designed for high voltage and current applications, it offers excellent thermal performance, low forward voltage drop, and high insulation voltage of 2,500V, making it suitable for industrial environments, PWM converters, and DC motor power supplies. With compact size and robust construction, this rectifier ensures long-term durability and optimal electrical performance for your critical projects.
Get Multicomp Pro HGBJ3512 today—built for high reliability, efficient power conversion, and long-lasting durability in industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO HGBJ3512?
You can click on the BUY or RFQ button to purchase HGBJ3512 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part HGBJ3512?
You can download the HGBJ3512 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of HGBJ3512?
MULTICOMP PRO
