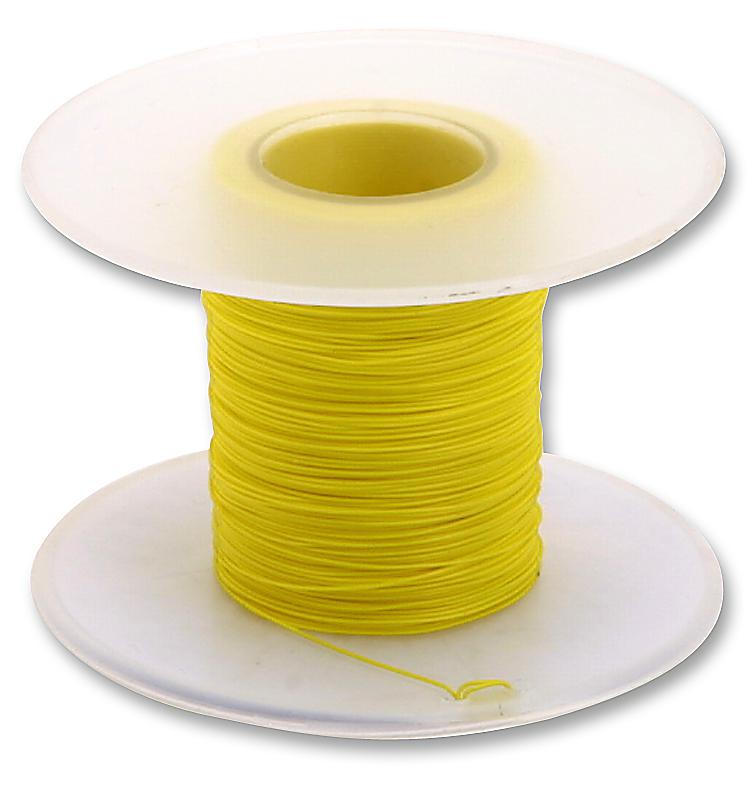

MULTICOMP-PRO 10030Y industrial wrapping wire
The 100-30Y is a 100-meter length of yellow KYNAR wrapping wire with a 30 AWG gauge. It features a single, silver-plated, oxygen-free copper conductor rated according to ASTM-B 170 standards. The wire is insulated with a durable polyvinylidene fluoride (PVDF) jacket, suitable for applications requiring high chemical resistance and temperature stability. Operating temperature ranges from -60°C to +105°C. The wire exhibits a DC resistance of 106 ohms per meter. It is rated for industrial use and is part of Pro Power's product line, which has received high customer ratings and includes a 12-month limited warranty. It is recommended for various industrial applications.
MULTICOMP-PRO 10030Y industrial wrapping wire Specifications:
- Conductor Size: 30 AWG, solid
- Conductor Material: Silver plated oxygen free copper
- Conductor Minimum Circular Mil Area: 198
- Conductor plating: Silver, 40 micro inch minimum
- Operating Temperature: -60°C to +105°C
- Voltage Rating: 300 V
- Insulation Material: Kynar 460 (PVDF)
- Minimum Wall Thickness: 0.004 inches
- Diameter: 0.0195 inches + 0.001 inches
- Spark Test: 2,000 V ac RMS
- Weight per Meter: 0.168 lbs
- Total Weight: 0.47 lbs per 100 meters
- DC Resistance at 20°C: 106 ohms per meter
- Insulation Color: Yellow
- Length: 100 meters
Buy the Pro Power Series KYNAR Wrapping Wire: 10030Y
Purchase the Pro Power 10030Y yellow KYNAR wrapping wire online today. This 30 AWG, high-temperature rated wire features a silver-plated oxygen-free copper conductor and durable PVDF insulation, making it ideal for industrial and automation applications. With a length of 100 meters, it is suitable for various electronic assembly, insulation, and wrapping needs. Enjoy fast delivery, competitive pricing, and the confidence of quality tested components designed to meet your high-performance standards.
Buy Pro Power 10030Y now and experience reliable insulation and high conductivity for industrial wire wrapping applications.
