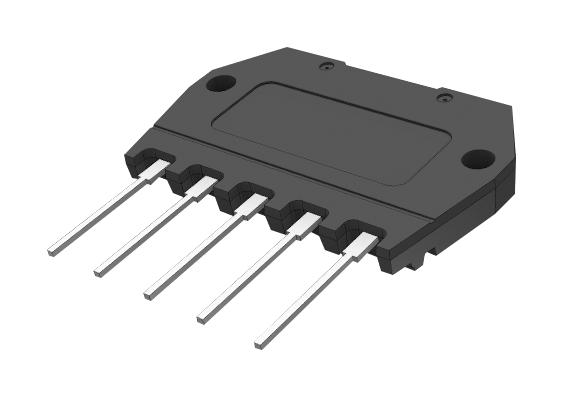

MULTICOMP PRO HGBJ3516 Three-Phase Bridge Rectifier
The HGBJ3516 is a glass passivated three-phase bridge rectifier designed for high-reliability power conversion applications. It features low forward voltage drop, insulation voltage of 2,500V, small size, and lightweight construction. Suitable for DC power supplies, PWM converter inputs, and DC motor drives, this rectifier offers peak repetitive voltages up to 1,600V and RMS isolation from case to lead. It has a maximum average forward rectified current of 38A, low thermal resistance, and is rated for operating temperatures from -55°C to +150°C, ensuring efficient thermal management in demanding environments.
MULTICOMP PRO HGBJ3516 Three-Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 800V to 1,600V
- Peak Non-Repetitive Reverse Voltage VrsM: 900V to 1,700V
- Maximum Average Forward Current Iw: 38A
- Peak Forward Surge Current Irsm: 400A
- Maximum Forward Voltage Drop: 14V at Vr
- Reverse Peak Current Vr = VrrM @ Ts=25°C: 5 pA
- RMS Isolation Voltage: 2,500V
- Thermal Resistance Resc: 0.8°C/W
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: Not specified
- Dimensions (in inches/millimetres): Length varies with model, approximately 1.87 to 7.83 inches (47.6 to 199 mm), width approximately 0.3 inches (7.72 mm)
- Weight: 10 grams
- Mounting Torque: 0.8 N·m for M3
- Insulation Voltage: 2,500V
Buy the Multicomp Series Bridge Rectifier: HGBJ3516
Purchase the Multicomp Series HGBJ3516 three-phase bridge rectifier online today to ensure efficient and reliable conversion of AC to DC power. With a high insulation voltage of 2,500V and a maximum average forward current of 38A, this rectifier is ideal for power supply, PWM inverter input, and DC motor drive applications. Its compact size and lightweight design make it suitable for various industrial environments. Experience quick online ordering and fast delivery to enhance your power electronics projects with a proven, durable solution supporting temperatures from -55°C to +150°C.
Get Multicomp Series HGBJ3516 today—built for high-voltage power conversion and reliable performance in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO HGBJ3516?
You can click on the BUY or RFQ button to purchase HGBJ3516 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part HGBJ3516?
You can download the HGBJ3516 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of HGBJ3516?
MULTICOMP PRO
