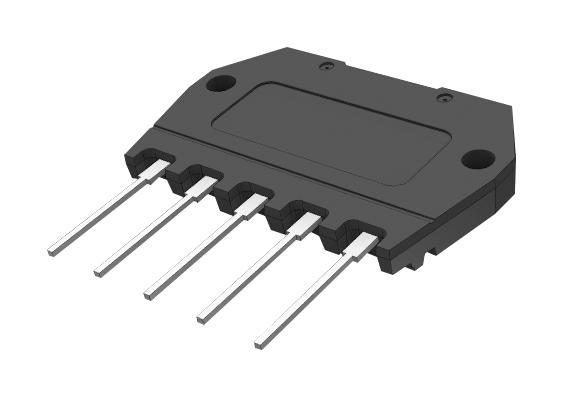

MULTICOMP PRO HGBJ5010 Three-Phase Bridge Rectifier
The HGBJ5010 is a glass passivated three-phase bridge rectifier designed for high reliability in power supply applications. It features a low forward voltage drop, high insulation voltage of 2,500V, and a compact, lightweight design with small thermal resistance and high thermal conductivity for efficient heat dissipation. Suitable for DC equipment power supplies, PWM converter input rectification, and DC motor drives, it handles a maximum rectified current of 50A, with peak surge currents of 450A. The device is ideal for demanding industrial and electronic power systems requiring robust performance and durability.
MULTICOMP PRO HGBJ5010 Three-Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 1000 V
- Peak Non-Repetitive Reverse Voltage VrsM: 1100 V
- Maximum Average Forward Rectified Current Iw: 50 A
- Peak Forward Surge Current Irsm: 450 A
- Maximum Forward Voltage Drop: 17.5 V at Vr
- Reverse Peak Current Vr VrrM: 5 pA at 25°C, 3 mA at 150°C
- Isolation Voltage Viso: 2,500 V
- Thermal Resistance Resc: 0.8 °C/W
- Operating Temperature Range: -55°C to +150°C
- Weight: 10 g
- Mounting Torque: 0.8 N·m
- Dimensions: 1.874 in (47.6 mm) x 1.173 in (29.8 mm) x various lengths as specified
Buy the Multicomp Series HGBJ5010 Rectifier: 1000V 50A Three-Phase Bridge Rectifier
Purchase the Multicomp Series HGBJ5010 three-phase bridge rectifier online today and enjoy reliable performance in power supply, PWM input rectification, and motor control applications. This high-quality device offers a maximum rectified current of 50A, peak surge current of 450A, and insulation voltage of 2,500V, making it suitable for demanding industrial systems. Its compact design, low forward voltage drop, and high thermal conductivity ensure excellent thermal management and durability, providing a long-lasting solution for professional electronic and electrical systems. Buy now for trusted quality.
Get Multicomp Series HGBJ5010 high-reliability three-phase bridge rectifier today—built for robust electrical performance and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO HGBJ5010?
You can click on the BUY or RFQ button to purchase HGBJ5010 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part HGBJ5010?
You can download the HGBJ5010 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of HGBJ5010?
MULTICOMP PRO
