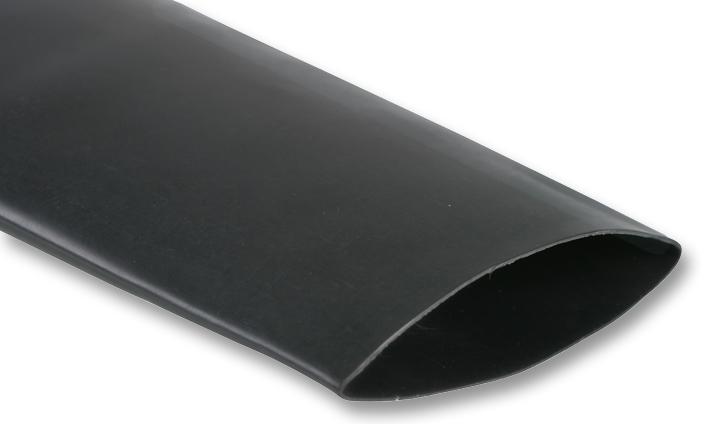

MULTICOMP PRO HS408 Heatshrink Tubing
The adhesive-lined heat shrink tubing provides excellent insulation and sealing for automotive wires, bundled cables, and metal tubing. Manufactured by co-extrusion of polyolefin and hot-melt adhesive, it offers high shrink ratios of 3:1 and 4:1, suitable for water and moisture protection. Operating between -55°C to +125°C, it features UL224 approval, 125°C rating, and VW-1 flammability standard. Its high tensile strength of 10.4 MPa, dielectric strength of 20 kV/mm, and corrosion resistance make it perfect for demanding electrical and mechanical protection applications. The tubing is available in black with other colors upon request.
MULTICOMP PRO HS408 Heatshrink Tubing Specifications:
- Operating Temperature: -55°C to +125°C
- Shrink Temperature: 70°C
- Shrink Ratio: 3:1 and 4:1
- Flammability: UL224, VW-1
- Voltage Rating: 600V
- Approval: UL224, VW-1
- Colors: Black (other colors available on request)
- Tensile Strength: 10.4 MPa
- Ultimate Elongation: 30%
- Dielectric Strength: 20 kV/mm
- Volume Resistivity: 1x 10^4 Q-cm
- Copper Stability: Pass
- Corrosion Resistance: No corrosion
- Dimensions: After recovery, OD varies from 3.6 mm to 51.9 mm depending on size, thickness around 0.35 mm to 0.7 mm, adhesive thickness varies from 0.35 mm to 0.7 mm
- Manufactured by co-extrusion of polyolefin and hot-melt adhesive, designed for insulation and sealing purposes, suitable for repairing damaged cable jackets and moisture protection
Buy the Buy DrO-POWER Heatshrink Part Number HS408 Online
Enhance your electrical and mechanical protection with DrO-POWER Heatshrink Tubing. Featuring high shrink ratios of 3:1 and 4:1, this adhesive-lined polyolefin tubing offers excellent insulation, water resistance, and sealing capabilities. Suitable for automotive wiring, bundled cables, and metal tubes, it operates from -55°C to +125°C and meets UL224 standards. Its high tensile strength, dielectric properties, and corrosion resistance ensure long-lasting performance. Available in black, with other colors upon request, it guarantees dependable protection and easy repair of damaged cable jackets. Buy online now for quick delivery and quality assurance.
Order your DrO-POWER SeriesHS408 adhesive-lined heat shrink tubing today and ensure reliable insulation and sealing for your electrical projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO HS408?
You can click on the BUY or RFQ button to purchase HS408 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part HS408?
You can download the HS408 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of HS408?
MULTICOMP PRO
