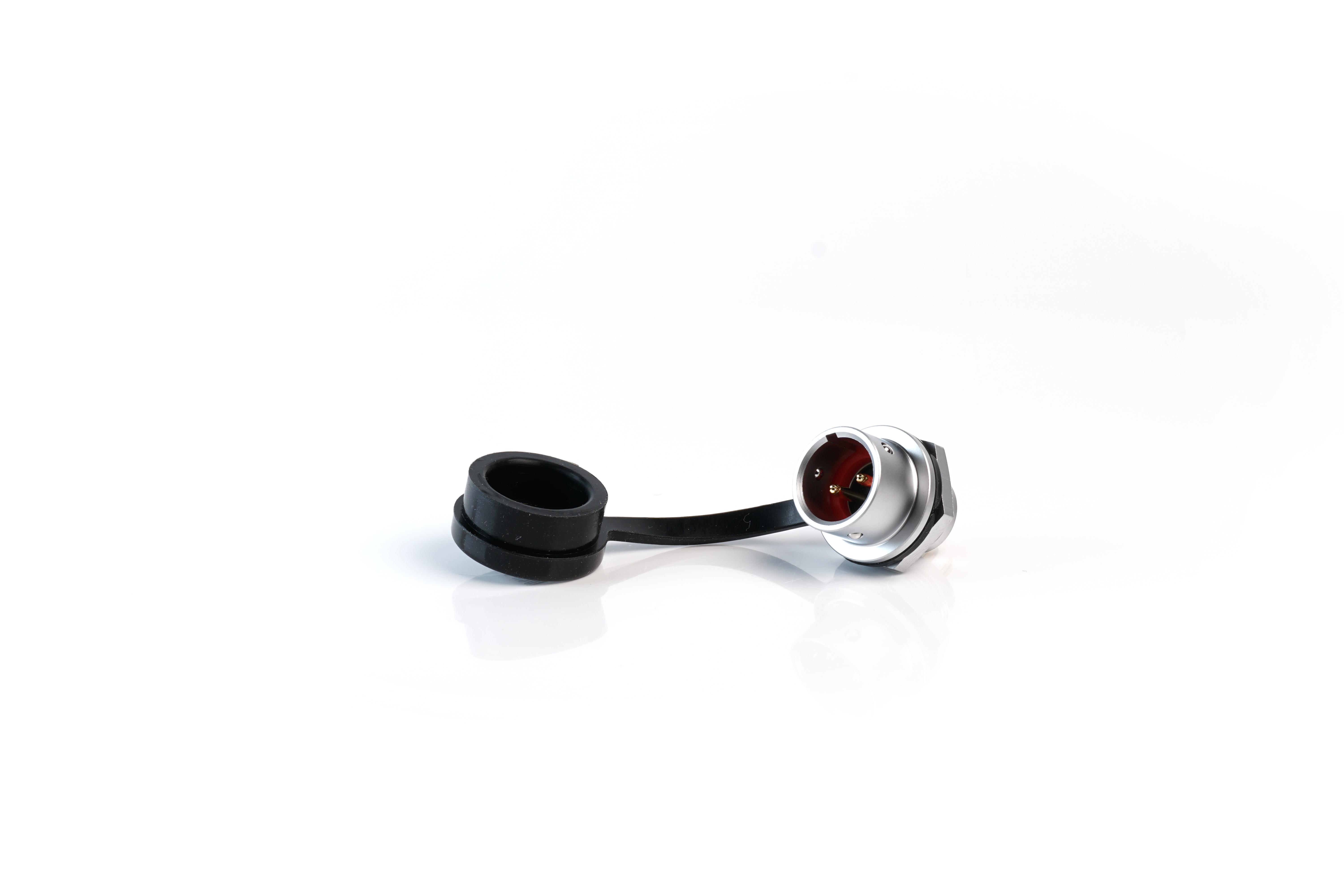

MULTICOMP PRO MP002747 M12 Push-Pull Connector
The MP M12 push-pull connectors are highly durable, featuring a chrome-plated brass shell suitable for harsh environments. They offer versatile connection options with panel, cable, and inline configurations, supporting quick coupling and disconnection. Their IP67 rating ensures weatherproof performance for indoor and outdoor applications. Designed with solder contacts and a 12mm panel cut-out, these connectors support 2, 4, 5, and 7 pole configurations, ideal for automation, medical devices, security, testing, and industrial automation. They ensure reliable, fast, and secure electrical connections in demanding environments.
MULTICOMP PRO MP002747 M12 Push-Pull Connector Specifications:
- Shell Material: Brass with chrome plating
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Number of Contacts: 2, 4, 5, 7
- Rated Current: 13 A for 2 contact, 5 A for 4, 5, 7 contacts
- Contact Diameter: 1.6 mm for 2 contact, 1 mm for others
- Rated Voltage: 250 V AC for 2 contacts, 200 V for 4, 180 V for 5, 125 V for 7
- Test Voltage: 1500 V for 2, 1500 V for 4, 1000 V for 5 and 7
- Contact Resistance: 2.5 mΩ for 2, 5 mΩ for others
- Wire Size: 0.75/18 AWG
- Operating Temperature: -40°C to +85°C
- Mounting Types: Panel, cable, inline cable mount
- Dimensions: Suitable for 12mm panel cut-out, cable outer diameter 4mm to 6.5mm/SM to 8mm
Buy the Multicomp Series M12 Push-Pull Connector: MP002747
Purchase your Multicomp Series M12 Push-Pull Connector MP002747 online and enjoy fast shipping. Engineered with durable brass construction and a weatherproof IP67 rating, these connectors provide secure, quick connections for industrial automation, medical devices, security systems, and outdoor environments. Featuring versatile mounting options and multiple pole configurations, they deliver high reliability and easy deployment in demanding applications. Simply select your preferred configuration and enjoy seamless integration into your projects, backed by quality and trusted by professionals worldwide.
Order your Multicomp Series M12 Push-Pull Connector MP002747 today and ensure reliable, quick-connect solutions for industrial automation and outdoor applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002747?
You can click on the BUY or RFQ button to purchase MP002747 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002747?
You can download the MP002747 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002747?
MULTICOMP PRO
