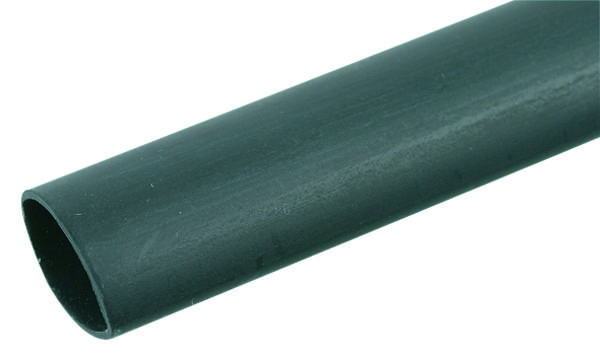

MULTICOMP PRO HS510122M Heat Shrink Tubing
This flexible, flame-retardant heat-shrink tubing is made from polyolefin and manufactured to the AMS-DTL-23053/5 Class 1 standard. It offers excellent wear resistance and a high shrink ratio of 3:1, making it suitable for use on difficult or irregular shapes. The tubing operates within a temperature range of -55°C to 125°C, with a minimum shrunk temperature of 70°C and a full recovery temperature of 120°C. Its color is black, and it meets the Sony-SS-00259 standard. Ideal for industrial applications, this product is rated 4.5 out of 5 stars by Pro Power, includes a 12-month limited warranty, and has a 96% customer recommendation rate.
MULTICOMP PRO HS510122M Heat Shrink Tubing Specifications:
- Material: Polyolefin, halogen-free, flame-retardant
- Shrink Ratio: 3:1
- Operating Temperature: -55°C to +125°C
- Minimum Shrink Temperature: 70°C
- Full Recovery Temperature: 120°C
- Color: Black
- Standard: AMS-DTL-23053/5 Class 1
- Tensile Strength: 210.4 MPa
- Ultimate Elongation: 2200%
- Longitudinal Shrinkage: 45%
- Dielectric Strength: 215 kV/mm
- Volume Resistivity: 21 x 10^14 Ω·cm
- Heat Shock Resistance: 250°C for 4 hrs (no cracking)
- Flammability: FMVSS302 pass
- Copper Stability: Pass
- Copper Corrosion: No corrosion
- Size: 1/8 inch (3 mm), 3/16 inch (4.5 mm), 1/4 inch (6 mm), 1/2 inch (12 mm), 3/8 inch (9 mm), 1 inch (24 mm), 1-1/2 inch (39 mm)
- Length Options: 1.22 m and 5 m
Buy the Buy DrO-POWER Heat Shrink Tubing Part Number HS510122M Online
Order DrO-POWER heat shrink tubing today to ensure excellent wire protection, flexibility, and reliable electrical insulation. Perfect for industrial wiring, it shrinks uniformly at lower temperatures, offering a 3:1 ratio. Designed from halogen-free polyolefin, it resists high temperatures up to 125°C and provides excellent mechanical and electrical performance. Available in multiple sizes with lengths of 1.22 meters or 5 meters, this tubing is ideal for protecting cables, wires, and connectors in demanding environments. Get yours online now and enjoy fast shipping and dependable quality.
Buy DrO-POWER HS510122M now and experience unmatched reliability and performance in wire insulation and protection.
Frequently Asked Questions
Where can I buy MULTICOMP PRO HS510122M?
You can click on the BUY or RFQ button to purchase HS510122M from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part HS510122M?
You can download the HS510122M datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of HS510122M?
MULTICOMP PRO
