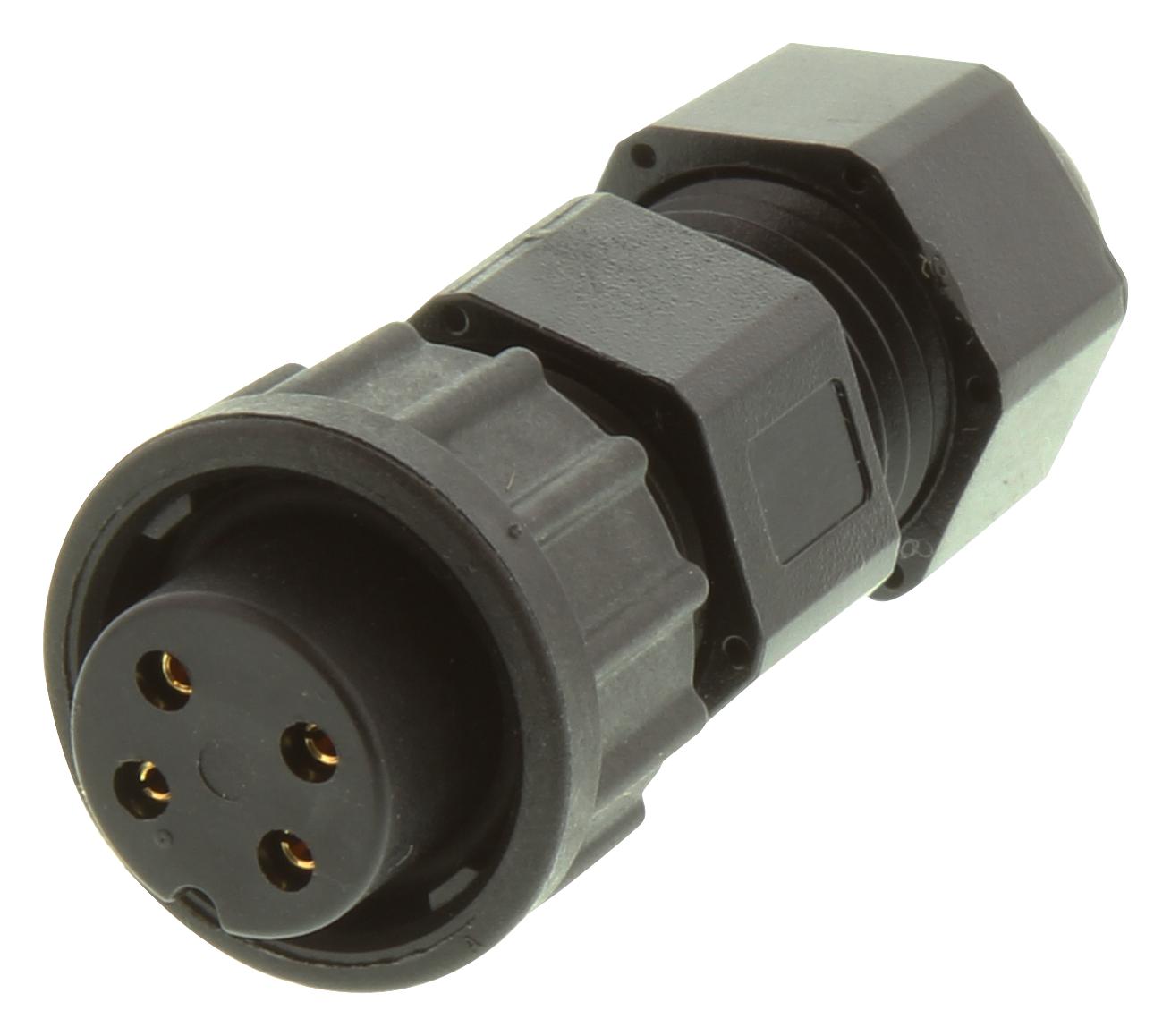

MULTICOMP-PRO 2CT3032W044A0 industrial connector
The 2CT3032-W044A0 from MultiComp is a four-way, 10A field wiring female connector with solder pin termination. It features an IP67-rated circular in-line design with a lock-type mating mechanism. Made from nylon with glass fiber reinforcement and polybutylene terephthalate, it offers reliable performance. The contact resistance is less than or equal to 30 milliohms, and insulation resistance is at least 100 megaohms at 500V DC. It withstands up to 500 mating cycles, operates from -40°C to +100°C, and uses gold-plated copper alloy pins for corrosion resistance, tested with a 48-hour salt spray. Compatible with 18-20AWG wires, suitable for industrial applications, providing durability and secure connections.
MULTICOMP-PRO 2CT3032W044A0 industrial connector Specifications:
- Current Rating: 10A
- Mating Style: Lock Type
- Contact Gender: Female pin
- Material Contact: Copper Alloy, Gold Plated
- Material Connector Body: Nylon+GF, PBT
- Contact Resistance: ≤30mΩ
- Insulation Resistance: ≥100MΩ at 500V DC
- Durability: 500 cycles Min.
- Breakdown Voltage: BAC 500V/1 minute
- Salt Spray Resistance: 48 hours
- Temperature Range: -40°C to +100°C
- Waterproof Rate: IP67 (immersed in 1m water for 24 hrs)
Buy the Buy MultiComp Female Connector Part Number 2CT3032-W044A0 Online
Experience reliable industrial wiring with the MultiComp female connector, featuring IP67 waterproof rating, gold-plated contacts, and long-lasting durability. Designed for 10A applications, it supports 18-20AWG wires and withstands up to 500 mating cycles. Perfect for challenging environments, it operates between -40°C and +100°C, ensuring performance in extreme conditions. Trust this connector for secure, corrosion-resistant, and efficient connections in automation, control panels, and industrial machinery, streamlining assembly and maintaining safety standards.
Get MultiComp 2CT3032-W044A0 today—built for secure connections, durability, and reliable industrial wiring.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 2CT3032W044A0?
You can click on the BUY or RFQ button to purchase 2CT3032W044A0 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 2CT3032W044A0?
You can download the 2CT3032W044A0 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 2CT3032W044A0?
MULTICOMP-PRO
