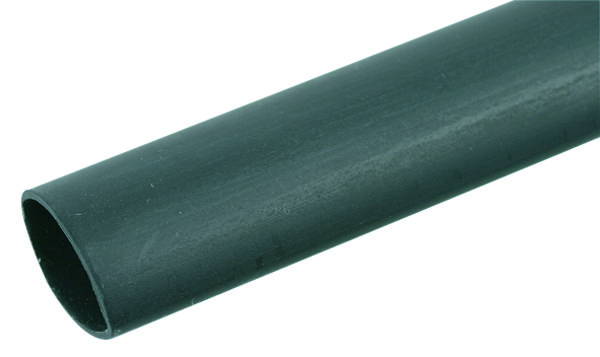

MULTICOMP-PRO HS515122M Heat Shink Tubing
This flexible, flame-retardant heat-shrink tubing made of halogen-free polyolefin complies with AMS-DTL-23053/5 Class 1 standards. It features a 3:1 shrink ratio, excellent mechanical and electrical performance, and operates from -55°C to +125°C with a full recovery at 120°C. Suitable for shaping around irregular surfaces and protecting temperature-sensitive components like wires and cables, it is ideal for industrial use. The tubing is black, offers high shrinkage and wear resistance, and meets Sony-SS-00259 standards, providing reliable electrical insulation and mechanical protection.
MULTICOMP-PRO HS515122M Heat Shink Tubing Specifications:
- Material: Modified radiation cross-linked polyolefin
- Color: Black
- Shrink Ratio: 3:1
- Operating Temperature Range: -55°C to +125°C
- Minimum Shrink Temperature: +70°C
- Full Recovery Temperature: +120°C
- Tensile Strength: 210.4 MPa (ASTM D 2671)
- Ultimate Elongation: 2200%
- Longitudinal Shrinkage: 45%
- Dielectric Strength: 215kV/mm (ASTM D150)
- Volume Resistivity: 21 x 10^14 Ocm (ASTM D2671)
- Flammability: Meets FMVSS302
- Heat Shock Resistance: No cracking or dripping at 250°C for 4 hours
- Tensile Strength after Heat Aging: 158°C, 168 hours, 100%
- Copper Stability and Corrosion Resistance: Pass (UL224)
Buy the Buy DrO-POWER Heat Shrink Tubing Part Number HS515122M Online
Order DrO-POWER HS515122M heat-shrink tubing online today and benefit from fast delivery, trusted quality, and competitive prices. Perfect for protecting wires and cables in demanding environments, this versatile polyolefin tubing offers a 3:1 shrink ratio and operates within -55°C to +125°C. Its flame-retardant properties, excellent mechanical durability, and compliance with industry standards make it an essential component for industrial wiring or electrical insulation tasks. Experience ease of installation with quick shrinking at 120°C, ensuring thorough and reliable coverage.
Buy DrO-POWER HS515122M heat-shrink tubing now and enjoy reliable insulation, superior flexibility, and excellent electrical performance in your industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO HS515122M?
You can click on the BUY or RFQ button to purchase HS515122M from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part HS515122M?
You can download the HS515122M datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of HS515122M?
MULTICOMP-PRO
