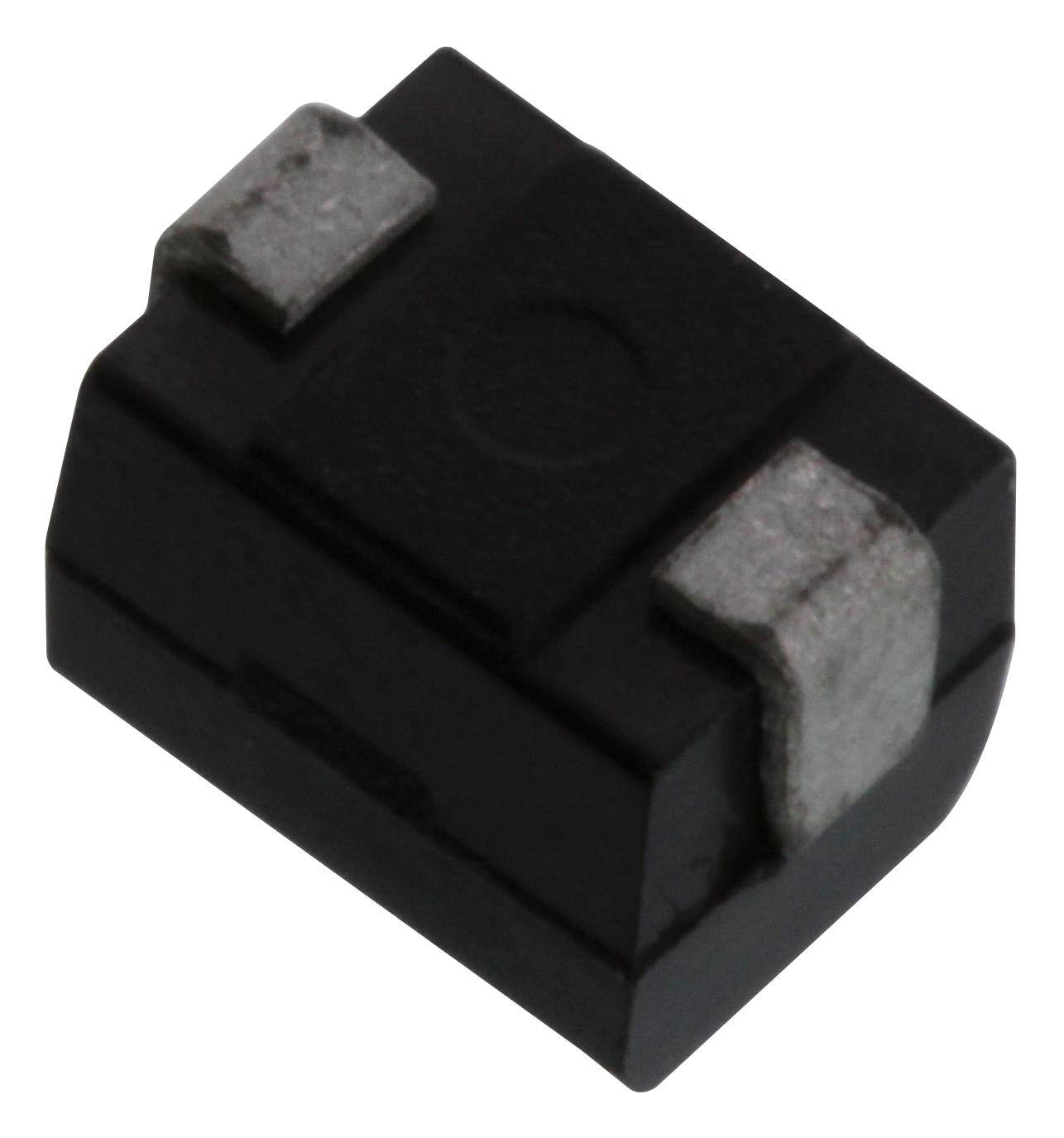

MULTICOMP PRO MCFT000212 Ferrite Chip Inductor
The Wire Wound Chip Inductor is a ferrite core component designed for high reliability and performance in various electronic applications. It features RoHS compliance, excellent solderability by flow, soldering iron, or wave soldering, and highly precise dimensions suitable for automatic mounting. The inductor's terminals resist pull forces, mechanical shocks, and pressure, ensuring durability. Built with a molded resin, tinned copper wire electrode, ferrite core, and magnet wire, it offers super Q characteristics. Ideal for use in micro televisions, liquid crystal displays, video cameras, portable VCRs, car radios, stereos, thin tape radios, television tuners, and mobile phones, this component is essential for stable electronic circuits.
MULTICOMP PRO MCFT000212 Ferrite Chip Inductor Specifications:
- Core Material: Ferrite
- Construction: Molded resin, Tinned copper wire electrode, Magnet wire
- RoHS Compliant
- Solderability: Very strong via flow, iron, wave soldering
- Terminals: Resistant to pull forces and mechanical shocks
- Dimensions: Precise, can be mounted automatically
- Operating Temperature: -40°C to +85°C
- Storage Temperature: 25±3°C, Humidity: <80% RH
- Inductance Range: 0.15μH to 47μH (varies by part number)
- Q Factor: High Q characteristics
- Impedance: Varies according to inductance and frequency
- Test Frequency: 25.2 MHz or 7.96 MHz depending on type
- Rated Current: Up to 1,100mA depending on model
- SRF: Up to 900 MHz
- Resistance (DCR): Ranges from 0.18Ω to 0.45Ω
- Dimensions (mm): Length varies from 1.45 to 4.7, width from 0.65 to 3.5, height from 0.44 to 1.45
- Packaging: Reels of 2,000 units, with embossed plastic tape
- Reflow Soldering Temp: Max 265°C, cycle limit 3 times
- Environmental Testing: Vibration, temperature cycling, damp heat, with no damage or performance change
Buy the Buy Multicomp Ferrite Chip Inductor Part Number MCFT000212 Online
Order the Multicomp ferrite chip inductor MCFT000212 online now to ensure high reliability and accuracy in your electronic projects. Designed with RoHS compliance, strong terminals resistant to pulling forces, and excellent solderability, this component offers super Q characteristics suitable for various applications such as mobile phones, TVs, and audio devices. With precise dimensions for automatic mounting, it withstands mechanical shocks and pressure, making it ideal for demanding environments. Purchase today from trusted distributors and enjoy fast delivery of this high-quality inductor essential for maintaining optimal circuit performance.
Get Multicomp Ferrite Chip Inductor MCFT000212 today—built for precision and long-lasting durability in electronic circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCFT000212?
You can click on the BUY or RFQ button to purchase MCFT000212 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCFT000212?
You can download the MCFT000212 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCFT000212?
MULTICOMP PRO
