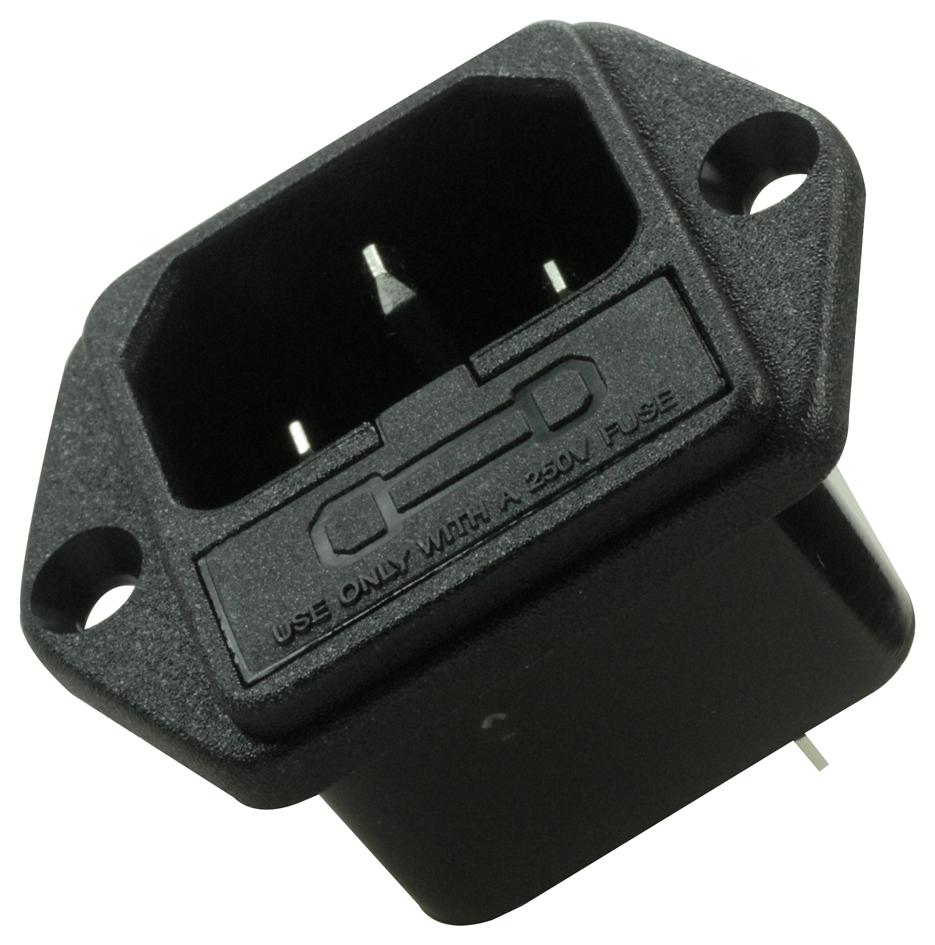

MULTICOMP PRO JR1011F Fused IEC Inlet
This fused IEC inlet features a rugged panel-mount design rated for 6.3A/2.5W at 250V AC, with withstand voltage of 2,000V AC for 1 minute and insulation resistance exceeding 100MQ at 500V DC. The device operates between -25°C to +85°C and includes solder or push-on contact termination methods, with a panel cutout depth of 27mm. Its compact size and robust nylon construction ensure reliable performance in power supplies, industrial equipment, and electronic devices, offering safe and secure connections in demanding environments.
MULTICOMP PRO JR1011F Fused IEC Inlet Specifications:
- Rating: 6.3A/2.5W at 250V AC
- Withstand Voltage: 2,000V AC 1 minute
- Insulation Resistance: More than 100MQ at 500V DC
- Operating Temperature: -25°C to +85°C
- Gender: Plug
- Voltage Rating: 250V AC
- Connector Mounting: Panel
- Contact Termination: Solder / Push-On
- Panel Cut-out Depth: 27mm
- Panel Cutout Width: 27.0mm
- Dimensions: Millimetres
- Material: Nylon #66
- Fuse Cover Material: Nylon #66
- Terminal Types: Edge Terminal, Centre Terminal
- Fuse Holder: Short or Long versions, 1 or 2 fuse slots
- Connector: IEC, Fused, Panel Mount
Buy the Buy multicomp IEC Inlet Fused Part Number JR1011F Online
Discover the high-quality fused IEC inlet with robust nylon construction rated for 6.3A and 250V AC, suitable for power supplies and industrial applications. It features solder and push-on terminals with a panel mount design and a compact 27mm depth. The device withstands voltage up to 2,000V AC for 1 minute, ensuring safety and durability in demanding environments. Easy to install with 27mm panel cutout, making it ideal for electronics, automation, and industrial equipment that require secure and reliable power connections.
Buy multicomp JR1011F fused IEC inlet now and ensure safe, reliable power connections for industrial and electronic equipment.
Frequently Asked Questions
Where can I buy MULTICOMP PRO JR1011F?
You can click on the BUY or RFQ button to purchase JR1011F from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part JR1011F?
You can download the JR1011F datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of JR1011F?
MULTICOMP PRO
