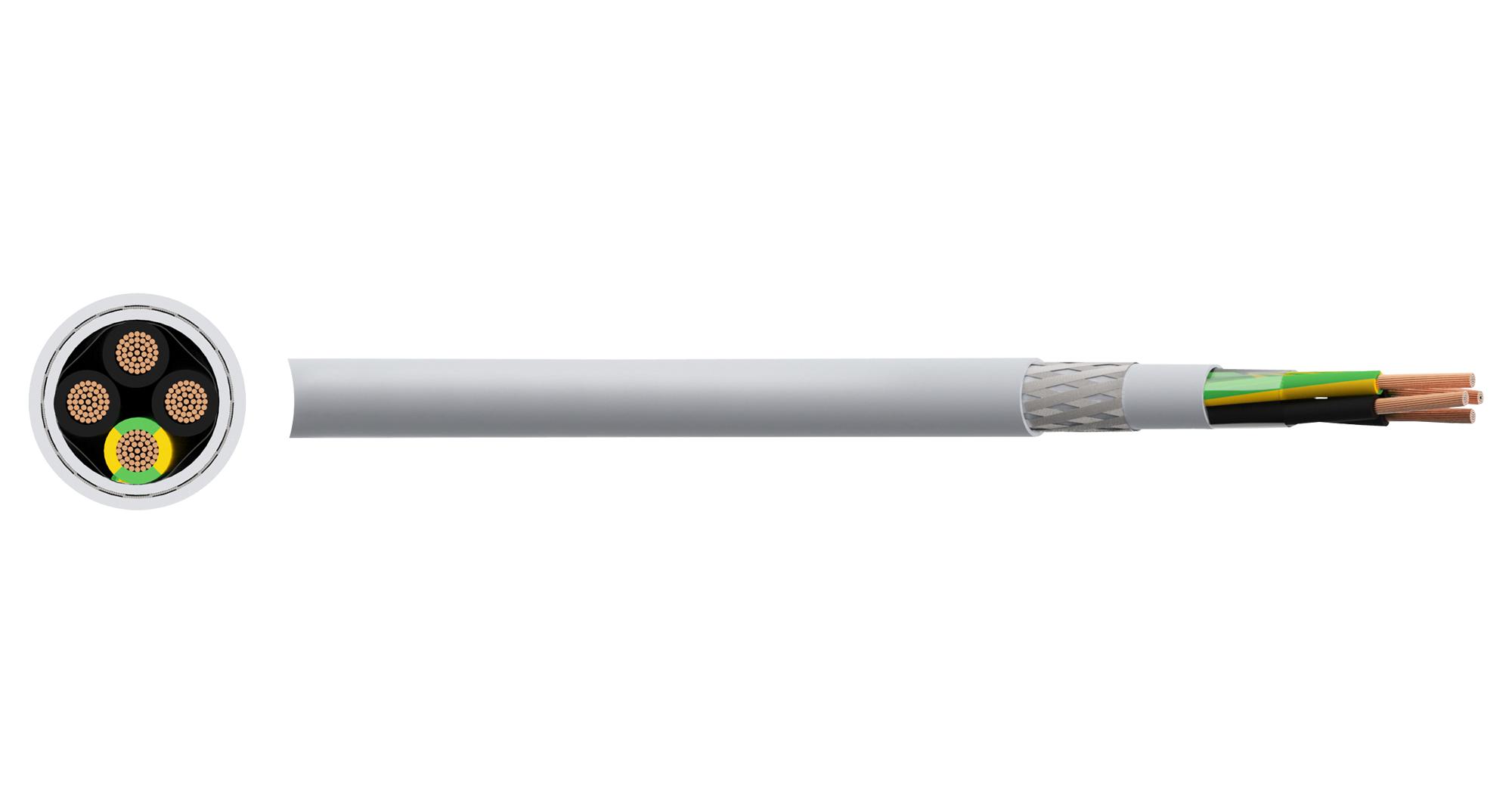

MULTICOMP-PRO PP001534 Multicore Control Cable
This flexible screened bedding cable features LSZH (Low Smoke Zero Halogen) construction with multicore design, ideal for machinery, instrumentation, and control equipment. It offers high flexibility, mechanical protection, and external interference shielding through tinned copper wire braid. Rated for 300/500V and tested up to 2kV, it operates in temperatures from -40°C to +80°C, with a minimum bending radius of 6x to 15x overall diameter depending on configuration. Compliant with RoHS, IEC flame retardant, low smoke density, suitable for dry, moist, and wet environments, but not outdoor or underground. Certified under various international standards, ensuring safety and durability in industrial applications.
MULTICOMP-PRO PP001534 Multicore Control Cable Specifications:
- Voltage Rating: 300/500V
- Test Voltage: 2kV
- Temperature Rating: Fixed -40°C to +80°C, Flexed -15°C to +70°C
- Minimum Bending Radius: Fixed 6 x overall diameter, Moved 15 x overall diameter
- Conductor: Class 5 flexible plain copper wires
- Insulation: LSZH (Low Smoke Zero Halogen)
- Screen: Tinned Copper Wire Braid
- Sheath: LSZH (Low Smoke Zero Halogen)
- Core Identification: Black with white number, or green/yellow for ground
- Sheath Colour: Grey
Buy the Buy Multicomp LSZH Multicore Cable Part Number PP001534 Online
Purchase the Multicomp LSZH multicore control cable online for reliable performance in machinery, instrumentation, and automation. Made with low smoke zero halogen materials, it conforms to international safety standards. Perfect for use in dry, moist, and wet environments, providing excellent mechanical protection, shielding against external interference, and flexibility for free movement without tensile strain. The cable's robust construction ensures safety, durability, and compliance with RoHS, IEC flame retardant, and other regulatory standards, making it your ideal choice for industrial control and automation wiring needs.
Get Multicomp LSZH Multicore Cable PP001534 today—designed for safety, flexibility, and durability in industrial control applications.
