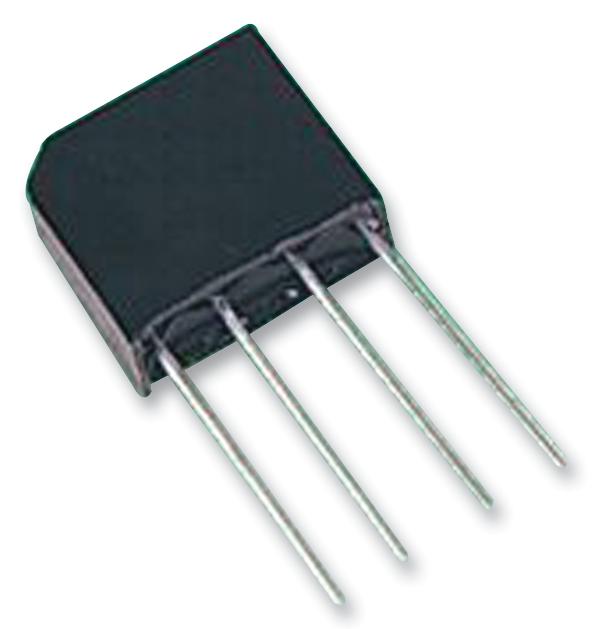

MULTICOMP PRO KBL01G Bridge Rectifier
The bridge rectifier provides a reliable solution for converting alternating current (AC) to direct current (DC) in various industrial applications. With a surge overload rating of 125 Amperes peak and a maximum reverse voltage of 100 volts, it is ideal for power supply circuits and PCB mounting. Its glass-passivated junction ensures high durability, while the plastic material with UL 94V-0 flammability classification offers safety and flame resistance. Suitable for operations up to 150°C, it features a low forward voltage drop of 1.1V at 4A, ensuring efficient performance across a broad temperature range.
MULTICOMP PRO KBL01G Bridge Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage: 100V
- Maximum RMS Bridge Input Voltage: 70V
- Maximum DC Blocking Voltage: 100V
- Peak Forward Surge Current: 125A
- Max. Forward Voltage Drop at 4A: 1.1V
- Maximum DC Reverse Current at rated voltage: 10A
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Mounting Position: Any
- Dimensions: 0.750 inches (19.0 mm) length, 0.220 inches (5.6 mm) width, 0.052 inches (1.3 mm) diameter pin
- Material: Glass-passivated junction, plastic UL 94V-0
- Reverse Voltage Range: 100 to 200 Volts
- Forward Current: 4 Amperes
Buy the Multicomp Pro KBL01G – Reliable Bridge Rectifier for Industrial Applications
Order the Multicomp Pro KBL01G bridge rectifier online today and enhance your power management systems with a highly durable, efficient, and safe component. Designed for versatile industrial applications, this 4A, 100V rectifier features glass passivation for longevity, high surge capacity, and UL 94V-0 safety classification. Its compact size and mounting flexibility make it perfect for PCB integration in power supplies, control circuits, and automation systems. Ensure reliable operation and seamless integration by purchasing this high-quality bridge rectifier online, available now for fast delivery and competitive pricing.
Buy Multicomp Pro KBL01G now and experience unmatched reliability and performance in power rectification for industrial circuits.
